When Skew Should Be Adjusted - 2
In these examples, skew is present. The machine must be
adjusted.

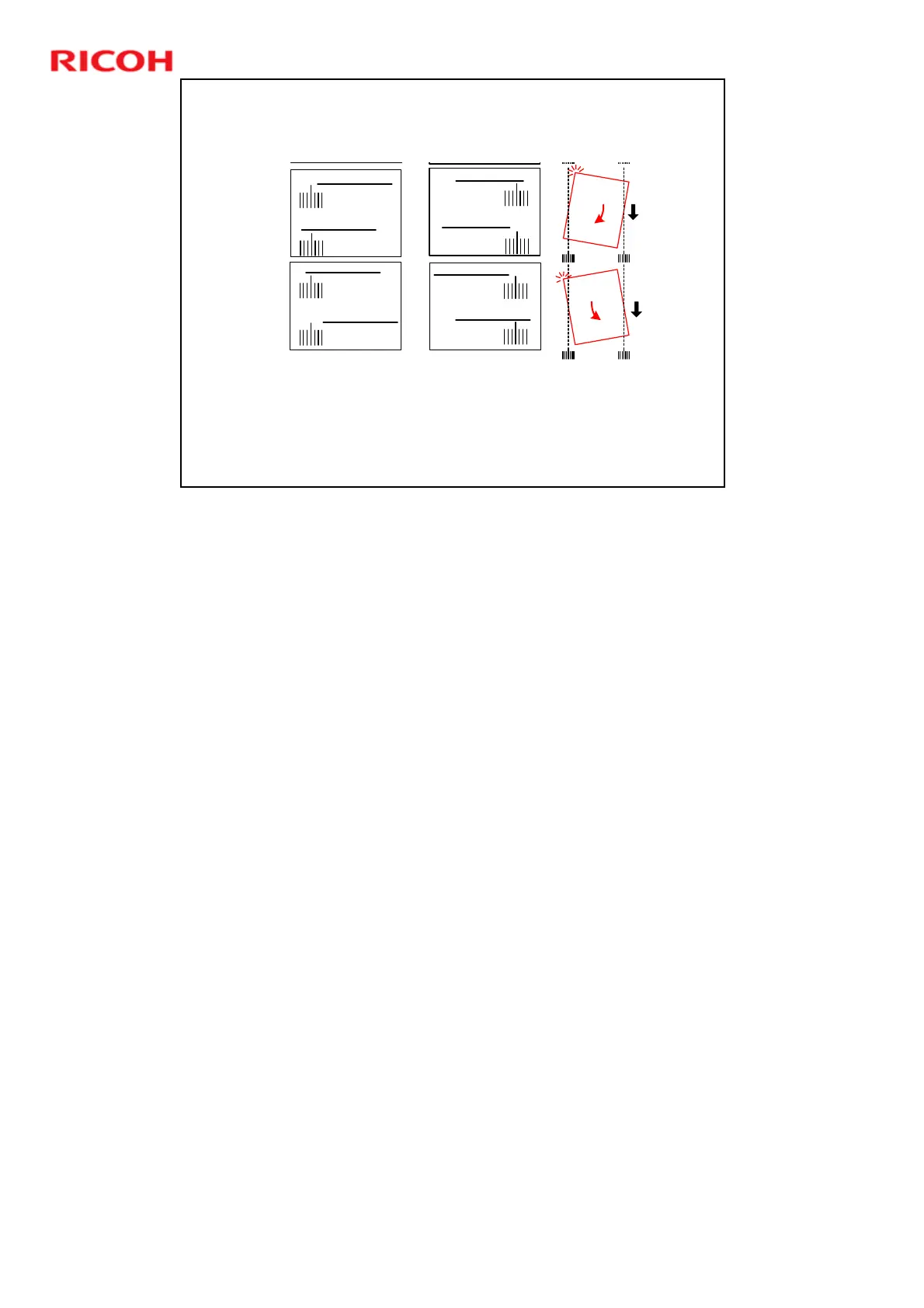

The red diagram on the right shows the type of skew.
The diagram in the middle shows how this type of skew appears
on the A3 scale.
The diagram in the middle shows how this type of skew appears
on the DLT scale.
LE
LE
LE
LE
TE
TE
TE
TE
DLT A3
LE: Leading edge
TE: Trailing edge
To check for skew
Look at the scale when the leading edge comes by and when the trailing edge
comes by. Check where the side edge of the paper is on the scale.
If the side of the paper comes past at the same place on the scale, there is no
skew.
If the difference is more than 2 mm, you should adjust the machine.
