Detailed Summary (5)

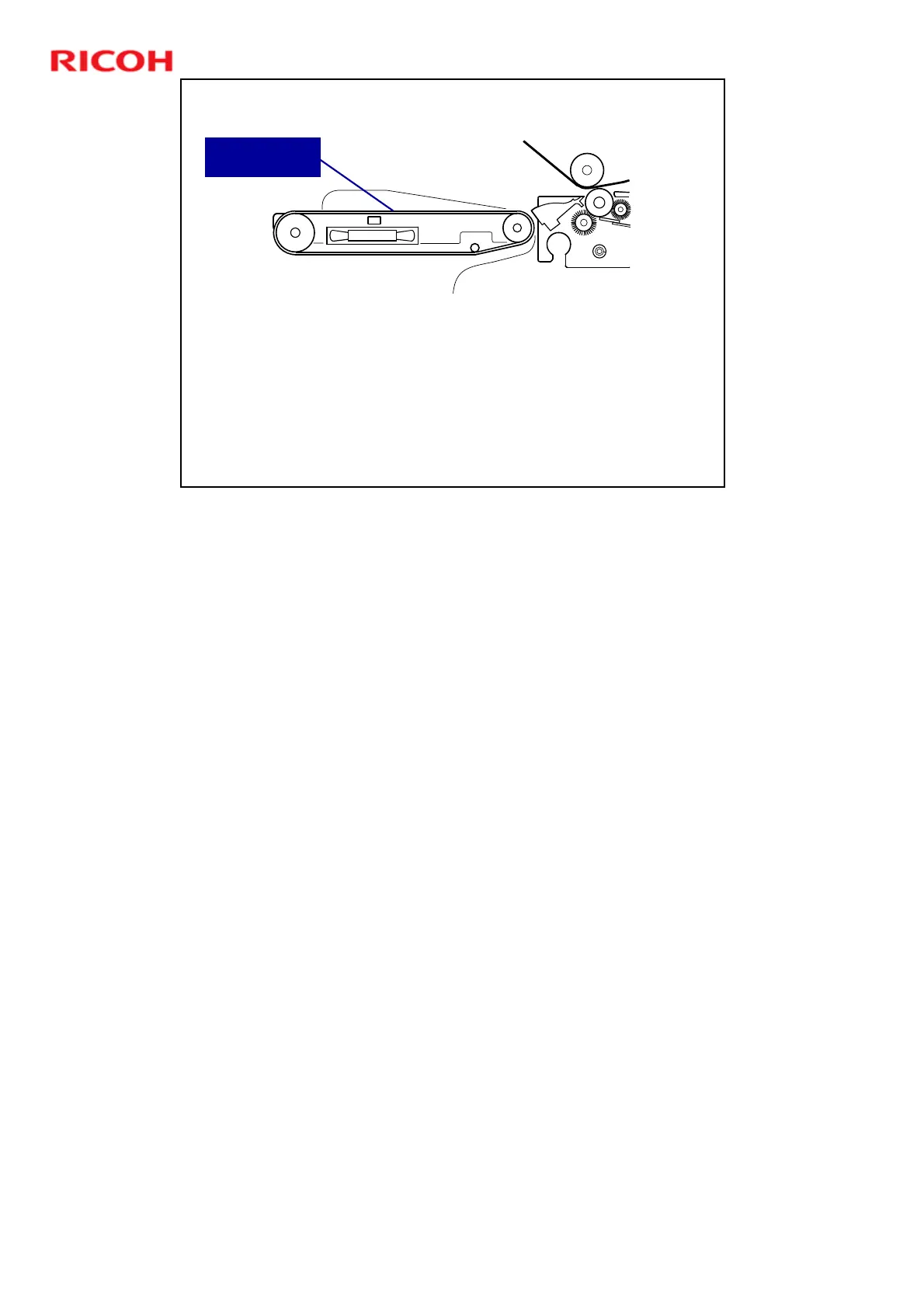

After the paper separates from the ITB the paper is transported to
the fusing unit by the PTB (paper transport belt).
The PTB consists of three perforated rubber belts.
Three suction fans below the perforated belts hold the paper on
the belt.
The toner is not yet fused to the paper, so fans have to be used to
hold the paper on the belt.
Paper
Transport Belt
No additional notes
