Taurus-C1 Training
236
Slide 236

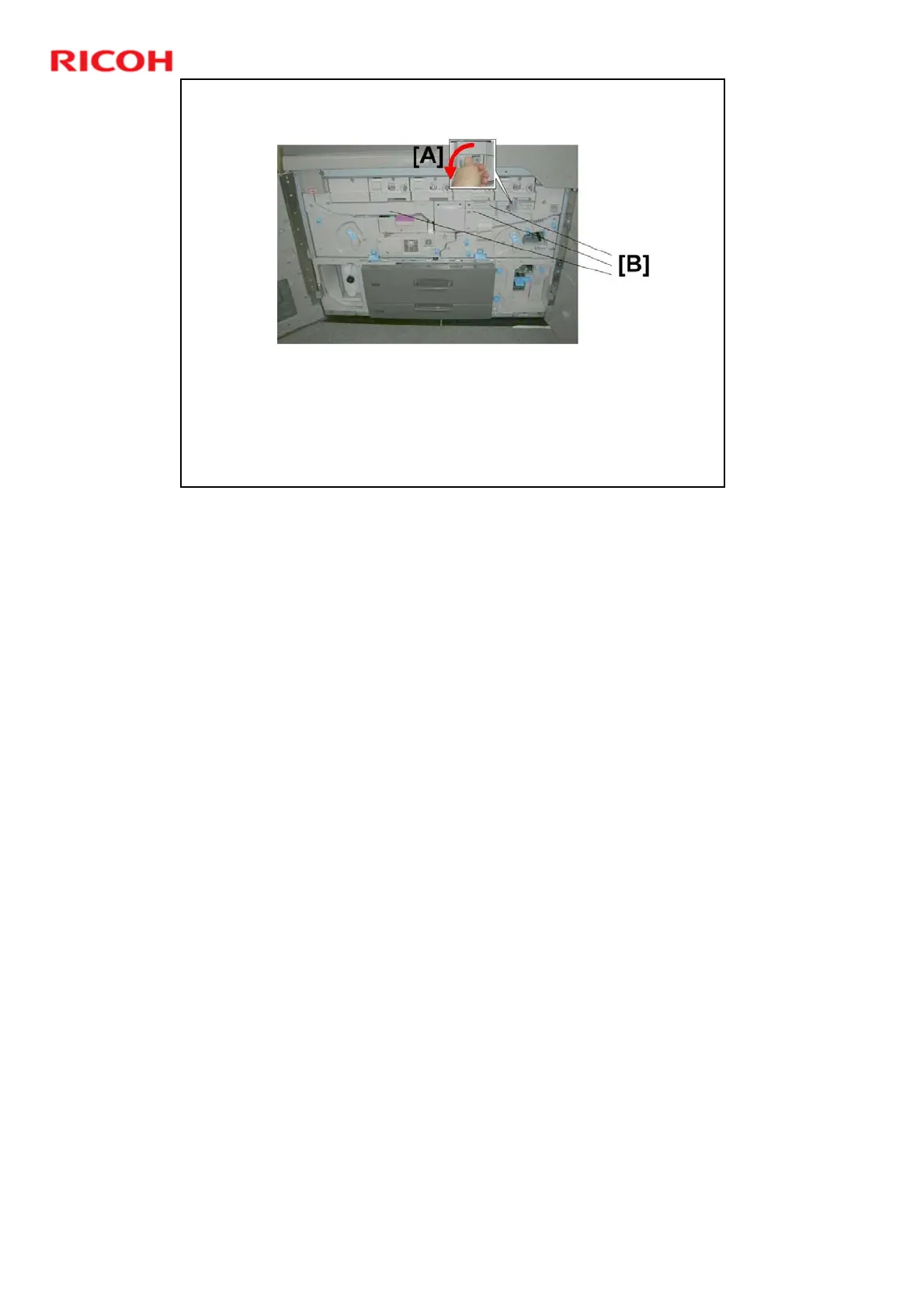

ITB Unit: Removal
Lower the ITB lever [A].
Remove three plates [B].
After you remove the plates, you remove a screw at each side of the ITB unit,
then you can pull it out as shown on the next slide.
For all the details, see the procedure in the service manual.
