Components used during Process Control

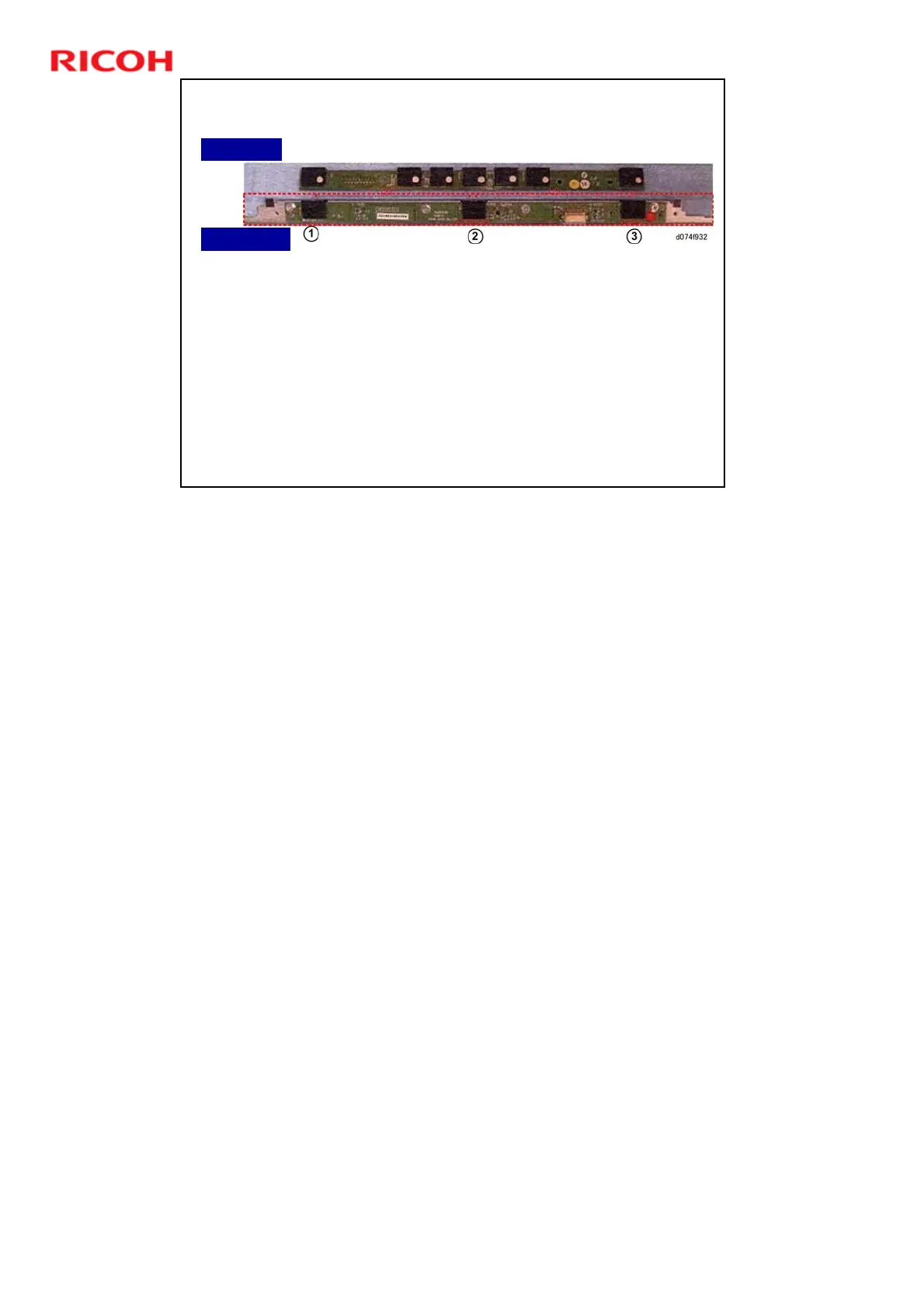

This machine has three ITB sensors (see above). Only the
middle sensor functions as an ID sensor, but all three
sensors are active MUSIC sensors.
Two temperature/humidity sensors are used during
process control.
One is located on the left, below the used toner bottle
motor. The other is on the right near the K_PCDU.
D016 series
Taurus-C1/P1
The number of sensors in the ITB sensor array has been reduced. The D016, for
example, had seven sensors as shown above: three MUSIC sensors and four ID
sensors.
Temperature/humidity sensors: In previous machines, the left sensor was higher
and near the Y_PCDU.
