Cleaning Units: Common Design
One basic cleaning and lubrication mechanism is used in key
components of the machine.

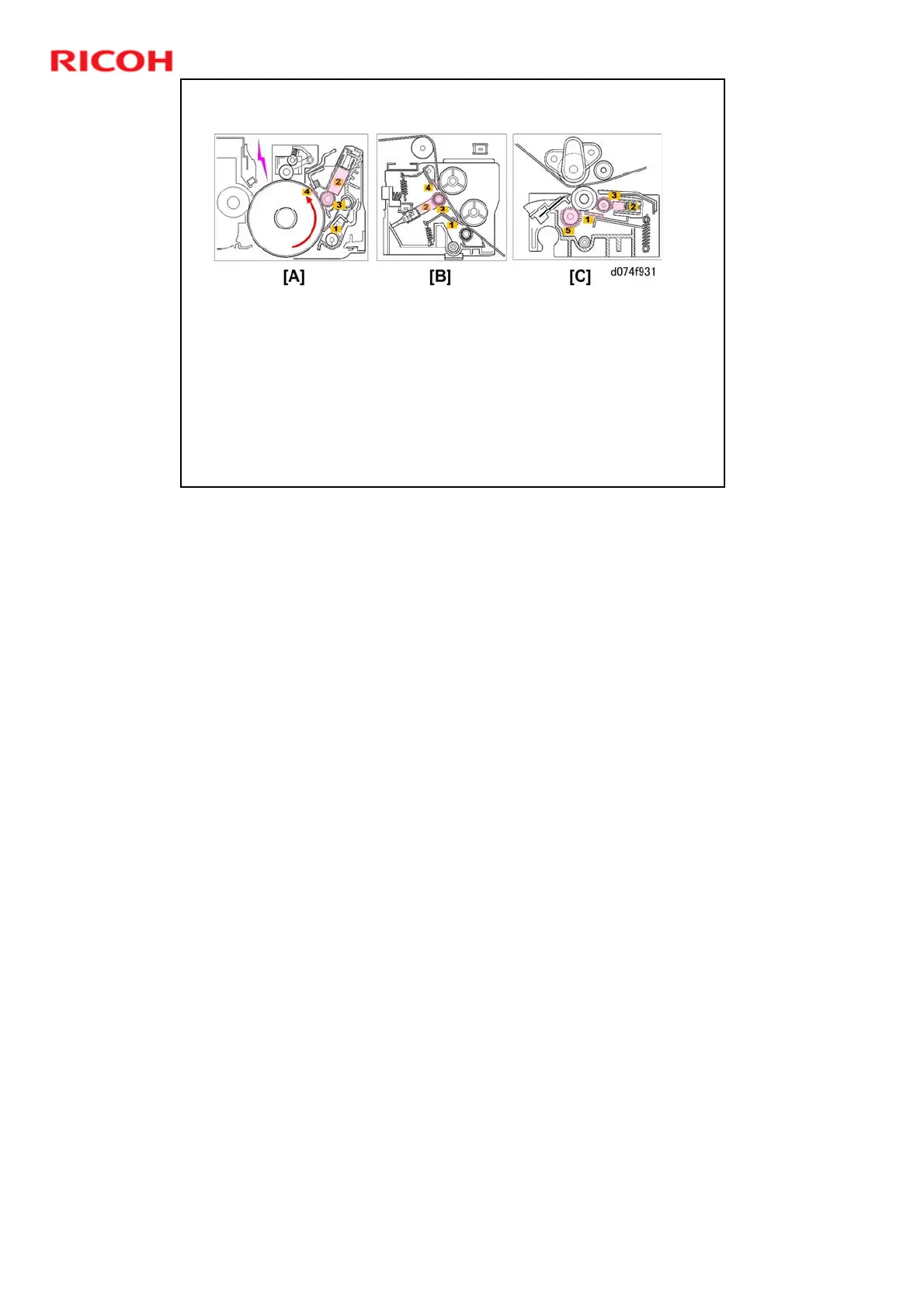

A cleaning blade [1], lubricant roller [2], lubricant bar [3], and lubricant
blade [4] are the cleaning mechanisms (with some variation) in the
following units:
[A] Drum cleaning unit
[B] ITB cleaning unit
[C] PTR cleaning unit
All of these units use a dry lubricant (Zinc Stearate) supplied by a
lubricant bar.
The fusing unit has a web cleaning mechanism to clean the fusing belt.
There is no oil lubrication system for the fusing belt.
The PTR cleaning unit has a cleaning brush roller [5] instead of a blade [4].
