Taurus-C1 Training
62
Slide 62
Image Transfer Unit (2)
This machine uses the same steering control mechanism as the D016.
This mechanism checks and corrects the positioning of the ITB to keep it
centered and prevent color offset in images.

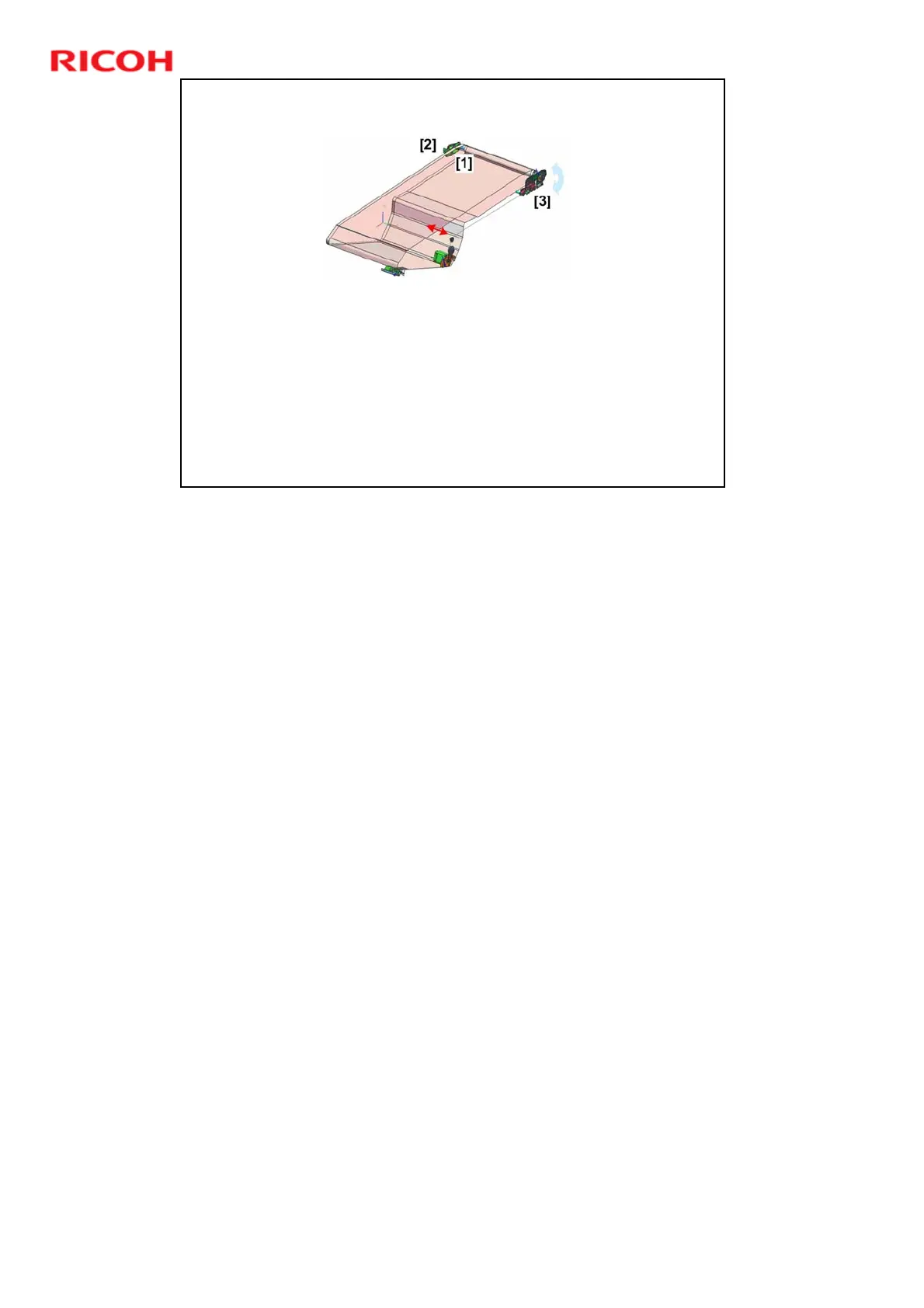

A sensor at the right upper corner [1] of the ITB unit constantly monitors
the position of the ITB.
If the ITB shifts forward or backward, the steering control motor [2]
(located on the left front of the ITB unit) corrects the position of the belt
with the steering control mechanism [3].
This system eliminates physical wear on the edge of the belt that would
be caused by an ITB guide fence.
No additional notes
