Taurus-C1 Training
63
Slide 63
Image Transfer Unit (3)
The location of the ITB sensor array (ID and MUSIC
sensors) has changed.

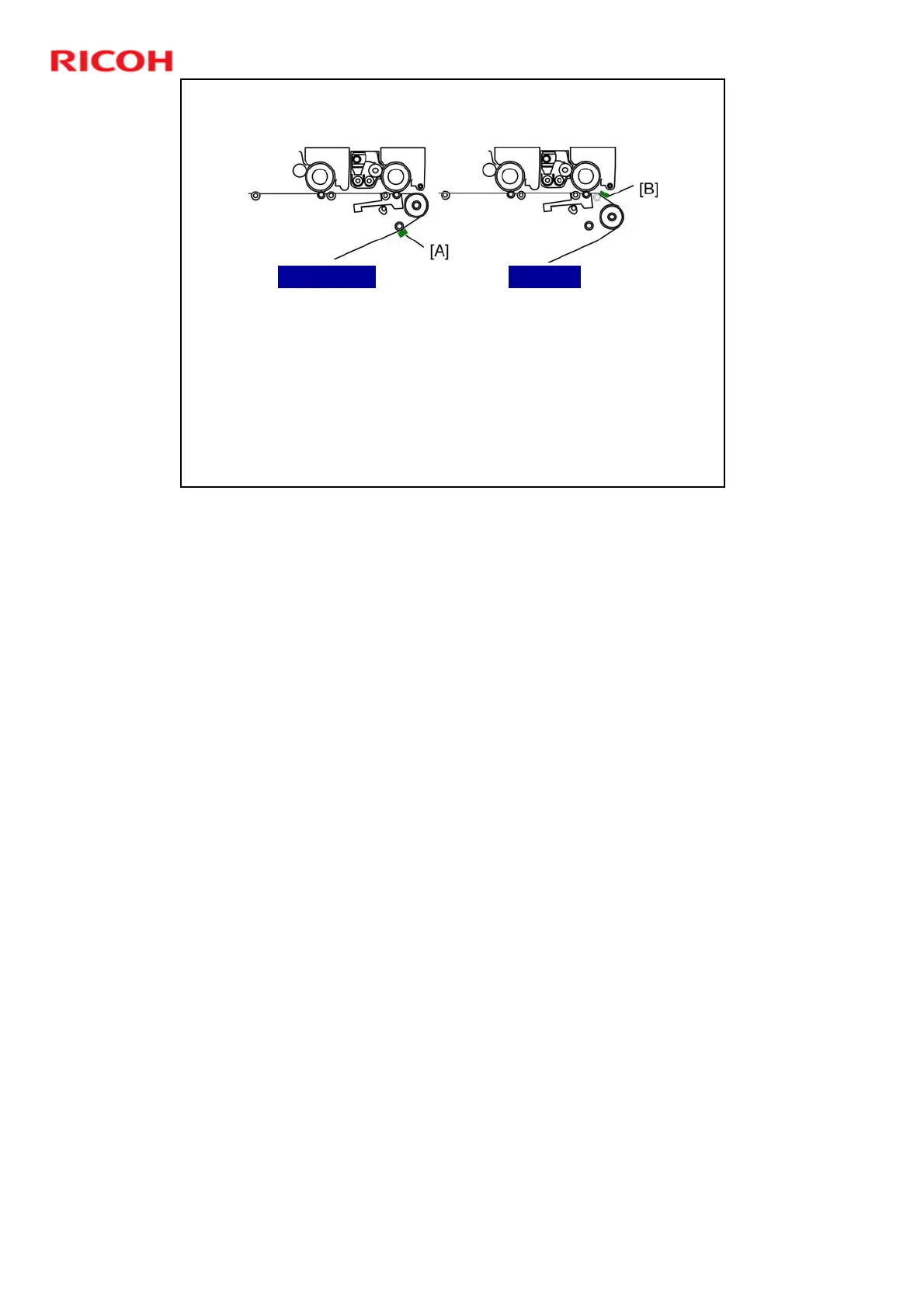

In previous machines, the ITB sensor array [A] is located
farther downstream and below the ITB.
In this machine, the ITB sensor array [B] is located above
the ITB on the right end of the ITB unit below the K_PCDU.
Previous Models This Model
No additional notes
To Next Page
