Taurus-C1 Training
81
Slide 81
LCIT (2)
 There is a new mechanism at the paper exit to retract the
exit idle roller from the paper. This releases the paper for
side-to-side registration in the main machine.

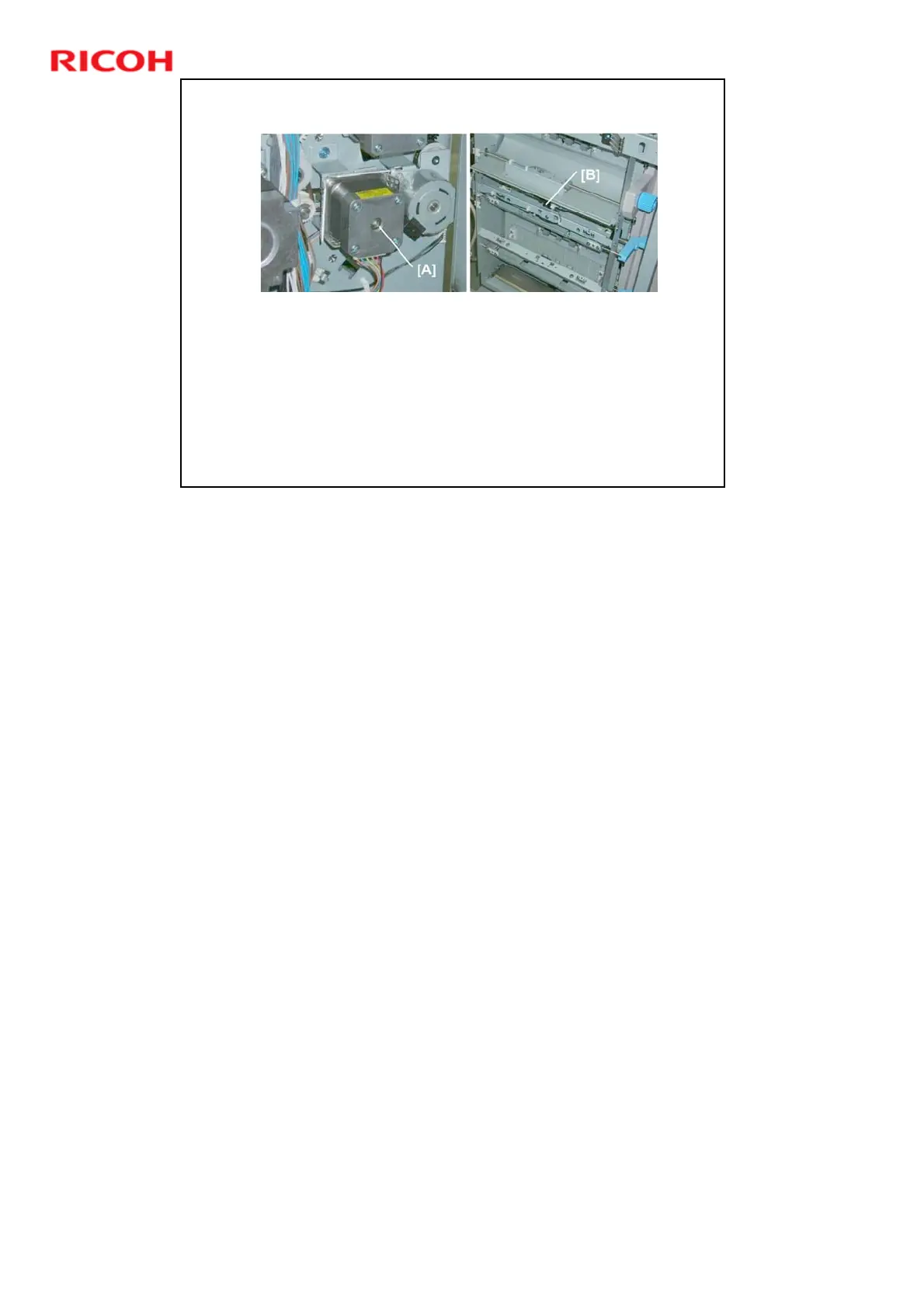

 The mechanism consists of a motor [A] on the back of the
unit and the idle roller HP sensor [B] at the LCIT paper exit.
No additional notes
