32DSSS01.A
2-
CAUTION
REMINDER TO RICON SERVICE TECHNICIAN
Never replace a circuit breaker with one of greater amperage, or with
a piece of wire. Locate and repair short circuit to correct problem.
• Optional Door Operator Circuit Breaker
Refer to Figure 2-6. The circuit breaker for optional door operator is found on
hydraulic pump assembly. In case of a door operator short circuit, the circuit
breaker button will “pop-out”. If pressing and releasing button does not reset
power, DO NOT press and hold. Contact a Ricon authorized service technician
for repair. Refer to appropriate Ricon Remote Power Door Operator Ser-
vice/Owner Manual for a detailed description.
• Control System Circuit Breaker
Refer to Figure 2-6. The Control System Circuit Breaker is on hydraulic pump
assembly. In case of a control system short circuit, the circuit breaker button
will “pop-out”. If pressing and releasing button does not reset power, DO NOT
press and hold. Contact a Ricon authorized service technician for repair.
• Main Circuit Breaker
Refer to Figure 2-7. The main circuit
breaker is located in vehicle engine
compartment and is designed to inter-
rupt electrical power to lift electrical
system when a short circuit occurs.
In the event of a short circuit, the cir-
cuit breaker reset tab will “flip-down”.
If pressing reset tab UP and releasing
does not reset power, DO NOT press
and hold tab. Contact a Ricon author-
ized service technician for repair.
3. MANUAL BACKUP PUMP
Refer to Figure 2-8. The manual backup
pump is used to operate lift if electrical
power is not functional. The controls for
pump consist of a pump handle for rais-
ing lift platform and a pump release valve
for lowering it. Instructions for operating
manual pump are provided in the MAN-
UAL OPERATION paragraph, which is
part of the LIFT OPERATION section in
this chapter.

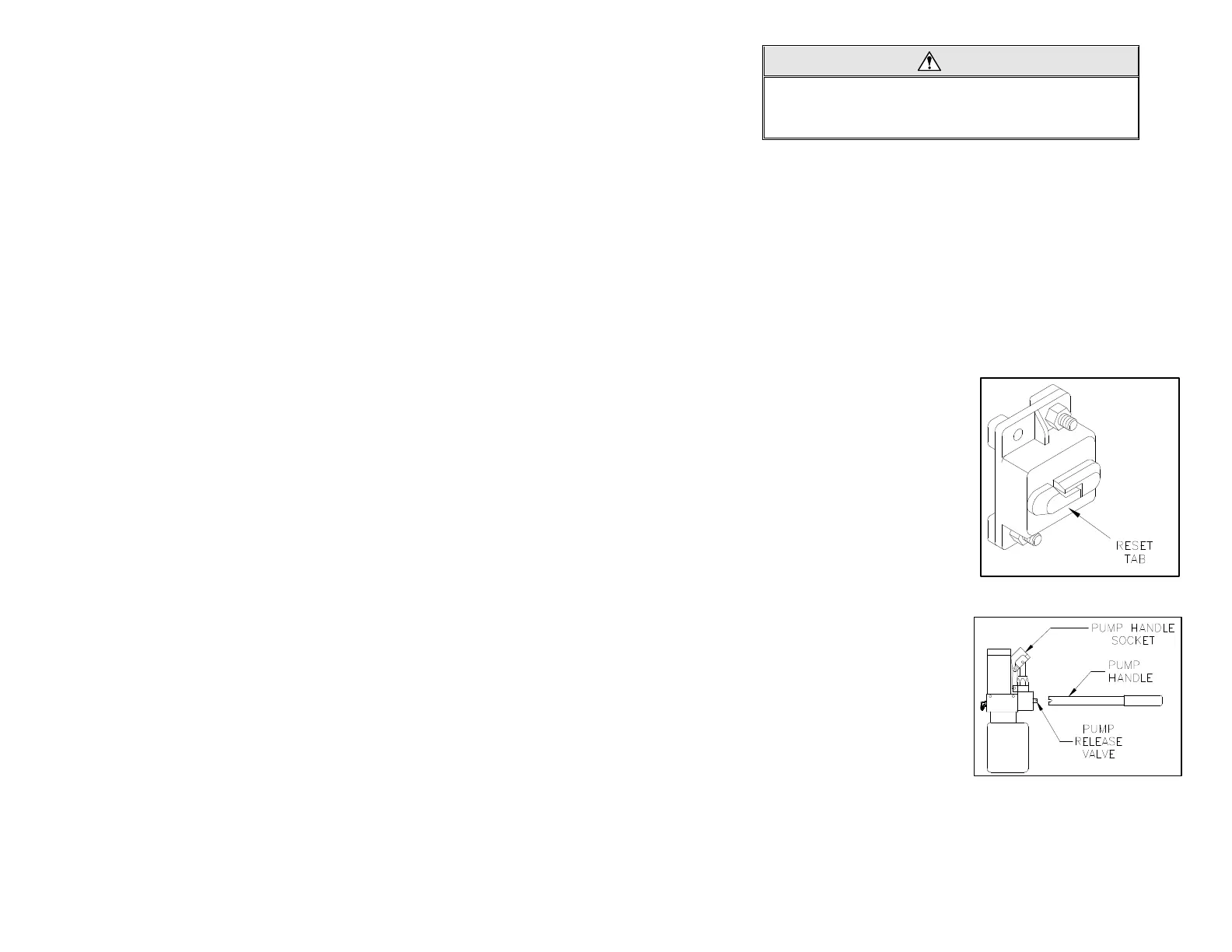

FIGURE 2-7: MAIN CIRCUIT BREAKER
FIGURE 2-8: MANUAL BACK-UP PUMP
& HANDLE
