b. LOWER PLATFORM - DO NOT STAND on inboard rollstop as platform lowers.
Push and hold DOWN switch until platform settles at ground level.
♦ Unfasten occupant restraint belt, release wheelchair brakes, and carefully
exit platform.
c. RAISE PLATFORM - Push and hold UP switch until platform rises to vehicle
floor level.
d. REFER TO “STOWING PLATFORM” SECTION BELOW TO STOW PLATFORM.
3. STOWING PLATFORM
NOTE: The occupant restraint belt must be fastened to enable the STOW/DEPLOY and
UP/DOWN functions. The lift will not operate unless this safety mechanism is
properly engaged.
a. Push and hold STOW switch until platform folds completely into vehicle.
CAUTION
BE CERTAIN LIFT HAS FOLDED COMPLETELY BEFORE ATTEMPT-
ING TO CLOSE DOORS. TO PREVENT DAMAGE TO DOORS, DO
NOT RELEASE SWITCH UNTIL LIFT HAS FOLDED COMPLETELY
AND LIFT PUMP MOTOR HAS STOPPED AUTOMATICALLY.
b. Close vehicle doors if lift is not equipped with a Ricon Remote Power Door Op-
erator. (If equipped with a Power Door Operator, the vehicle door will auto-
matically close after platform is stowed/folded).
4. MANUAL OPERATION
WARNING!
FOLLOW THE PRECAUTIONS AT BEGINNING
OF “LIFT OPERATION” SECTION WHEN US-
ING MANUAL BACKUP SYSTEM
Refer to Figure 2-9. If lift electrical power is not
functional, the lift can be operated manually as fol-
lows:
• Open door(s) completely. If equipped with a
Power Door Operator, refer to appropriate
Remote Power Door Operator Service/Owner
Manual for manual operation instructions.
a. Deploy Platform
1) Override "Sto-Loc" feature by lifting in-
board rollstop. This will separate "Sto-
Loc" catch (attached to underside of in-
board rollstop) from "Sto-Loc" latch (af-
fixed to lift base assembly). If "Sto-Loc"
is difficult to separate, use manual
backup pump to raise lift slightly and
thereby remove tension from catch; refer
to “Stow Platform” paragraph in this sec-
tion.

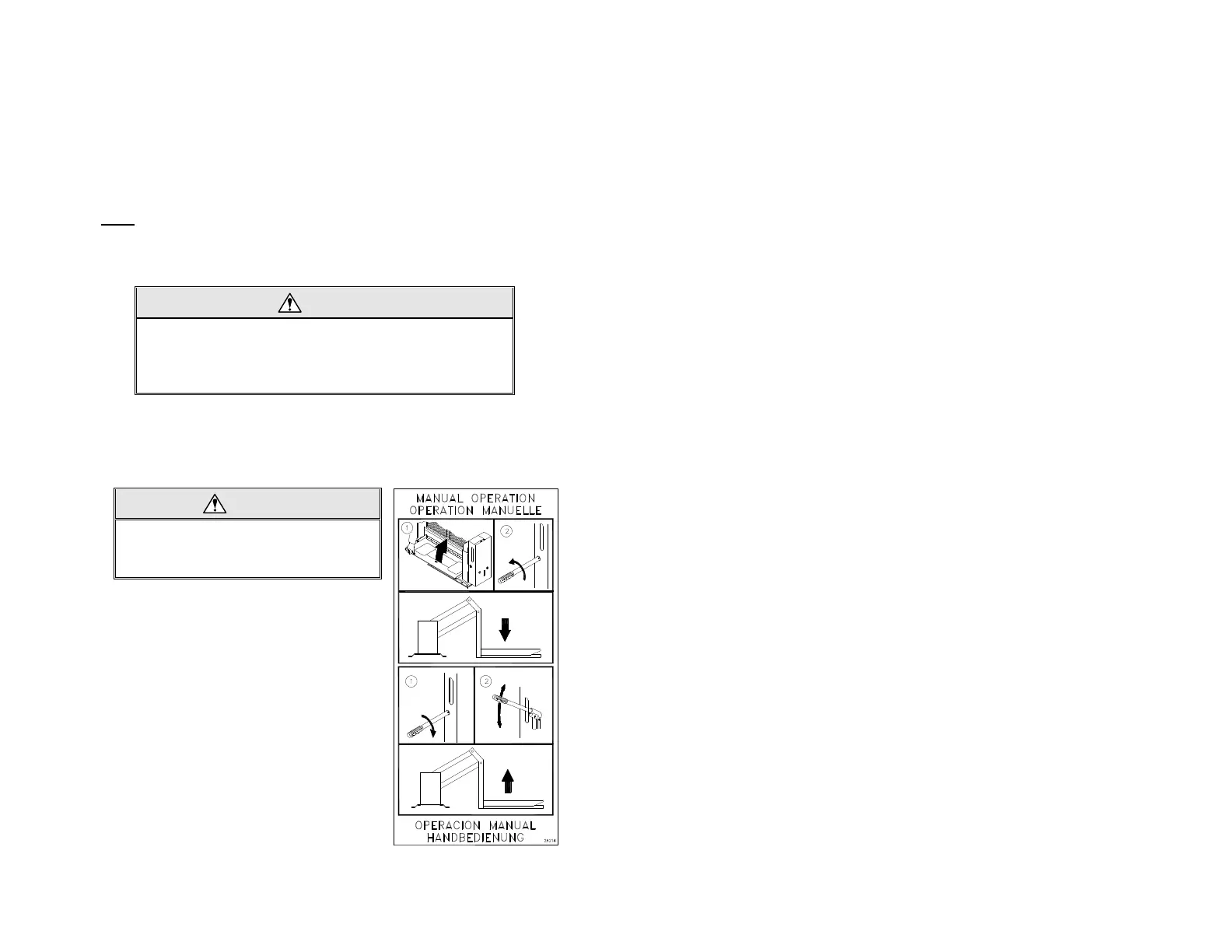

FIGURE 2-9: MANUAL OPERA-
TION
