c. Raise Platform
1) Refer to Figure 2-11. Check pump release valve to be certain it is closed.
2) Insert pump handle into pump handle socket. Operate pump to begin rais-
ing platform.
3) When platform reaches vehicle interior floor level turn valve CLOCKWISE to
close; DO NOT OVER-TIGHTEN VALVE. Do not raise platform past vehicle
floor level. The rear edge of inboard rollstop must rest flat against vehicle
floor.
d. Stow Platform
1) Refer to Figure 2-11. Check pump release valve to be certain it is closed;
DO NOT OVER-TIGHTEN VALVE.
2) Insert pump handle into pump handle socket. Operate pump to begin rais-
ing platform.
3) Operate pump until lift is COMPLETELY folded inside vehicle.
4) Stow pump handle. Close vehicle doors.

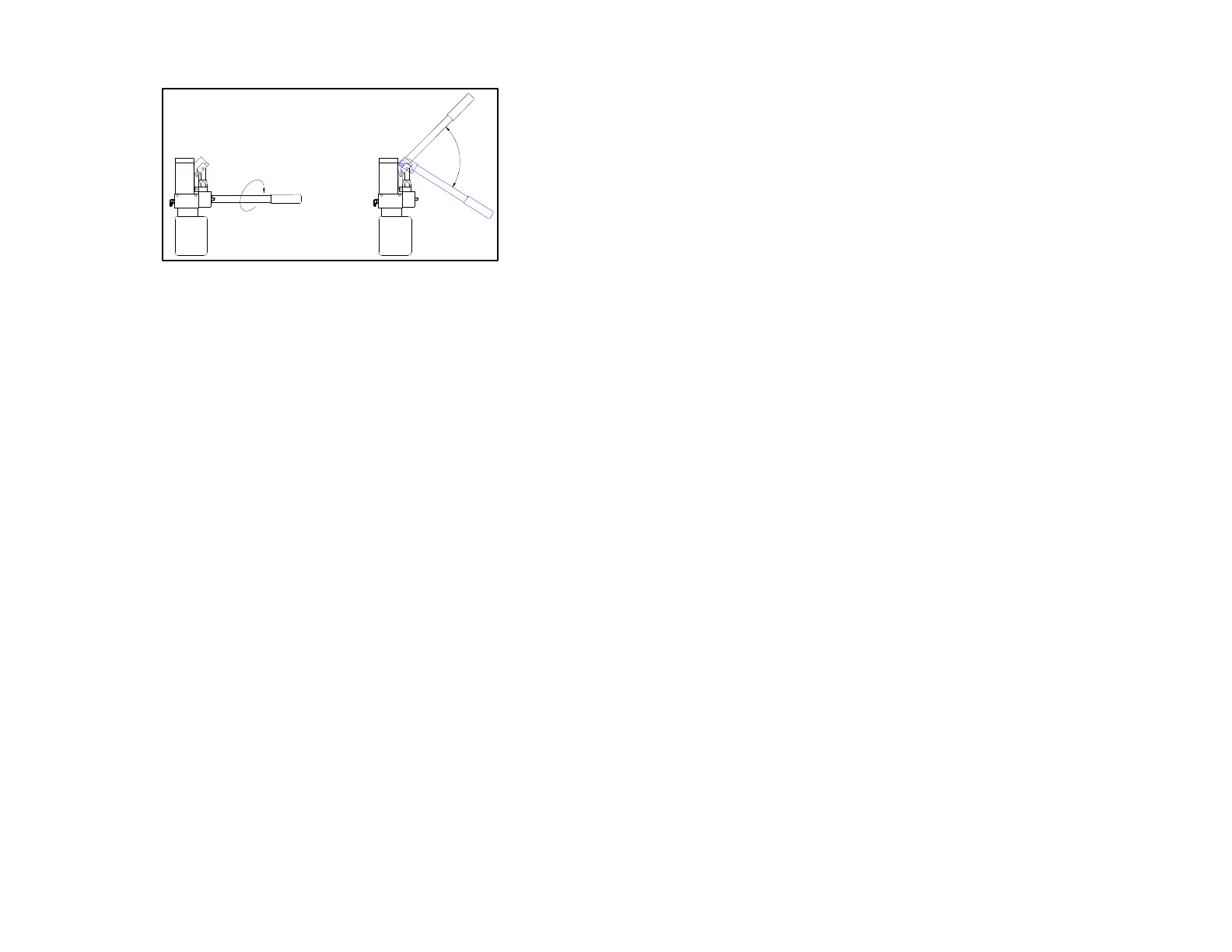

FIGURE 2-11: MANUAL BACK-UP PUMP – RAISE PLATFORM
