Maintenance TRN rack drives
Inspection and maintenance work is only permitted to approved personnel.
Installation TRN
After installation, TRN rack-drive, bearing (opposite system) and rack (teeth, sides, bottom) have to be
lubricated! Refer to "Lubricate TRN".
Maintenance TRN
Every 6 months inspection of system and rack drives on technical state (wear and tear, shaft
connections, fasteners and such) and proper functioning. With this the TRN rack-drive, bearing
(opposite system) and rack (teeth, sides, bottom) have to be lubricated. Refer to "Lubricate TRN".
Lubricate TRN

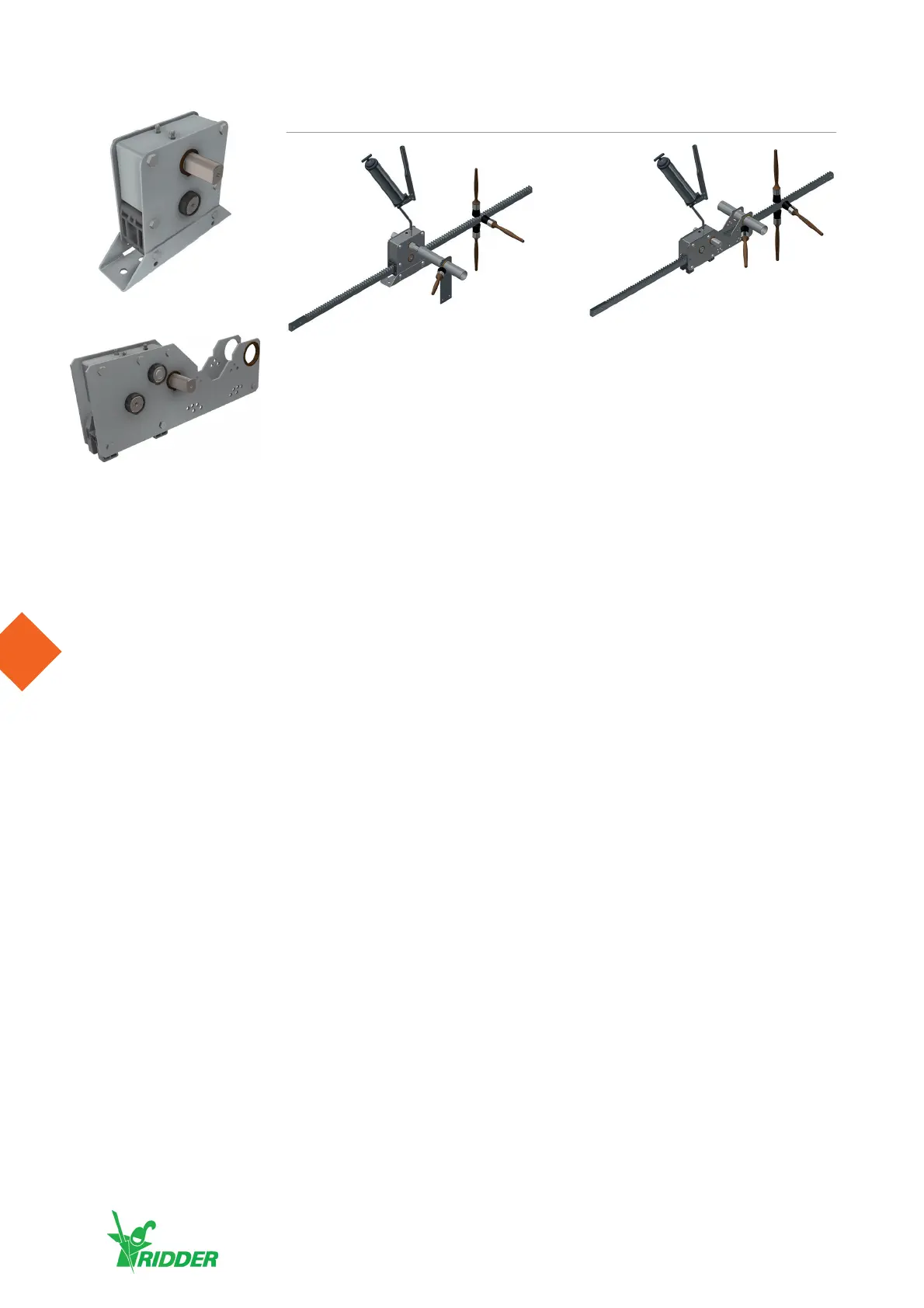

● Lubricate pinion-house unit with grease gun (approximately 5 strokes per grease nipple).
● Lubricate rack (all around) with brush (teeth, sides, bottom).
● Lubricate bearing (opposite system) all around (fully: between surfaces tube/bearing) with brush.
Lubricant TRN
Grease: CASTROL OPTILEB-GR 823-2 (item number: 182029)
