2. Installation Steps: Assembling Your Bike
2.1 Fork/Headset Assembly:
PLEASE COMPLETE STEPS IN ORDER.
§ Check cable and wire routing before inserting the fork steerer tube into the headtube. Compare
wire and cable routing to video/pictures in manual or on our website.
§ Make sure fork is not backwards, the brake caliper goes on the left.

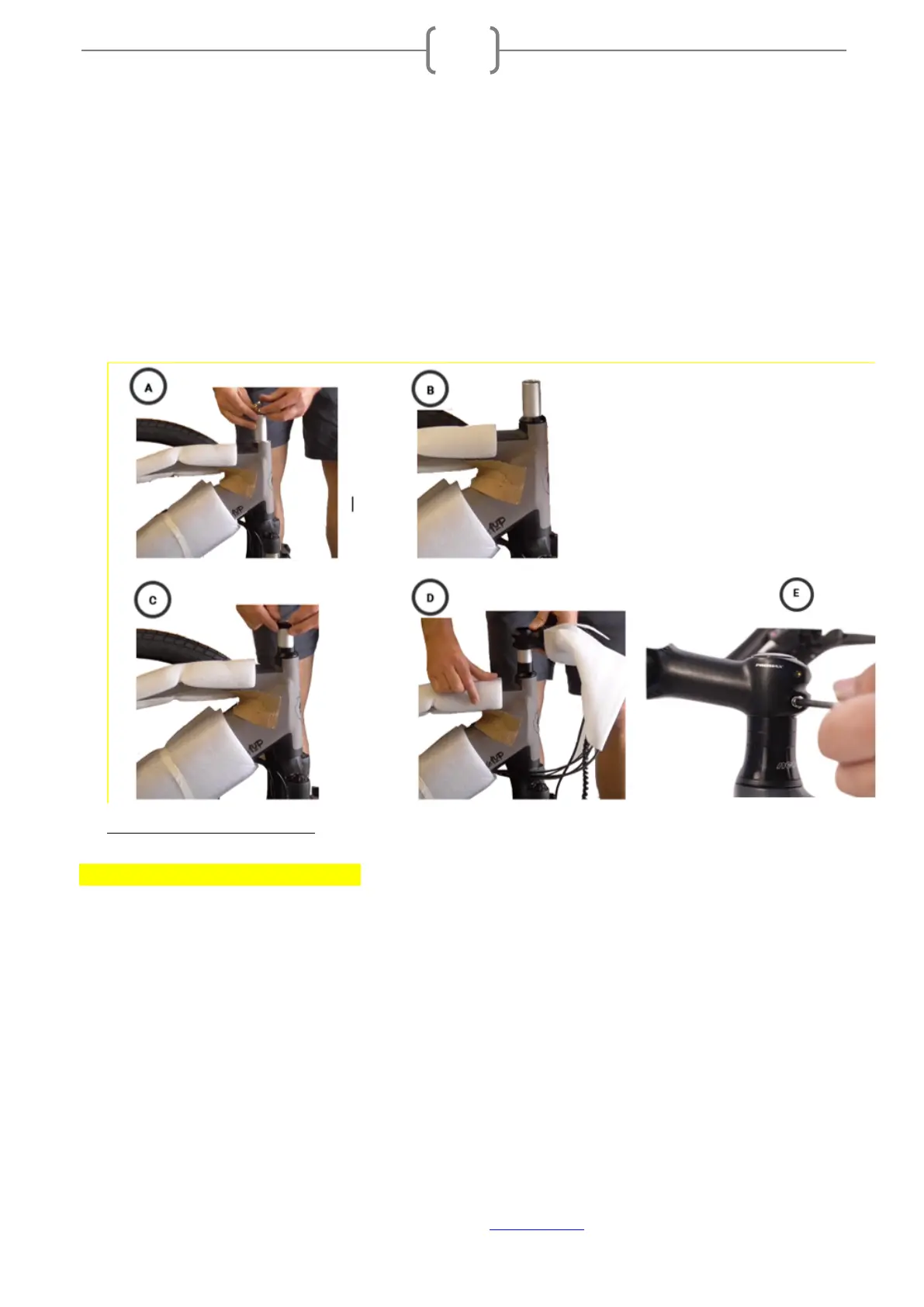

§ Align steerer tube with the hole of the head tube, slowly slide it through. (Figure A) Be careful not
to lose the compression or split ring.
§ Push Compression ring down on the fork steerer tube (the compression ring is the only split ring).
The lip of the compression ring should fit in between the steerer tube and the upper headset
bearing, then slide on the headset spacers. (Figure B)
§ Check the routing of the cables again before installing stem with handlebars. You may need to flip
your handlebars for proper routing. Slowly slide the stem with attach handlebars onto the fork
steerer tube. (Figure C)
