16
Assembly (continued)

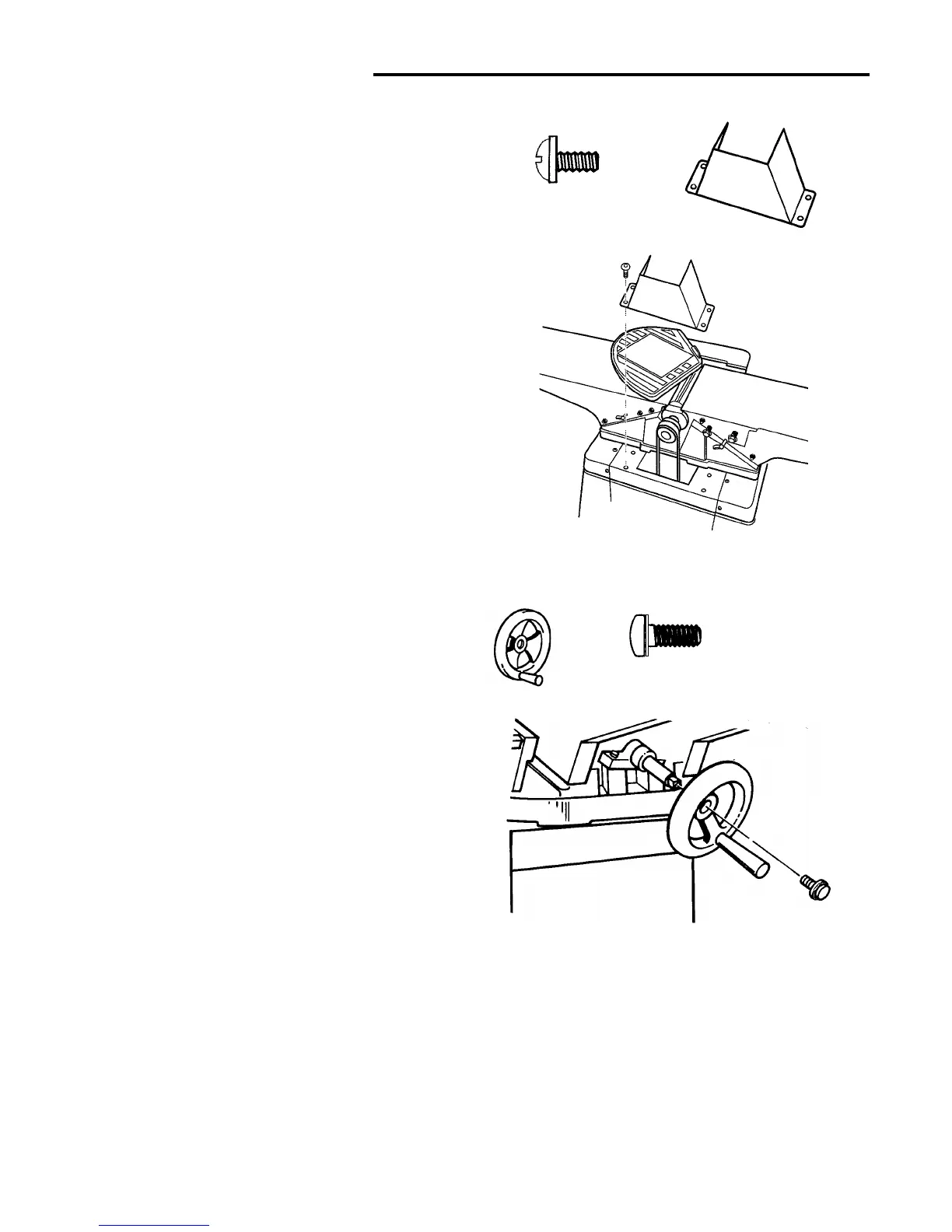

Installing the Pulley Guard
1. From the hardware pack locate the following:
From among the loose parts find the following:
4 Pan Head Cross Serrated Screws 3/16-24 x 3/8"
Belt Guard
2. With assistance set the jointer upright.
3. Mount the belt guard in place as shown using the four
3/16" screws.
Installing Handwheel
1. From the hardware pack find the following:
1 Screw Pan Head 1/4-20 x 5/8
1 Washer 1/4
2. From among the loose parts find the following:
1 Handwheel
3. Slip the handwheel onto the infeed table elevation
shaft and install the washer and screw as shown.
Belt Guard
Screw Pan Head Cr
Serr 3/16-24 x 3/8"
NOTE: Fence mount removed for clarity
Handwheel
Screw Pan Head w/Washer
1/4-20 x 5/8"
To Next Page
