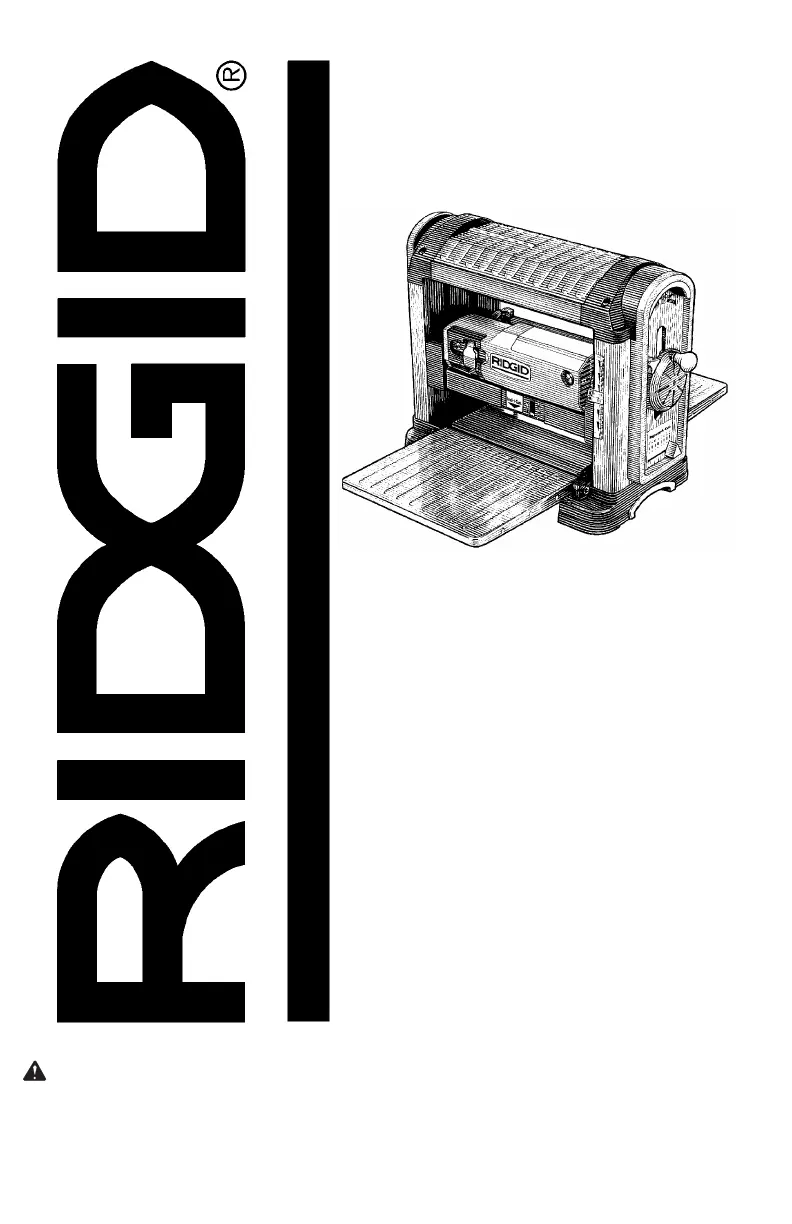

23(5$725·60$18$/
WARNING: To reduce the risk of
injury, the user must read and
understand the operator’s manual
before using this product.
SAVE THIS MANUAL FOR
FUTURE REFERENCE
µ7+,&.1(66
3/$1(5
Part No. SP6452 Printed in Taiwan
73

Table of Contents

Other manuals for RIDGID TP1300

Preview: Owner's Manual
Owner's Manual72 pages

Questions and Answers

  • J
    Justin JohnsonAug 19, 2025
    What to do if the RIDGID TP1300 motor does not start?
    • D
      donaldsoncatherineAug 20, 2025
      If your RIDGID Planer's motor isn't starting, here are a few things to check: * A qualified electrician should replace the ON/OFF switch if there's a switch malfunction. * If the overload protector tripped, turn the power switch off, wait 15-30 minutes for the planer to cool, and then press the overload protector reset button. * Replace the fuse with a 15 amp time delay fuse, or circuit breaker if the supply fuse opens.
  • J
    Joseph Yates DDSAug 21, 2025
    How to fix snipe (gouging at ends of board) with RIDGID TP1300?
    • M
      Matthew AllisonAug 21, 2025
      If you're experiencing snipe (gouging at the ends of the board) with your RIDGID Planer, consider the following: * Replace the knives if they are dull. * Ensure long boards are adequately supported. * Butt each piece of stock end to end as boards pass through the planer. * Adjust the extension supports if the extensions are misaligned.
  • M
    Marc RussellAug 23, 2025
    What causes torn grain when using a RIDGID TP1300?
    • J
      John CooperAug 23, 2025
      Torn grain when using the RIDGID Planer can result from: * Too heavy a cut. Check the “Depth of Cut” section. * Knives cutting against the grain. Check the “Feeding the Work” section. * Dull knives. Replace the knives.
  • E
    erik69Aug 26, 2025
    What causes rough raised grain when using RIDGID Planer?
    • M
      matthew10Aug 26, 2025
      Rough raised grain when using the RIDGID Planer can be caused by: * Dull knives. Replace the knives. * Too heavy a cut. Check “Depth of Cut”. * Moisture content being too high. Dry the wood or use dried wood.
  • P
    Paula GlennAug 27, 2025
    What causes fuzzy grain when using a RIDGID TP1300 Planer?
    • H
      Heather KellyAug 27, 2025
      Fuzzy grain when using a RIDGID Planer can be caused by planing wood with a high moisture content. Remove high moisture content from wood by drying.
  • S
    Sharon LopezAug 29, 2025
    Why is the cutter head elevation hard to adjust on my RIDGID TP1300?
    • S
      Steven GloverAug 29, 2025
      If the cutter head elevation on your RIDGID Planer is difficult to adjust, the causes may be: * Dirty elevation screws. Clean and lubricate the elevation screws. * Worn gears or screws. Replace them. * Friction between casing and covers. Clean and lubricate.
  • P
    Paul SandersAug 31, 2025
    What to do if the board thickness doesn't match the depth of cut scale on the RIDGID TP1300?
    • C
      Collin GregoryAug 31, 2025
      If the board thickness does not match the depth of cut scale on your RIDGID Planer: * Adjust the indicator and securely tighten it if it is not set correctly. * Set knife projection correctly if the knife projection is incorrect.
  • D
    Daniel SullivanSep 2, 2025
    What causes uneven depth cut side to side on a RIDGID TP1300 Planer?
    • S
      spencejessicaSep 3, 2025
      Uneven depth cut side to side on a RIDGID Planer could be due to non-uniform blade projection. Check that the end of the knife is fully seated in the cutter head.
  • S
    Stuart MolinaSep 5, 2025
    How to prevent snipe on RIDGID Planer?
    • M
      Mason HernandezSep 5, 2025
      To prevent snipe (gouging at the ends of the board) when using the RIDGID Planer: * Replace dull knives. * Ensure adequate support for long boards. * Butt each piece of stock end to end as boards pass through the planer. * Adjust extension supports.
  • C
    Connor GonzalezSep 6, 2025
    What to do if RIDGID TP1300 Planer causes torn grain?
    • R
      Ryan RamirezSep 6, 2025
      If your RIDGID Planer is causing torn grain, it could be due to several reasons. First, the cut may be too heavy. Second, the knives may be cutting against the grain. Finally, the knives may be dull. You can review the 'Depth of Cut' and 'Feeding the Work' sections, and replace knives.

Summary

Safety Instructions

When Installing Or Moving The Thickness Planer

Guidelines for safely moving and installing the planer.

Before Leaving The Thickness Planer

Steps to safely shut down and secure the planer.

To Reduce The Risk Of Injury From Jams, Slips Or Thrown Pieces

Precautions against common operational hazards like jams and thrown pieces.

Motor Specifications and Electrical Requirements

Motor Safety Protection

Measures to protect the motor from damage and ensure safe operation.

Thermal Overload Protector

Explanation of the automatic shutdown feature for overheating.

Unpacking and Checking Contents

Assembling Legset

Instructions for assembling the planer's leg stand structure.

Assembling Upper and Lower Legs

Steps to connect upper and lower leg components.

Assembling Upper Stiffeners

Steps for attaching the upper stiffeners to the leg structure.

Unpacking

Steps and safety precautions for removing the planer from packaging.

Assembling Lower Stiffeners

How to attach lower stiffeners to the assembled legs.

List of Loose Parts

Inventory of parts included in the package.

Mounting The Thickness Planer

Mounting on Legset

How to secure the planer to its supplied leg stand.

Installing the Handwheel Knob

Mounting Thickness Planer on Supplied Legset

Specific steps to mount the planer onto its own legset.

Mounting Thickness Planer on Other Legsets or Work Benches

Alignment and Adjustments

Extension Assembly Alignment

Adjusting the Thickness Indicator

Getting to Know Your Thickness Planer

Basic Thickness Planer Operations

Before Using The Thickness Planer

Crucial steps before operating the planer for the first time.

Reduce The Risk Of Accidental Starting

Plan the way you will hold the workpiece from start to finish

Reduce Damage To Knives

Carriage Lock Adjustment

Checking for Worn Knives

Before Each Use

Daily inspection and safety checks before operation.

Take Precautions Against Kickback

Strategies to prevent kickback incidents.

Preparing the Work

Plan Ahead To Protect Your Eyes, Hands, Face and Ears

Advice on personal protective equipment and awareness.

Dress For Safety

Guidance on appropriate attire and PPE for safe operation.

Carriage Lock

Feeding the Work

Proper techniques for feeding workpieces through the planer.

Thickness Stop (Repeat-A-Cut) Adjustment

Inspect Your Workpiece

How to check materials before planing to avoid hazards.

Whenever Thickness Planer Is Running

Safety precautions to observe while the planer is in operation.

Maintenance

Changing Brushes

Replacing Knives

Detailed instructions for replacing or turning the planer knives.

Troubleshooting

Snipe (Gouging at ends of board)

Fuzzy Grain

Torn Grain

Rough Raised Grain

Uneven Depth Cut Side to Side

Cutter head Elevation Adjusts with Difficulty

Board Thickness Does Not Match Depth of Cut Scale

Chain Jumping

Motor does not start

Dust chute is blocked

RIDGID TP1300 Specifications

General IconGeneral
Motor Power15 Amp
Maximum Cutting Width13 inches
Feed Rate26 feet per minute
Number of Knives2
Weight92 lbs
Maximum Planing Thickness6 inches
Minimum Planing Thickness1/8 inch
Number of Blades2
Maximum Cutting Depth1/8 inch
Dust Port Size4 inches
