RIDGID TP1300 - Assembling Upper and Lower Legs; Assembling Lower Stiffeners

13

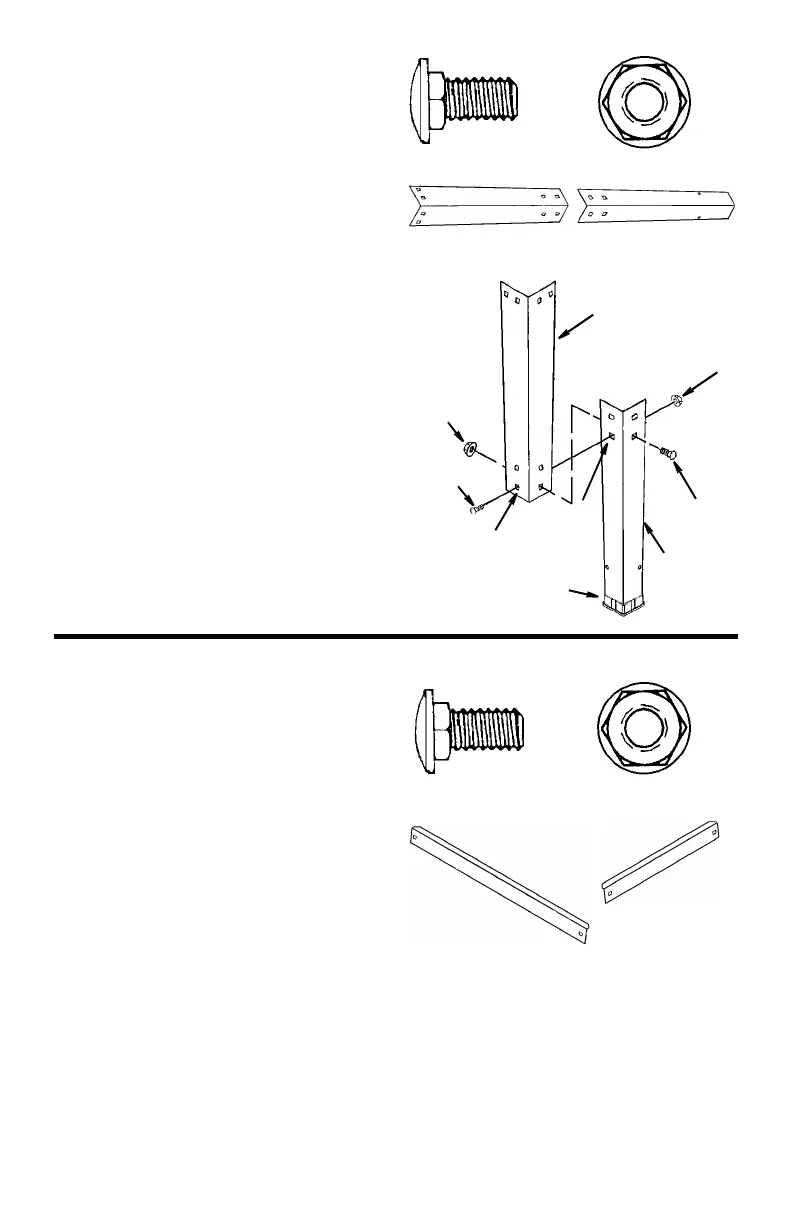

Assembling Upper and Lower Legs
1. Locate the following parts and hard-
ware:
8 Cariage Bolts M8 x 1.25
8 Hex Flanged Nuts M8 x 1.25
4 Upper Legs
4 Lower Legs
4Feet
2. Position the lower leg inside the upper
leg as shown. Place a bolt only through
the bottom hole of the upper leg and
through the bottom hole of the lower
leg. Attach a nut but only finger tighten.
3. Repeat for other three leg assemblies.
4. Asemble foot to bottom of lower leg.
Repeat for other three leg assemblies.
Assembling Lower Stiffeners
1. Locate the following parts and hard-
ware:
8 Carriage Bolts M8 x 1.25
8 Hex Flanged Nuts M8 x 1.25
2 Long Lower Stiffeners
2 Short Lower Stiffeners
Lower Leg
Upper Leg
Hex Flanged Nut
M8 x 1.25
Carriage Bolts
M8 x 1.25
Nu
t
Bottom
Bolt
Lower
Upper Leg
Hole
Leg
Bottom
Hole
Bolt
Nut
Foot
Hex Flanged Nut
M8 x 1.25
Carriage Bolts
M8 x 1.25
L
ong Lower
Stiffener
Short Lowe
r
Stiffener
