RIDGID TP1300 - Assembling Legset

12
Unpacking and Checking Contents (continued)

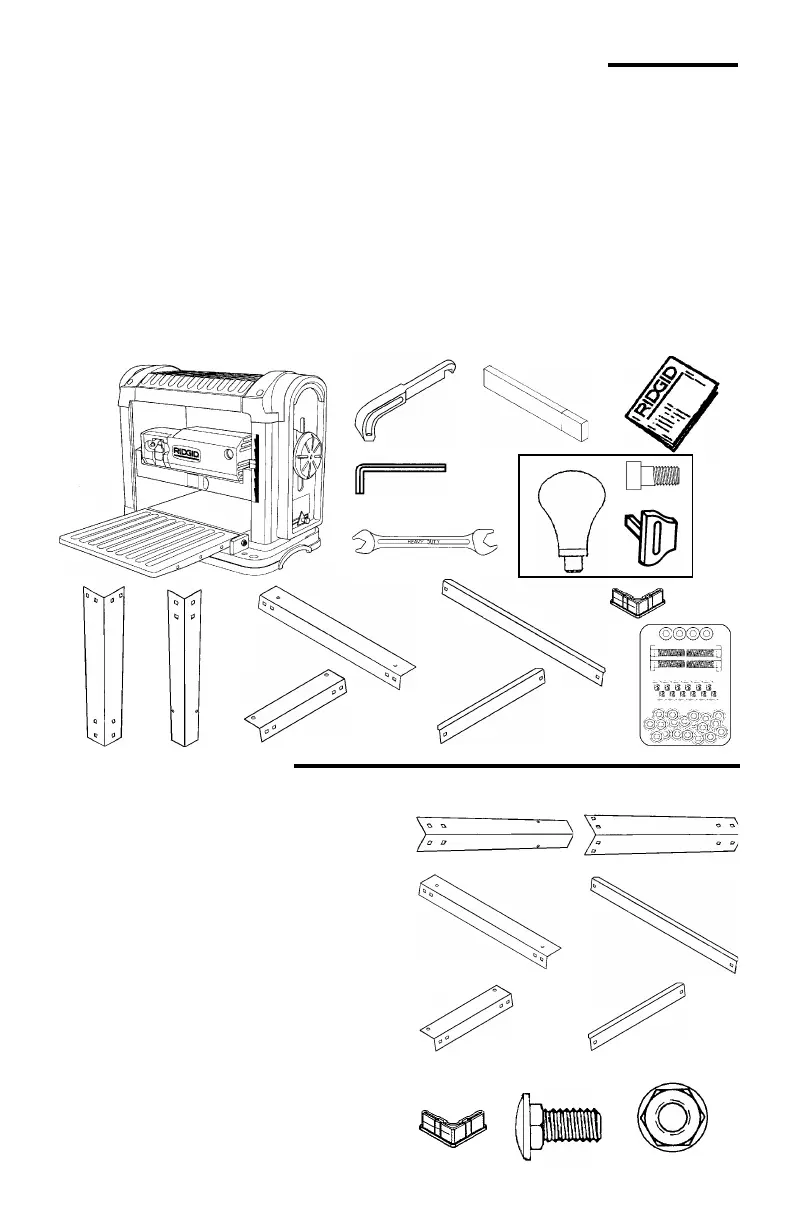

The following parts are included:
Item Description Qty
A Thickness Planer ...........................1
B * Magnetic Knife Handling Tool........1
C * Hex “L” Wrench 4mm ....................1
D * Open End Wrench 8mm/10mm.....1
E Replacement Blades/Blade Case .. 1
(stored under rear table)
F Operator’s Manual ......................... 1
G Bag of Loose Parts ........................ 1
(Contains the following items)
H Handle............................................ 1
Item Description Qty
J Screw M5 x 0.8-10......................... 1
K Switch Key..................................... 1
L Upper Leg...................................... 4
M Lower Leg...................................... 4
N Long Upper Stiffener...................... 2
P Long Lower Stiffener...................... 2
Q Short Upper Stiffener ..................... 2
R Short Lower Stiffener ..................... 2
S Foot ............................................... 4
T Hardware pack, Legset Hardware . 1
* Supplied in “Tool Box”
Assembling Legset
1. Locate the following parts:
4 Lower Legs
4 Upper Legs
2 Long Upper Stiffeners
2 Short Upper Stiffeners
2 Long Lower Stiffeners
2 Short Lower Stiffeners.
2. From the leg set hardware bag find the
following:
4Feet
32 Carriage Bolts M8 x 1.25
32 Hex Flanged Nuts M8 x 1.25
NOTE: Hardware not shown actual size.
A
B
C
D
F
G
E
L
M
N
P
Q
R
S
H
J
K
T
Lower Leg
L
ong Upper
Stiffener
Long Lower
Stiffener
Short Lower
Stiffener
Short Upper
Stiffener
Flange Nut
Bolt
Foot
Upper Leg
