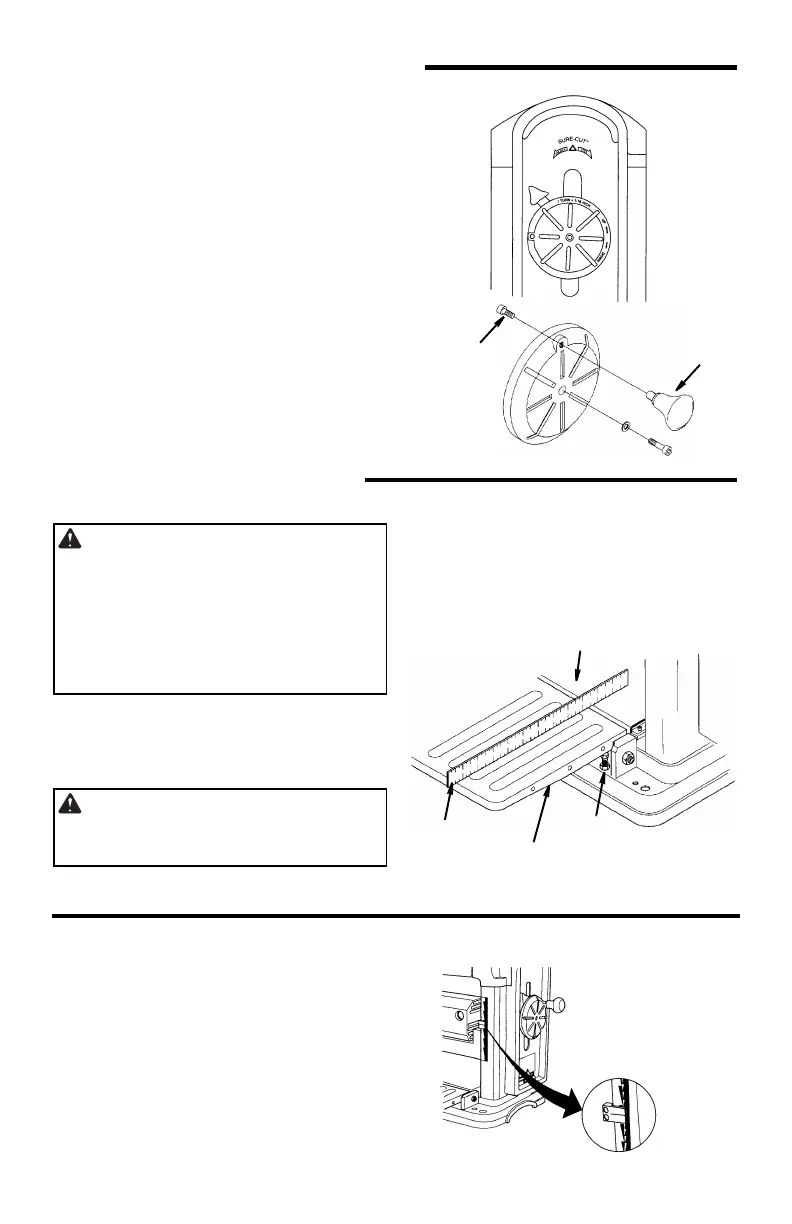

Installing the Handwheel Knob
1. Locate the handwheel knob and screw
in the loose parts bag.
2. Use the hex “L” wrench from the tool
box to remove the screw from the cen-
ter of the handwheel and remove the
handwheel from the unit.
3. Place the screw through the back of the
handwheel and secure the screw to the
knob on the front of the handwheel.
4. Place the handwheel back on the ele-
vation shaft and reinstall the screw in
the center of the handwheel.
Alignment (Adjustments)
Extension Assembly Alignment
WARNING: To reduce the risk of
injury from unexpected starting or
electrical shock, do not plug the thick-
ness planer in. The power cord must
remain unplugged whenever you are
adjusting or aligning the thickness
planer.
NOTE: Align only one extension at a time.
Elevate the motor enough to give a proper
view of the table body and clearance of
the knives.
WARNING: Knives are
extremely sharp and could seri-
ously injure your hands or arms.
1. Place a straight edge across table body
and over infeed extension as shown.
Loosen locking nut and adjust each
side of the table until the straightedge
touches the outer edge of table exten-
sion. Tighten the locking nuts.
2. Repeat step 1 for outfeed extension.
Adjusting the Thickness Indicator
The elevation indicator is preset at time of
manufacture. To check indicator select a
piece of stock at least 12" long and 3/4"
thick. Set planer to 11/16" and run stock
through planer. Measure wood after plan-
ing and if necessary, loosen screws to
adjust elevation indicator to agree with
measurement.
Screw
M5 x 0.8-10
Knob
Planer
Table Body
Straightedge
Table
Extension
Locking
~
Nut
