4. Transport and Storage
ENGLISH

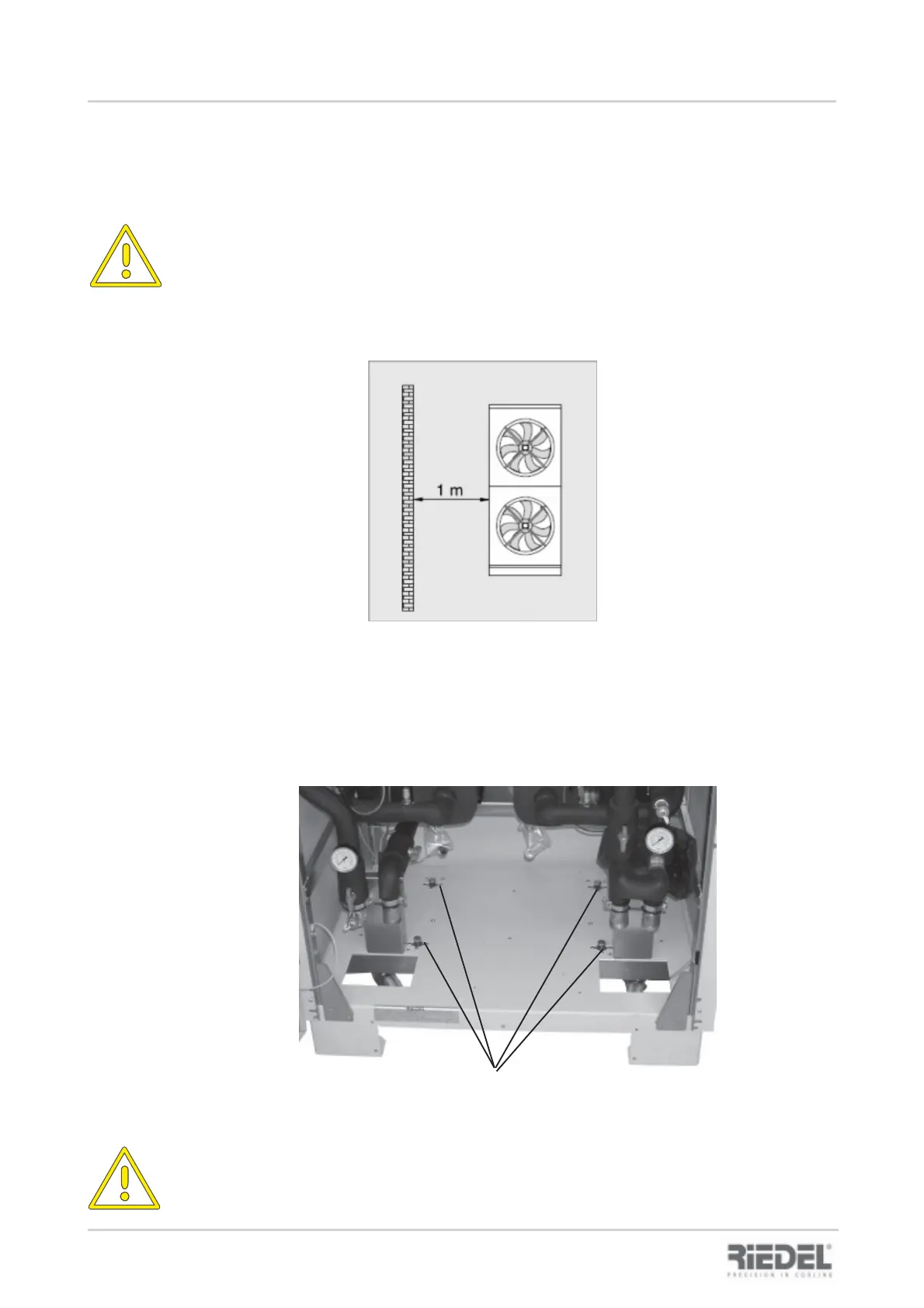

4.3 Outdoor Unit 2NK6 745-1A (10743384)
The cooling unit is to be installed outdoors and there may be a height difference of ± 20 m
between the outdoor and the indoor units. The surface must be even, level and horizontal. The
direction of the air flow is from the bottom to the top.
Make sure that the air inlet and air outlet are not obstructed as otherwise it cannot be
guaranteed that the entire cooling system will function correctly.
The operating side must be kept clear to ensure proper access for connecting, operating and
any possible servicing activities.
4.4 Installation
Extensible caster wheels are provided for transporting the unit inside the building to the
installation site. The casters can be retracted and extended by means of hexagon screws.
The caster wheels are not suited for general transport of the unit on very uneven or
rough surfaces as this may result in damage to the wheels!
During transport, the unit may be tilted max. 45°. There is a hazard of the unit tipping
over and being damaged!
Caster wheels adjustment
Indoor Unit
