4.2 Status LEDs

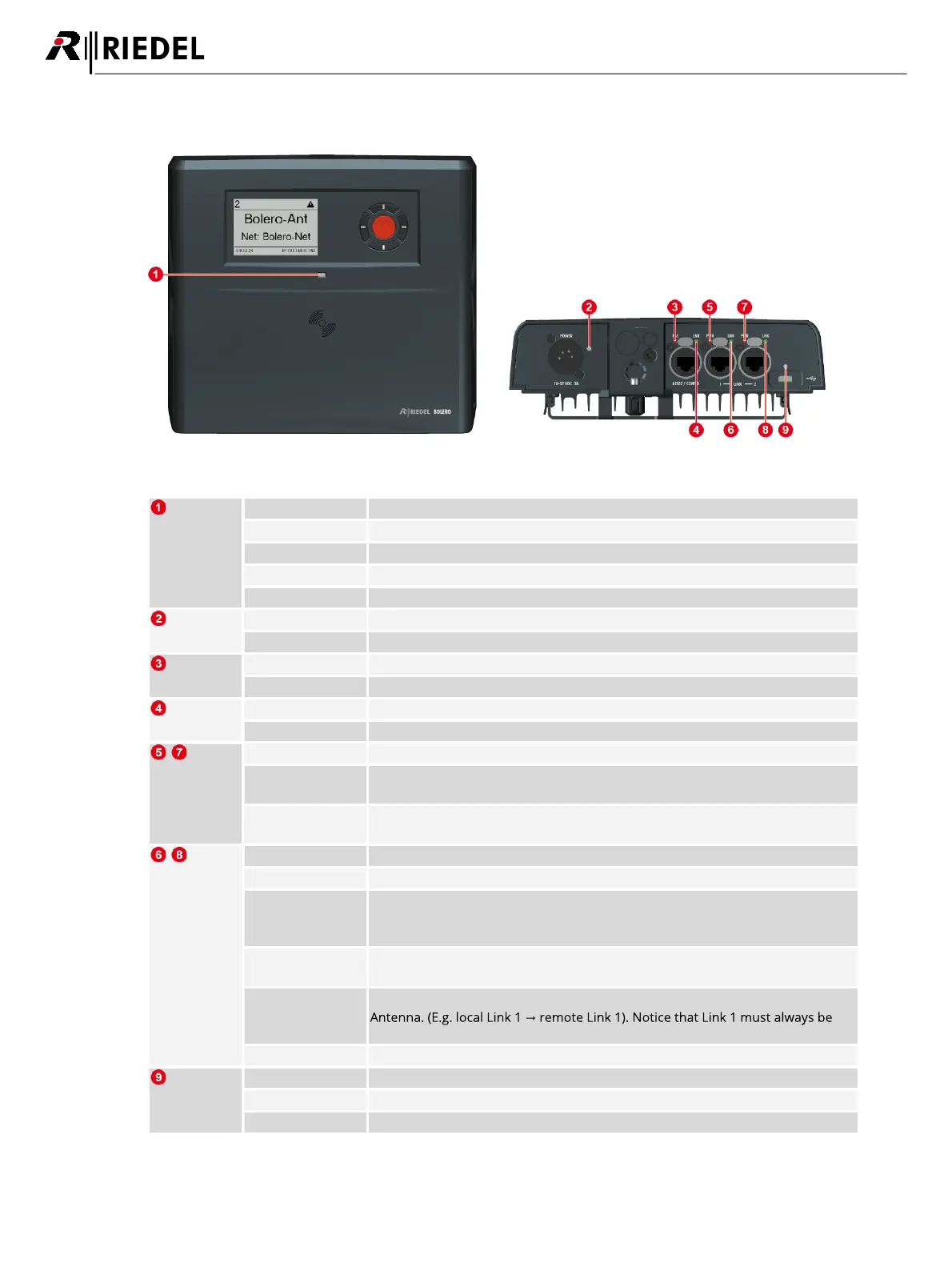

Figure 114: Antenna – Status LEDs (front, bottom)
Status
off
not powered
green
Antenna in operation (radio enabled)
orange
Antenna in operation (radio disabled)
orange blinking
Antenna is powering up
red blinking
Antenna is powering down / firmware not running
Power
off
no XLR input power
green
XLR input power ok
AES67-PoE
off
no PoE+ input power
green
PoE+ input power ok
AES67-LNK
off
no Ethernet connection present
green
Ethernet link ok
,
LINK-PWR
off
No remote power (neither outgoing nor incoming).
orange
Remote power is provided to power other Antennas
(outgoing power).
green
The Antenna uses remote power as main power-supply
(incoming power).
,
LINK-LNK
off
no LINK connection present
green blinking
LINK connection ok
orange
Authentication denied: This occurs when protocol versions of the connected
Antennas do not match. It is required to run the same firmware version on all
devices.
orange blinking
Linkup is pending: Another network space is connected to the Antenna. You can
choose to join the local and remote nets.
red
LINK connection failure: A link has been connected to the same link on another
connected to Link 2 (and vice versa) on the remote node.
red blinking
The connected Antennas do not run the same firmware version.
USB
off
no USB input power
green
USB input power ok
red
USB input power out of range
