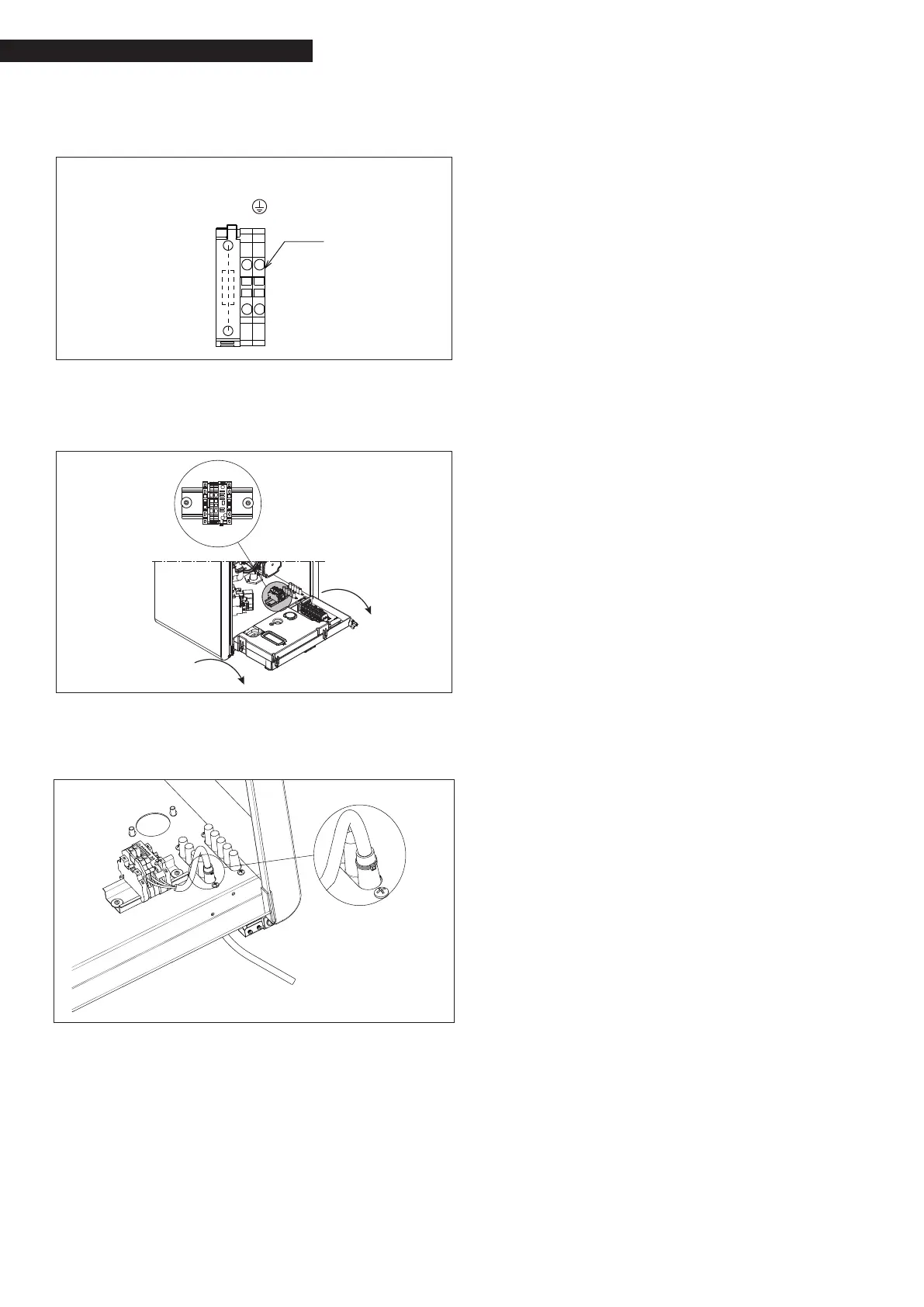

Connecting the mains voltage
The connection to the mains supply must be made on the
M01 terminal board, as shown in the detailed drawing and
in the wiring diagram.
N
L
230 V
M01
To connect the power supply cable
− remove the casing as explained in paragraph “2.10
Removing the casing”
− rotate the instrument panel
M01
− insert the supply cable (not supplied) in the cable
grommet underneath the bracket, then connect it as
shown in the gure and x it in place using the tear-
off tie, tightening it rmly.
M01
