MAINTENANCE AND CLEANING
51

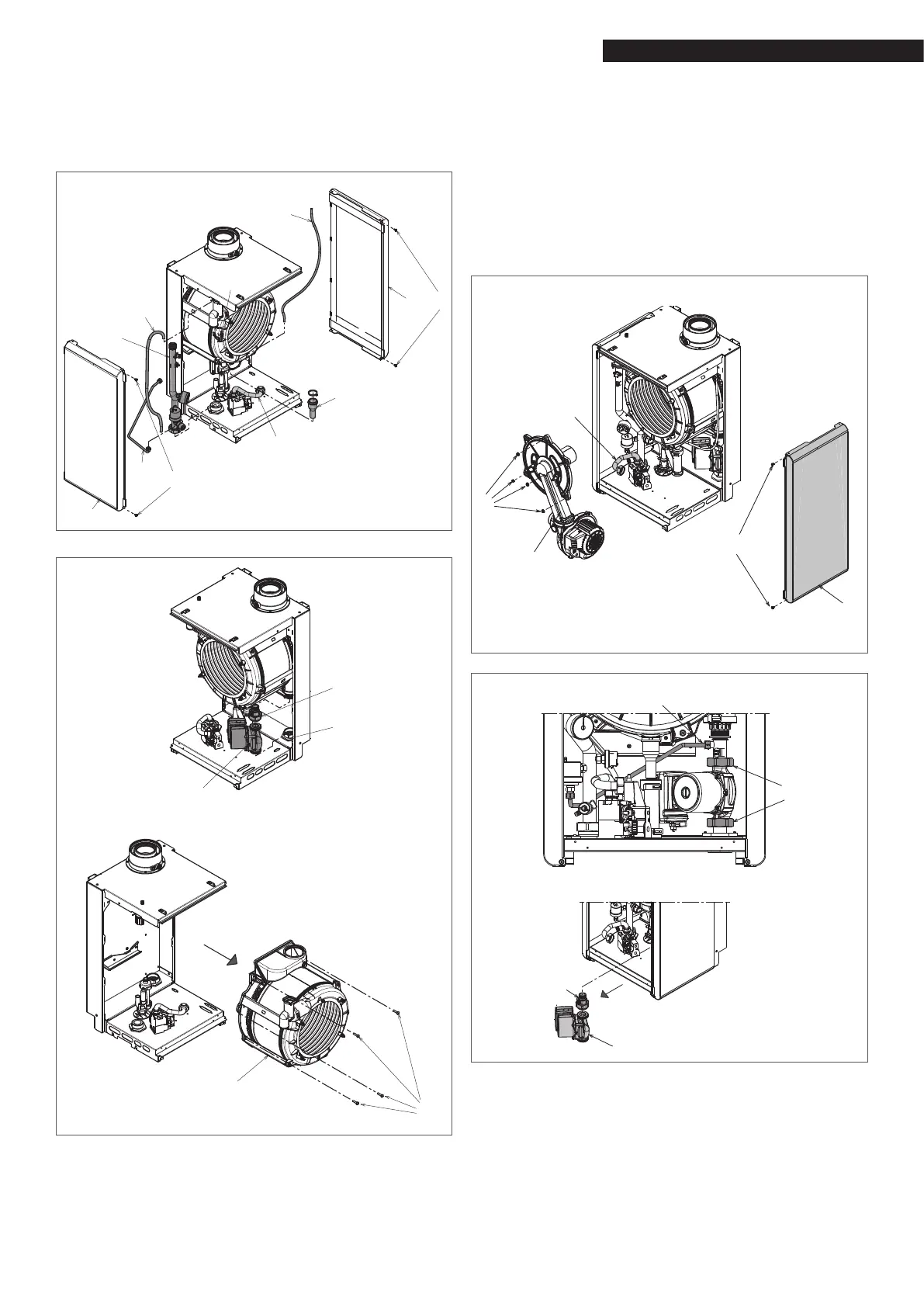

 Take out the upper train.
 Take out the circulator (N).
 Loosen the 4 screws (O) that hold the heat exchanger
in place.
 Take out the heat exchanger (P).
A
B
E
G
C
A
B
F
D
I
H
L
M
N
P
O
Disassembling the circulator
 Disconnect the power supply by placing the main swi-
tch of the system on “off”.
 Empty the system.
 Disassemble the right side panel (A) by loosening the
2 screws (B).
 Loosen the nut and rotate the gas train (C).
 Loosen the 4 screws (D) and take out the combustion
door with the fan and mixer (E).
 Loosen the nuts holding the train (F) in place, then
take it out.
 Loosen the nuts (G).
 Take out the circulator (I) and the train (H).
9
Ret the circulator, making sure it is in the same
position as before and does not interfere with the
fan.
C
B
E
D
A
H
I
G
F
