Technical description of the burner

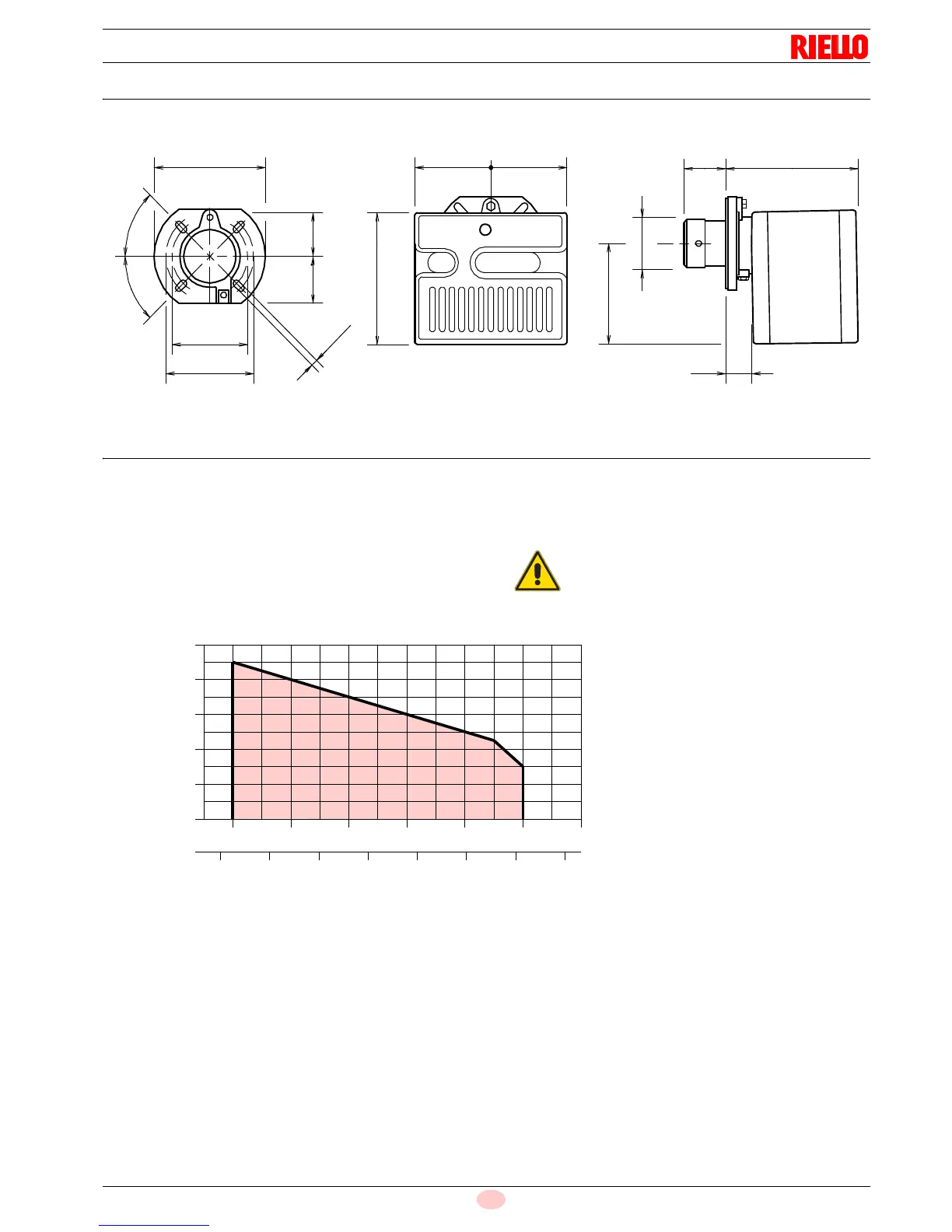

4.4 Burner dimensions
4.5 Firing rate
The MAXIMUM OUTPUT is chosen from within the diagram area
(Fig. 3).
The MINIMUM OUTPUT must not be lower than the minimum
limit of the diagram.
The burner delivery must be selected within area of the diagrams
(Fig. 3). This area is called firing rate and provides the maximum
delivery of the burner in relation to the pressure in the combustion
chamber.
The work point may be found by plotting a vertical line from the
desired delivery and a horizontal line from the pressure in the
combustion chamber. The intersection of these two lines is the
work point which must lie within the firing rates.
Fig. 2
Flange Burner
350
118
295
160
=
41
4
5
°
ø 125
298
11
230
D5283
=
213
99
99
190
4
5
°
WARNING
The firing rate area values have been obtained
considering a surrounding temperature of 20 °C,
and an atmospheric pressure of 1013 mbar (ap-
prox. 0 m above sea level).
Pressure in the combustion
chamber – mbar
Fig. 3
Fuel output - kg/h
Thermal power - kW
0
0.4
8101214
90 110 230130 150 170 190 210
16
0.6
0.2
0.8
18
1.0
20
D5683
