Riello G3 - Electrode Setting; Burner Start-Up Cycle; Maintenance Position

20013745
8
GB

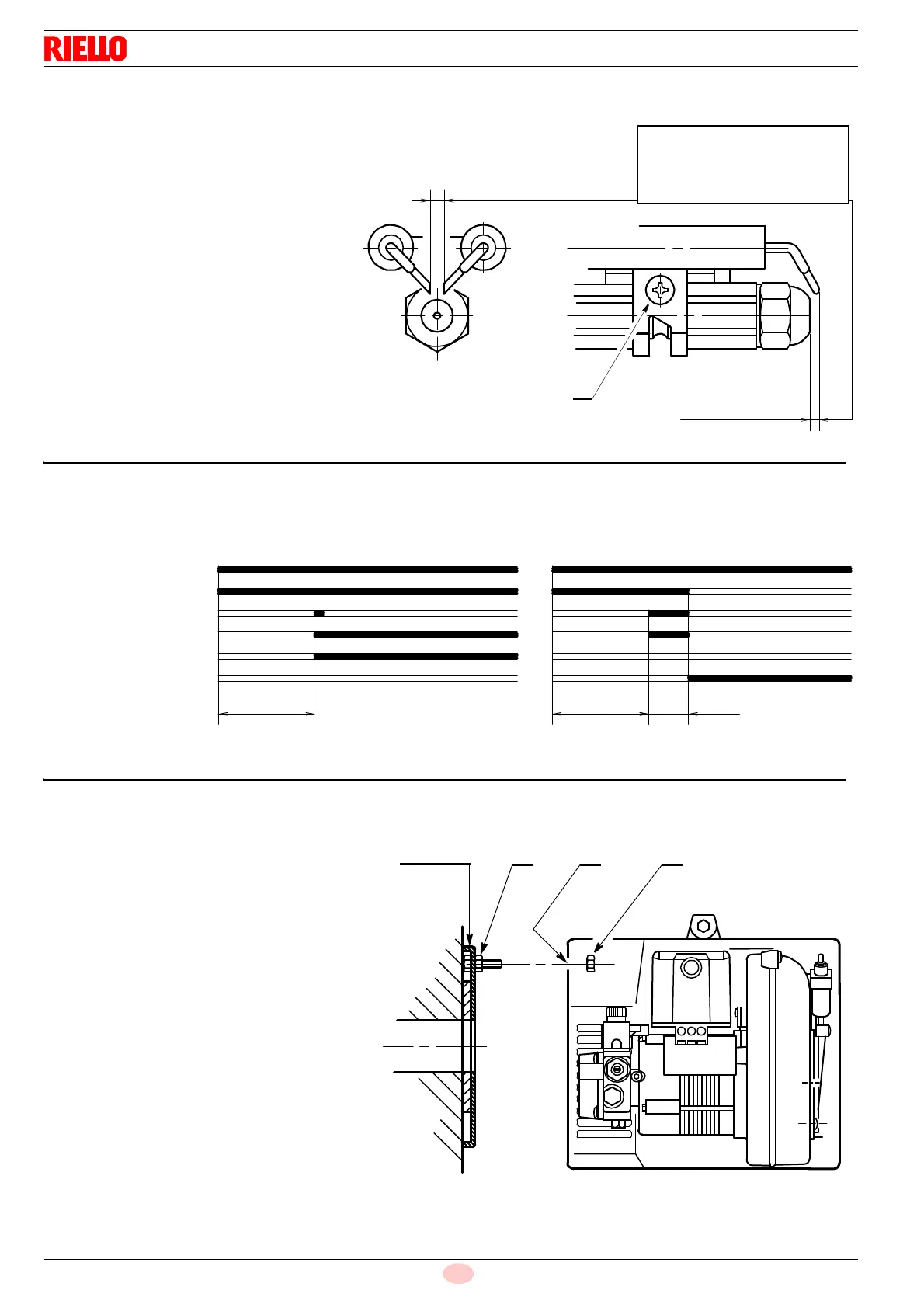

ELECTRODE SETTING
BURNER START-UP CYCLE
MAINTENANCE POSITION
Attention:
Before assembling or removing
the nozzle, loosen the screw (A)
and move the electrodes ahead
2 – 2.5 mm
4 ± 0.3 mm
IMPORTANT:
THESE DIMENSIONS
MUST BE OBSERVED
D5230
A
Normal Lock-out, due to light-failure
Thermostat
Motor
Ignition transformer
Valve
Flame
Lock-out lamp
~ 12s
D5229
~ 12s
~ 5s
Insert in the hole (1) the pin (2)
and fix the burner with the nut
(3) fitted wrong-side up.
312
FLANGE
D5325
