FAMILY
8

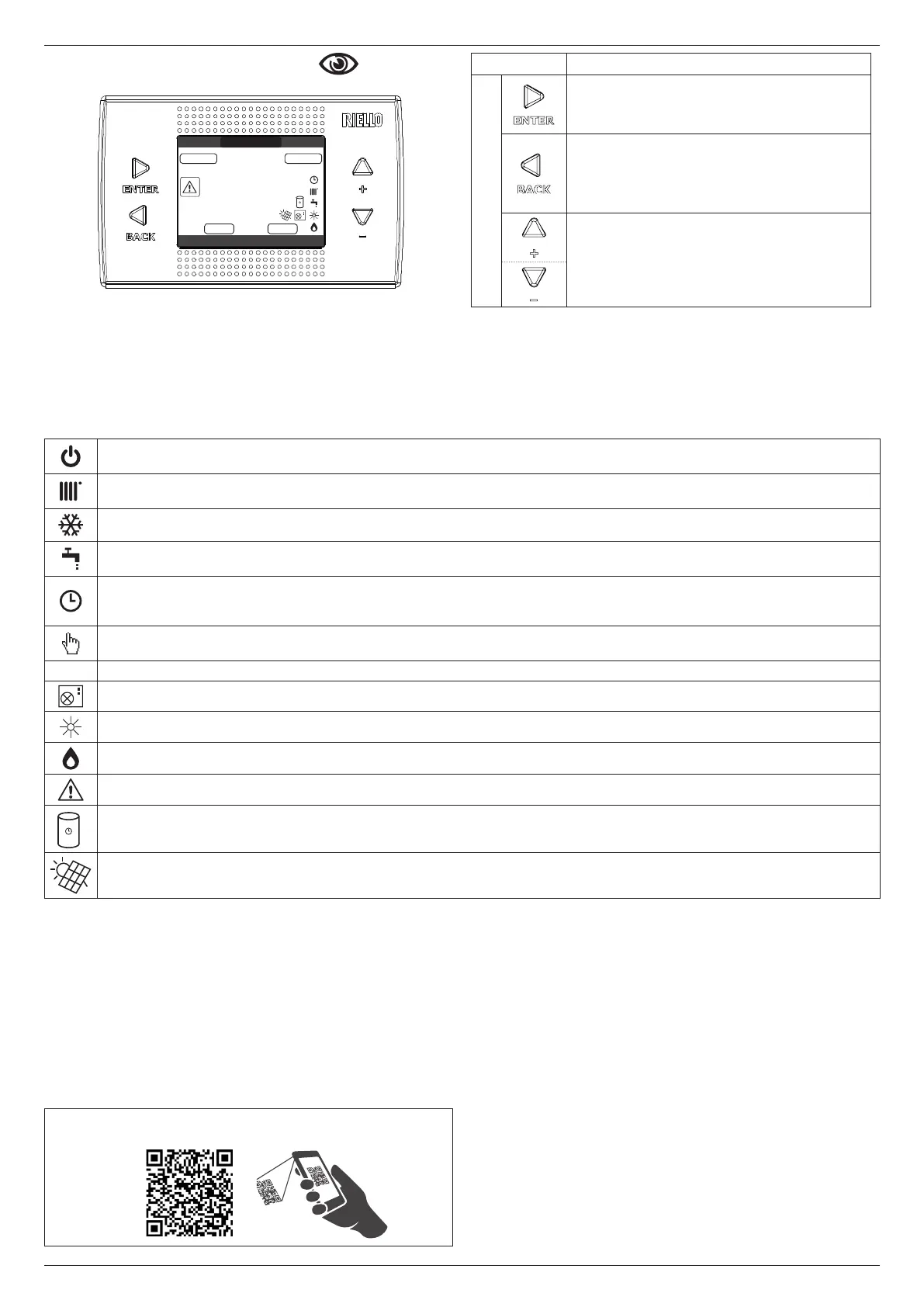

3 CONTROL PANEL (REC10CH)
The REC10CH remote control has the function of a machine interface, displaying the system settings and providing access to the parameters, it also allows the management of functions
related to the solar system and the heat pump (if present).
The middle of the main screen displays the temperature of the domestic hot water probe, unless there is a heat request in heating mode, in this case the delivery temperature of the
boiler is displayed.
The value expressed in bar refers to the system's water pressure.
The top of the screen shows the information regarding the current date and time, as well as the outdoor temperature, if available.
On the left and right sides are displayed the icons indicating the status of the system, their meaning is the following:
The display of the REC10CH control panel is equipped with the new “Color Bar” that rapidly
informs the user about the boiler operation.
The operating states and the alarms are grouped by 4 colours:
- GREEN: normal operation, the system is serving domestic hot water/heating requests or
else automatic functions like, for example, anti-legionella, antifreeze, ue cleaning, etc..
Scrolling text describes the function active in that moment
- YELLOW: presence of faults that could be resolved by the user that allow the product to
operate even partially. An error triangle on the display gives access to details about the
fault like, for example, “call for service”, domestic hot water probe fault, etc...
- RED: presence of lockout faults that require the intervention of the Technical Assistance
Centre. An error triangle on the display gives access to details about the fault like, for
example, “stop for service”, lockout, etc...
- GREY: system is ready to meet any requests or functions, no fault detected.
1.3
bar
42
°C
MENU STATE
SETINFO
09/04/2021 12:17
P
1
2
REC10CH
Boiler control panel
Key area
Confirm
back= return to the previous screen
cancel selection
return to the main screen (press > 2 sec.)
- From the main screen they allow you to choose between the
options: MENU, INFO, SET,
STATE
,
PLANT
.
- From the
sub-menus
they allow you to navigate
through the
different options
This icon indicates that the OFF operating status mode has been set. Each ignition request is ignored except for the anti-freeze function. The pump anti-lock, 3-way valve and anti-
freeze function remain active.
This icon indicates that WINTER mode has been selected (HEATING function enabled). If a heating request from the main zone is in progress, the icon will be flashing.
If there is a CH request from the additional zone, the number 1 or 2 is flashing.
Only if heat pump is present. This icon indicates that cooling is active in the SUMMER state. If a cooling request from the main zone is in progress, the icon is flashing. If a
cooling request from the additional zone is in progress, number 1 is flashing.
This icon indicates that the circuit for domestic hot water production is enabled. When a domestic hot water request is in progress, the icon flashes. The P at the top of the domestic
hot water icon indicates that the boiler pre-heating function is enabled; the P when flashing indicates that a pre-heating request is in progress.
When the "central heating programming timing" function is enabled this icon indicates that the system heating (main zone) is in AUTOMATIC mode (the management of the heating
requests follows what has been set with the timer).
If the heating function is not enabled during the current time frame, the icon will be crossed out.
When the "central heating programming timing" function is enabled this icon indicates that the system heating (main zone) is in MANUAL mode (the management of the heating
requests does not follow what has been set with the programming timing, but it is always active).
OFF This icon indicates that the main zone, when the “central heating programming timing” function is not enabled, has been set to off (not active).
Only if heat pump is present. This icon indicates that the management of a heat pump is enabled. When the heat pump is running, then the icon is flashing.
Only if solar system is present. This icon indicates that the management of a solar system is enabled. When the solar system circulator is running, then the icon is flashing.
This icon indicates that the system is detecting the presence of a flame.
This icon indicates the presence of an anomaly, and is always flashing.
Only with combined boiler and presence of boiler + heat pump enabled for domestic hot water. The icon appears crossed out with an “X” when the system works outside
the activation times of the heat pump in the domestic hot water, while it flashes when the heat pump is in operation to load the boiler.
Only if photovoltaic enabled. When the icon is flashing, it means that the electrical productivity of the photovoltaic system is adequate (closed contact). The system exploits
the available energy.
This manual describes the operation of the boiler with the REC10CH machine inter-
face.
In case of installation of additional elements (heat pump, boiler, solar, photovoltaic
system, etc.) it is necessary to refer to the instructions contained in the “Programming
Manual for the management of hybrid systems”.
If several conditions are present at the same time, the signal on the main screen
corresponds to the highest priority, in the following ascending order: Grey, Green, Yellow
and Red.
The configuration MENU is organised with a multi-level tree structure.
An access level has been fixed for each sub-menu: USER level always available;
TECHNICAL (psw 18)/SERVICE (psw 53) level password protected.
Below is a summary of the MENU tree structure of the REC10CH.
b
Some of the information might not be available on the REC10CH depending
on the access level, the status of the machine or the system conguration.
Scan the QR CODE to access the Programming Manual for managing
hybrid systems
