ENGLISH
5
TECHNICAL DATA
INPUT
This device is a 4 channel A/D converter.
Each channel has a standard input voltage range 0-10V.
This device also provides a 15V unstabilized power supply capable to source 20mA
(100mA max. if connected to an external power supply (12~18V )through the
Jack connector), allowing to supply a low power consumption transducer.

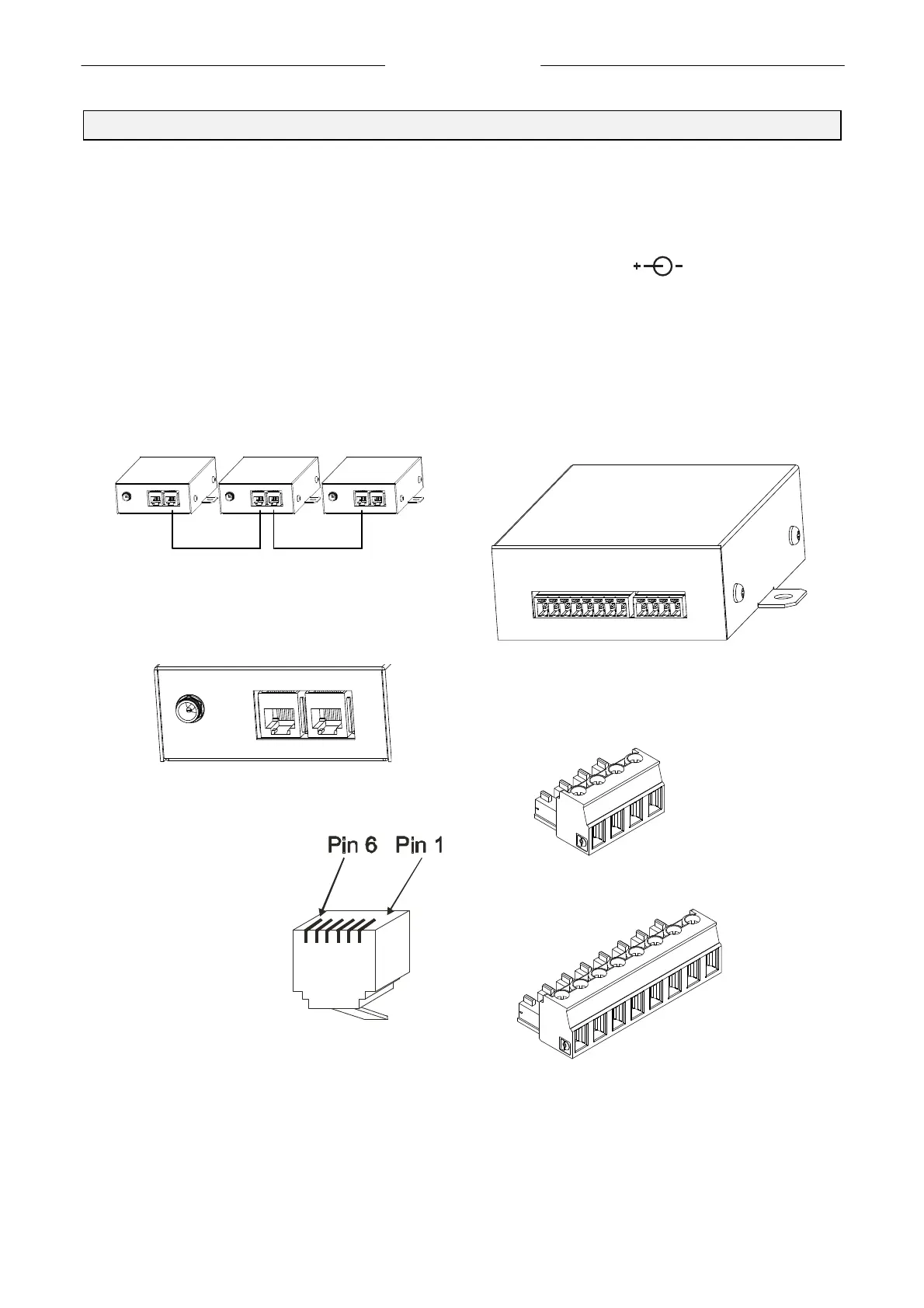

CONNECTIONS
This product has two 1-Wire RJ12 ports for daisy-chain connection (Picture 2, Picture 3,
Picture 5); a Jack connector (Picture 3) to add an external power supply and two
removable terminal blocks (Picture 1) for an easier connection of the analog channels
(Picture 4).
Picture 2 1-Wire ports
DC power
supply output
Analog inputs
Picture 1 Removable terminal blocks
Picture 3 Jack and RJ12 connectors
1. +5V
2. GND
3. Data
4. GND
5. N.C.
6. N.C.
RJ 12 plug
Picture 5 RJ12 connector
+15Vout
GND
+15Vout
GND
Power supply
output
Analog input 1
GND
Analog input 2
GND
Analog input 3
GND
Analog input 4
GND
Analog input
Connector
Picture 4 Terminal block connectors
