CONNECTION OF THE SENSORS TO THE NETMAN PLUS
(only for NetMan 102 plus): For proper working of the communication between
sensors and NetMan 102 plus, it is necessary to guarantee the electrical
continuity (ground connection) between the DB9 hexagonal threaded spacers
and the chassis of the UPS / Solar inverter. Before connecting the sensors is
therefore necessary:

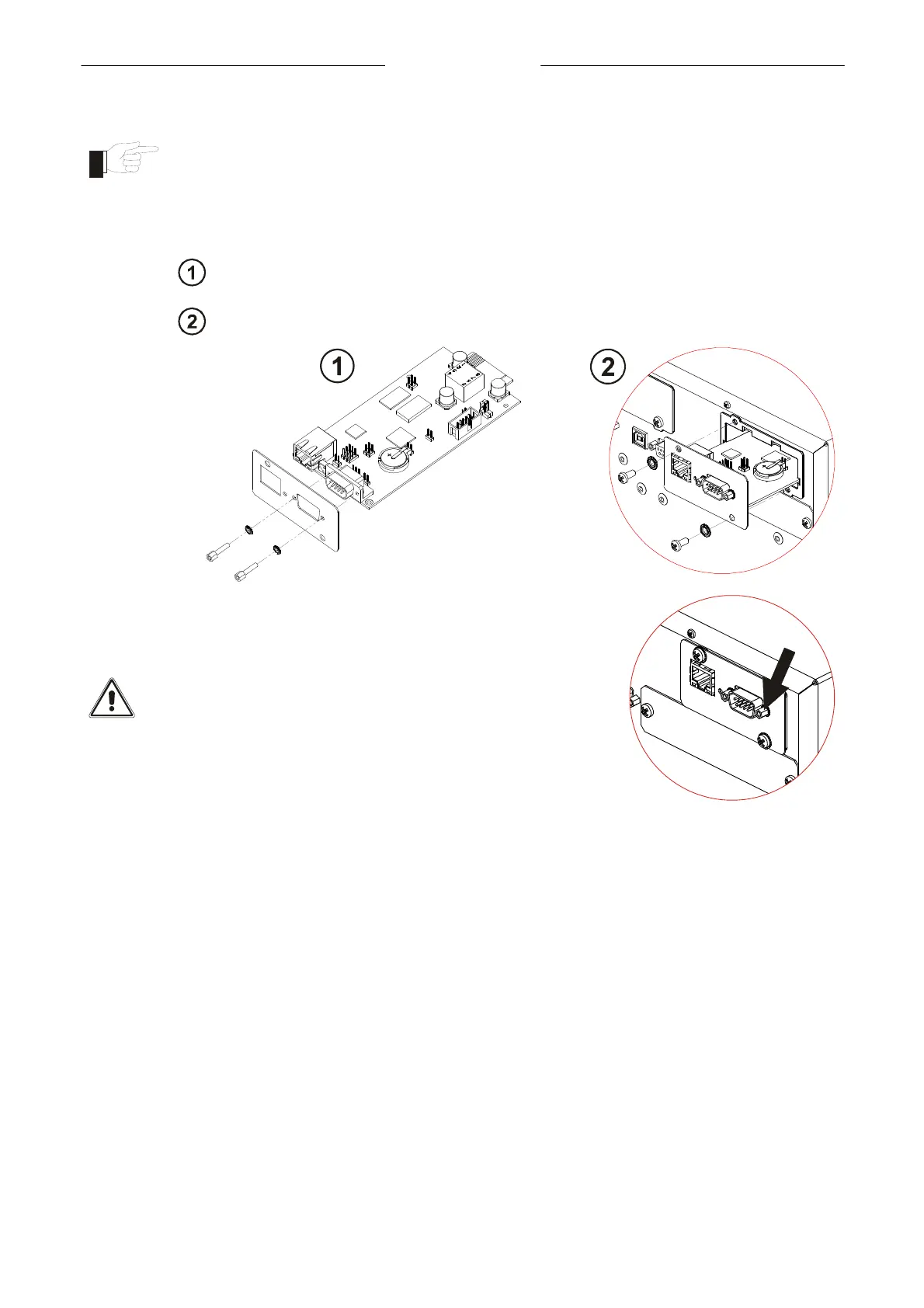

to fix the DB9 spacers and the tooth lock washers (supplied with the
sensor) as shown on the following image
to fix the NetMan to the UPS / Solar inverter with the supplied screws
and tooth lock washers.
By means of a multimeter, check the electrical
continuity between the DB9 hexagonal threaded
spacers (see picture) and the chassis of the UPS
/ Solar inverter.
