Installation
5.12.2 Gas train
Type-approved in accordance with EN 676 and supplied
separately from the burner.
5.12.3 Gas train installation
The gas train must be connected to the gas connection
1)(Fig. 28), using the flange 2), the gasket 3) and the screws 4)
supplied with the burner.
The train can enter the burner from the right or left side,
depending on which is the most convenient, see Fig. 28.
5.12.4 Gas pressure
Tab. K indicates the pressure drops of the combustion head and
gas butterfly valve, on the basis of the burner operating output.
Tab. K
The values shown in Tab. K refer to:
– Natural gas G 20 NCV 9.45 kWh/Sm
3
(8.2 Mcal/Sm
3
)
– Natural gas G 31 NCV 27 kWh/Sm
3
(23.2 Mcal/Sm
3
)
Column 1
Combustion head pressure drop.
Gas pressure measured at test point 1)(Fig. 29 on page 27), with:
– combustion chamber at 0 mbar;
– Burner operating in 2nd stage
– Gas G20 (methane) - G31 (propane)
To calculate
the approximate output at which the burner operates
in the 2nd stage:
– subtract the combustion chamber pressure from the gas
pressure measured at test point 1)(Fig. 29 on page 27).
– Find in Tab. K related to the burner concerned, the pressure
value closest to the result of the subtraction.
– Read the corresponding output on the left.
DANGER
Disconnect the electrical power using the main
switch.
Check that there are no gas leaks.
Pay attention when handling the train: danger of
crushing of limbs.
Make sure that the gas train is properly installed
by checking for any fuel leaks.
The operator must use the required equipment
during installation.

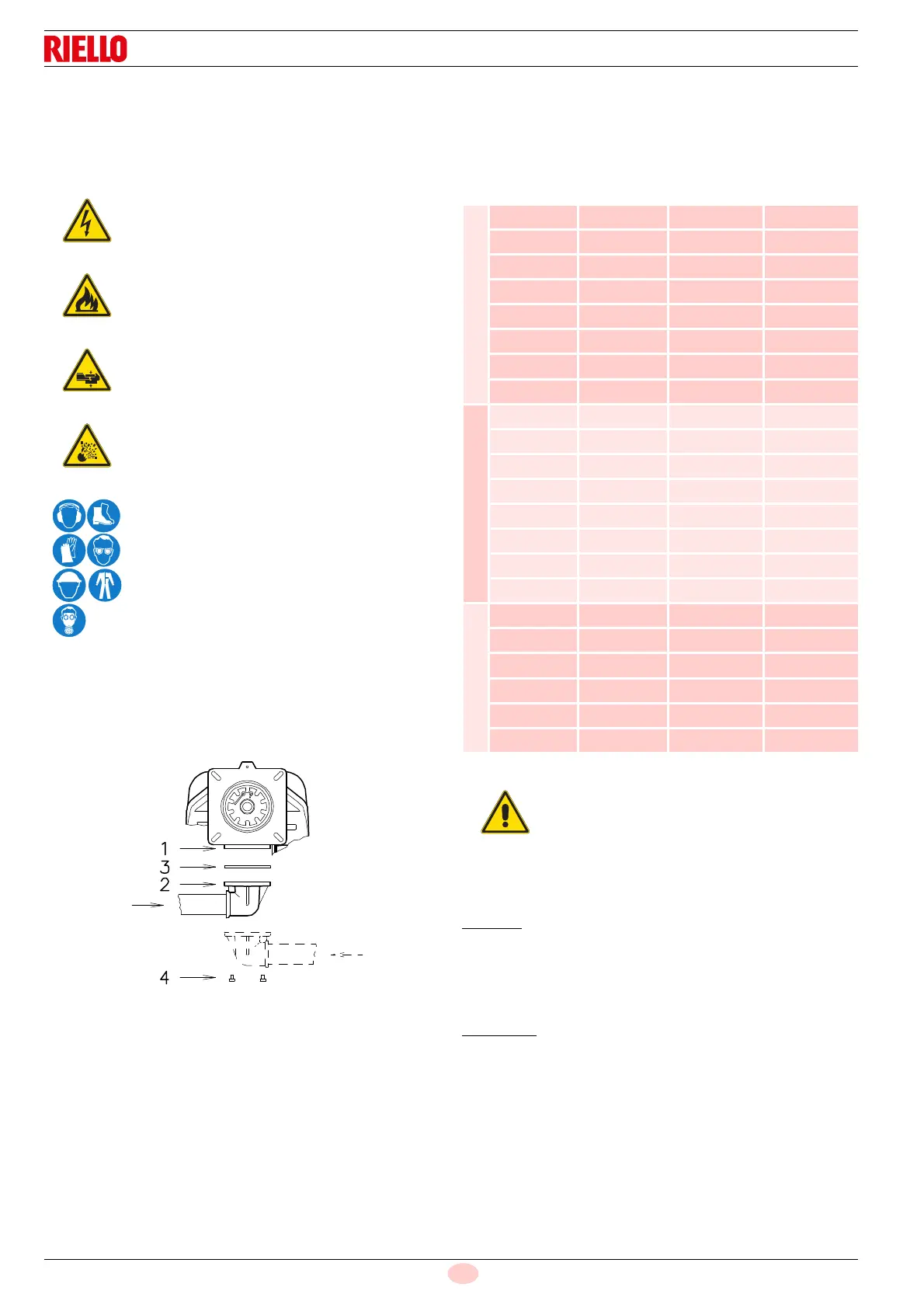

Fig. 28
D722
kW
1 p (mbar)
G20 G25 G31
RLS 70
465 5.5 8.2 6.3
515 5.6 8.3 6.4
565 5.7 8.5 6.5
615 5.8 8.6 6.7
665 5.9 8.8 6.8
715 6.0 8.9 7.1
765 6.1 9.1 7.4
814 6.2 9.2 7.8
RLS 100
698 8.0 11.9 10.3
760 8.3 12.4 10.5
825 8.6 12.8 10.8
890 8.9 13.3 11.1
955 9.2 13.7 11.4
1020 9.4 14.0 11.6
1085 9.7 14.5 11.8
1163 10.0 14.9 12.0
RLS 130
930 9.3 13.9 10.5
1010 9.5 14.2 10.9
1090 9.7 14.5 11.4
1170 9.9 14.8 11.8
1250 10.4 15.5 12.9
1395 11.5 17.1 14.4
ATTENTION
Data of head thermal power and gas pressure
refer to operation with gas butterfly valve fully
open (90°).
