Shackmaster™ Power 500 DC Power Supply Instruction Manual

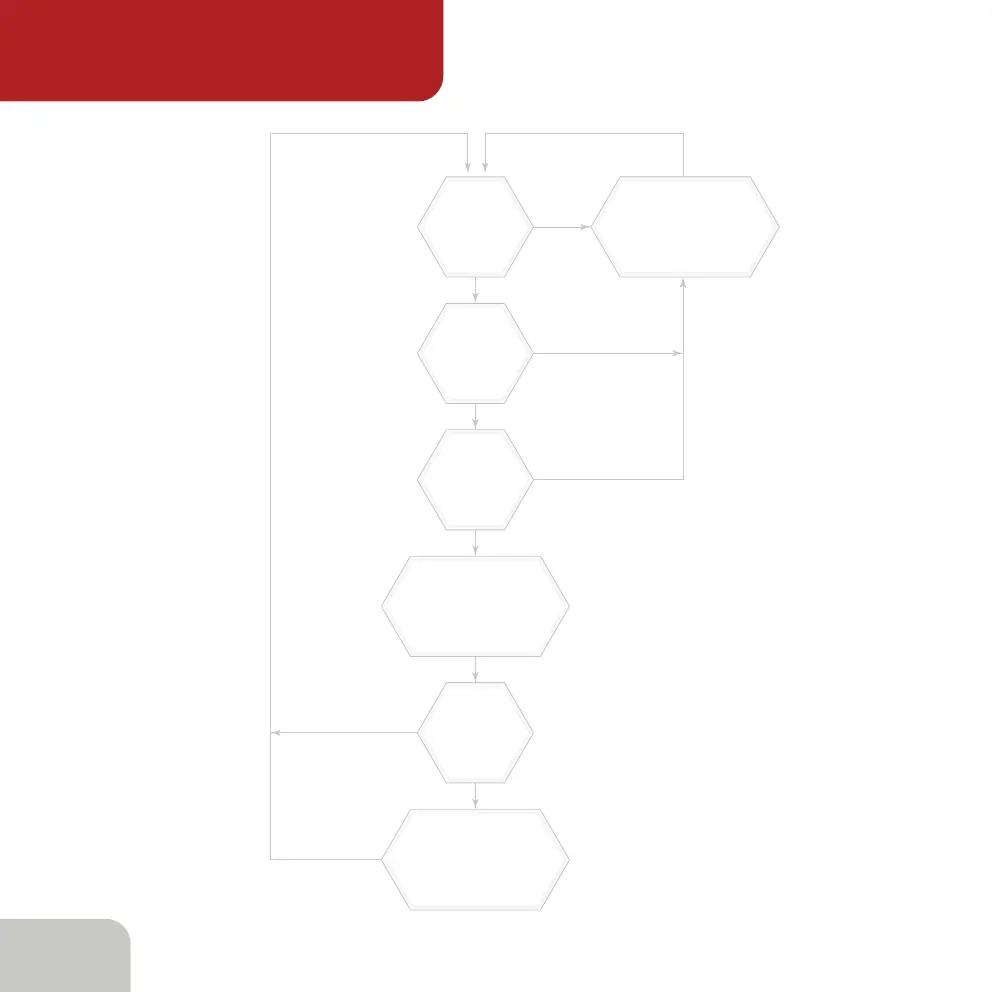

Intelligent
Protection System
Kp1 = f (Umains)
Kp2 = f (Tair)
Ppermitted =
500W * min(Kp1, Kp2)
Pconsumed >
Ppermitted?
Show Warning Message
(Yellow text on Black screen)
Swich Power Output OFF
& Show Error Message
(White text on Red screen)
Mains Voltage
< 80 or > 264 ?
Air Temp.
< -22°F(-30°C)
or
> 158°F(70°C)?
Rectifier Temp.
> 185°F(85°C)?
YES
YES
YES
NO
