Rigol DS1074Z Plus Quick Guide

RIGOL
DS1000Z Quick Guide
5
Connect the Logic Probe:
1. Connect the single-wire terminal of the logic probe to the digital channel input
terminal on the front panel of the oscilloscope in the correct direction.
2. Connect the other terminal of the logic probe to the signal under test. RIGOL
provides DS1000Z Plus with the RPL1116 logic probe option. To realize
convenient and flexible detection of signals, two connection methods for the
signal under test are available. For the details, please refer to the
RPL1116 Logic
Probe User Guide
.

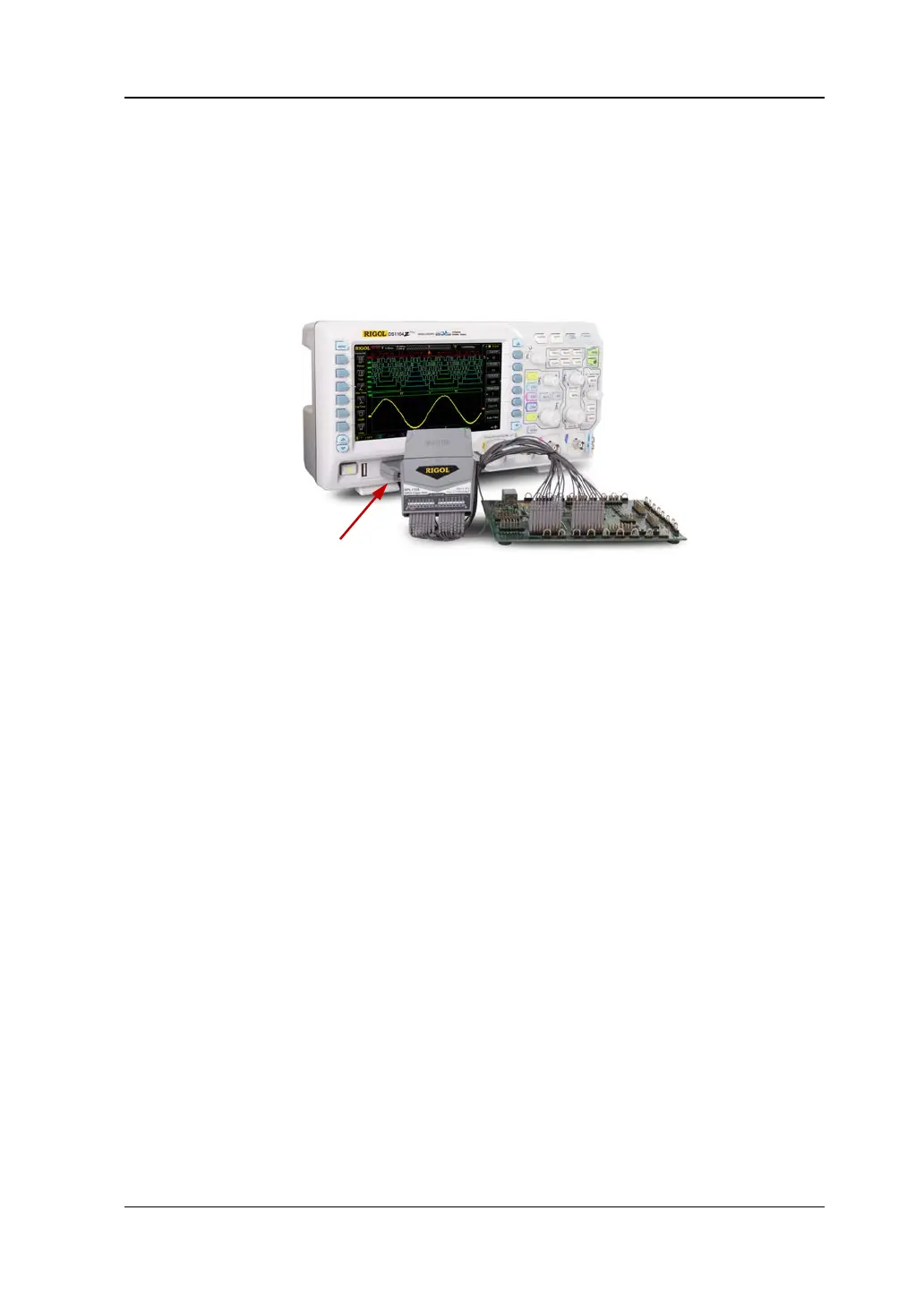

Figure 6 To Connect the Logic Probe
Note: The digital channel input terminal does not support hot plugging. Please do
not insert or pull out the logic probe when the instrument is in power-on state.
Digital Channel Input Terminal

Rigol DS1074Z Plus Specifications

General

Type	Tabletop
Product type	-
Certification	UL 61010-1:2004; CAN/CSA-C22.2 NO. 61010-1-2004; EN 61010-1:2001; IEC 61010-1:2001
Bandwidth	70 MHz
Sampling rate	- MS/s
Channels quantity	4 channels
Minimum time base setting (per division)	5 ns
Power consumption (max)	50 W
Display diagonal	7 \
Non-operating altitude	3000 - 15000 m
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C

Weight and Dimensions

Depth	122.4 mm
Width	313.1 mm
Height	160.8 mm
