Rigol DS1102D Service Guide

Chapter 5 Disassembly and Assembly RIGOL
Service Guide for DS1000E, DS1000D Series
5-5
Disassemble and Assemble the Upper and Rear
Covers

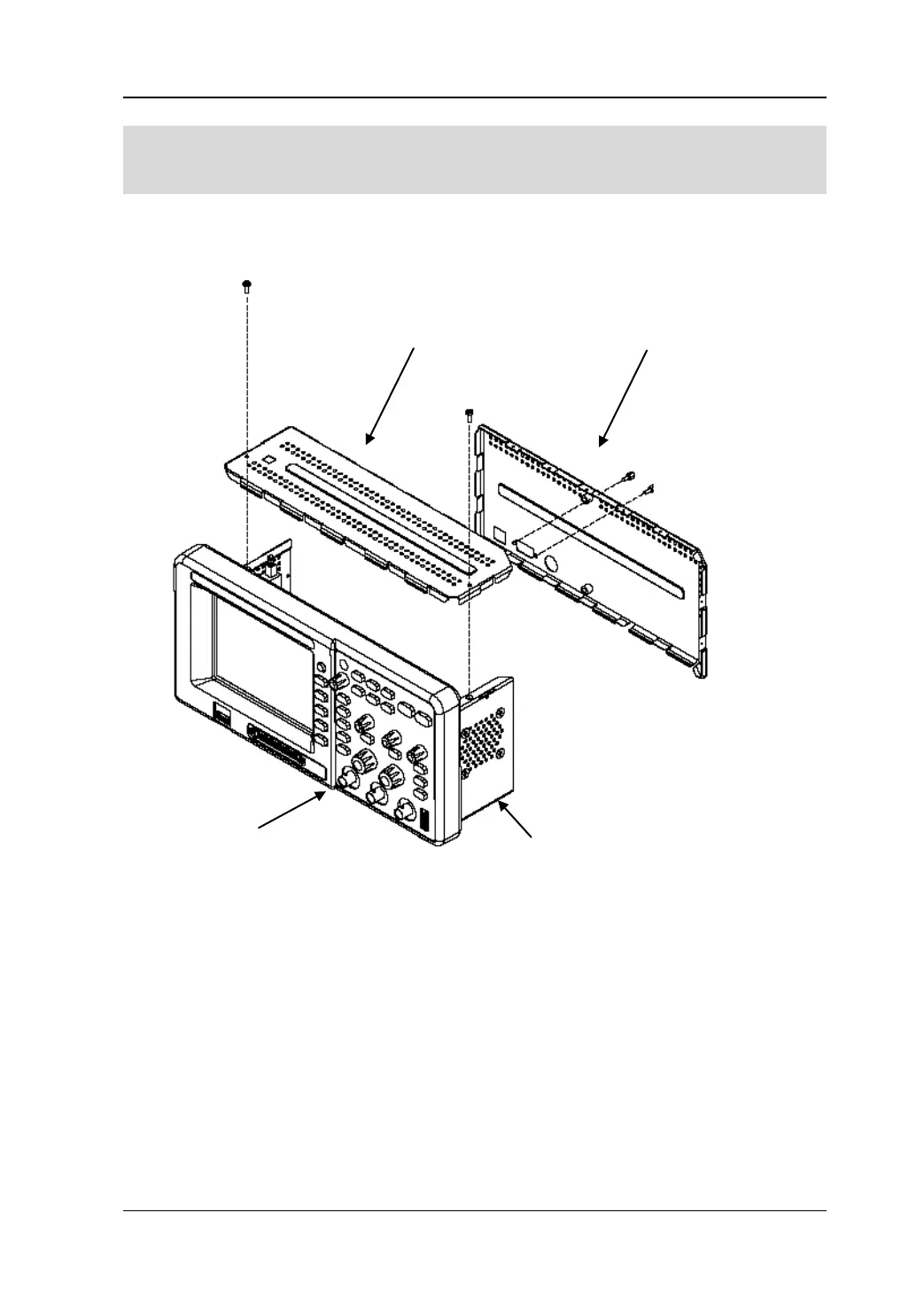

Figure 5-3 Disassemble and assemble the upper and rear covers
Parts Explanations:
③ Bolts at the interface of RS-232 (DB9 interface bolts): 2
④ Bolts at the upper cover (M3*6 Pan head Torx recess composite machine screws):
2
Disassemble steps:
1. Backout the two bolts ③ and remove the rear cover;
2. Backout the two bolts ④ using a TORX driver (T10); Then, remove the upper
cover.
④
③
③
④
Panel
Tank Body
Upper Cover
Rear Cover
