User’s Guide for DS1000E, DS1000D Series
2-76

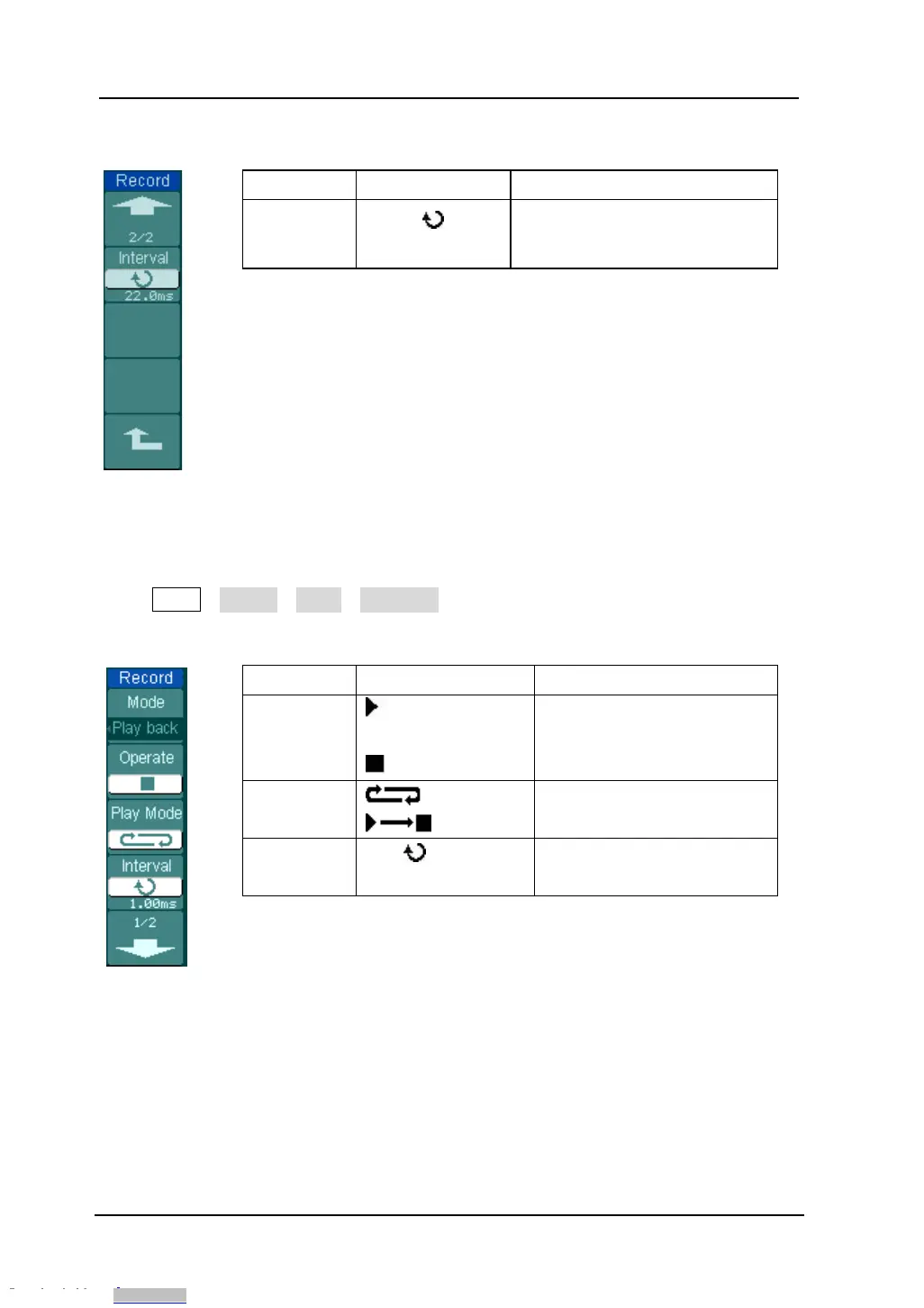

Figure 2- 102 Table 2- 65 The Record menu (Page 2/2)
3. Play back: Play back the recorded waveforms.
Press Utility→Record→Mode→Play back to go to the following menu.
Figure 2- 103 Table 2- 66 The Record menu (Page 1/2)
Menu Settings Comments
Operate
(Run)
(Stop)
Play stopped,
press to
Start playback
Playing, press to stop
Play mode
Set repeat play mode
Set single time play mode
Interval
<1.00ms-20s>
Set up interval
Menu
Settings
Comments
Interval
<1.00ms-1000s>
Set time interval
