User’s Guide for DS1000E, DS1000D Series
2-77

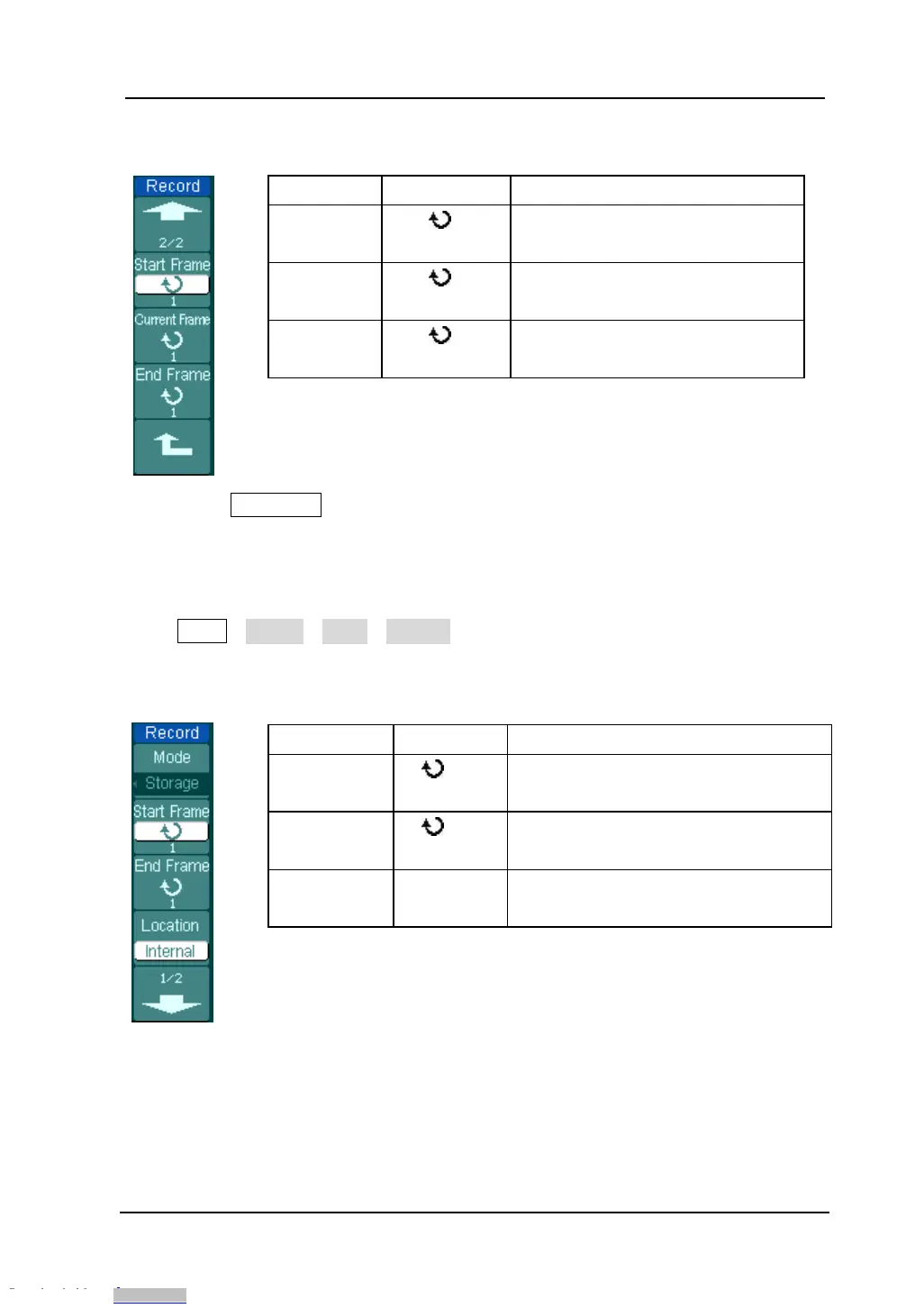

Figure 2- 104 Table 2- 67 The Record menu (Page 2/2)
Menu
Settings
Comments
Start
Frame
<1-1000>
Set start frame
Current
Frame
<1-1000>
Select current frame to be played
End Frame
<1-1000>
Set End frame
NOTE: The RUN/STOP button can also replay or continue the waveform display.
4. Storage: Store recorded waveforms to non-volatile memory according to setup
frames.
Press Utility→Record→Mode→Storage to go to the following menu.
Figure 2- 105 Table 2- 68 The Storage menu (Page 1/2)
Menu Settings Comments
Start Frame
<1-1000>
Set first frame to be saved
End Frame
<1-1000>
Set last frame to be saved
Location
Internal
external
Set up Store location
