User’s Guide for DS1000E, DS1000D Series
2-36
Edge Trigger
Edge Trigger Mode; An edge trigger determines whether the oscilloscope finds
the trigger point on the rising or the falling edge of a signal. Select Edge trigger
Mode to trigger on Rising edge, falling edge or rising & falling edge.

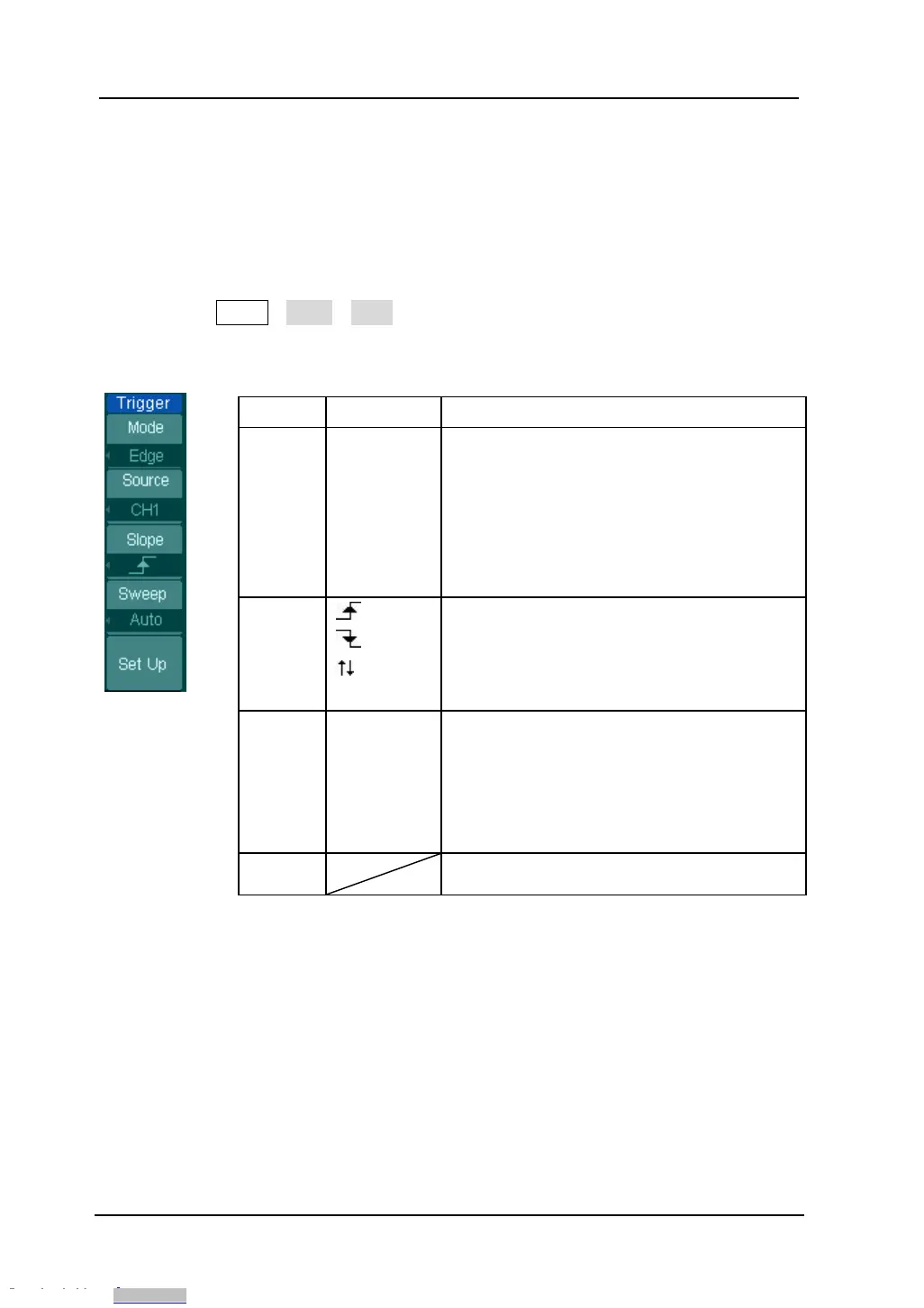

Press Trigger MENU→Mode→Edge to display the edge trigger menu as follows.
Figure 2- 42 Table 2- 20 The Edge Trigger Menu
Menu Settings Comments
Source
CH1
CH2
EXT
AC Line
D15-D0
Select CH1 as trigger signal
Select CH2 as trigger signal
Select EXT TRIG as trigger signal
Select power line as trigger signal
Select a digital channel in D15-
D0 as
trigger source (for DS1000D series)
Slope
Rising
Falling
Rising &
Falling
Trigger on rising edge
Trigger on falling edge
Trigger on both ring & falling edge
Sweep
Auto
Normal
Single
Acquire waveform even no trigger
occurred
Acquire waveform when trigger occurred.
When trigger occurs,
acquire one
waveform then stop
Set up To go to Set Up menu, see table 2-38
