User’s Guide for DS1000E, DS1000D Series
2-37
Pulse Width Trigger
Pulse Width Trigger Mode: Pulse trigger occurs according to the width of pulse.
The abnormal signals can be detected through setting up the pulse width condition.
Press Trigger MENU→Mode→Pulse to display the pulse width trigger menu as
follows.

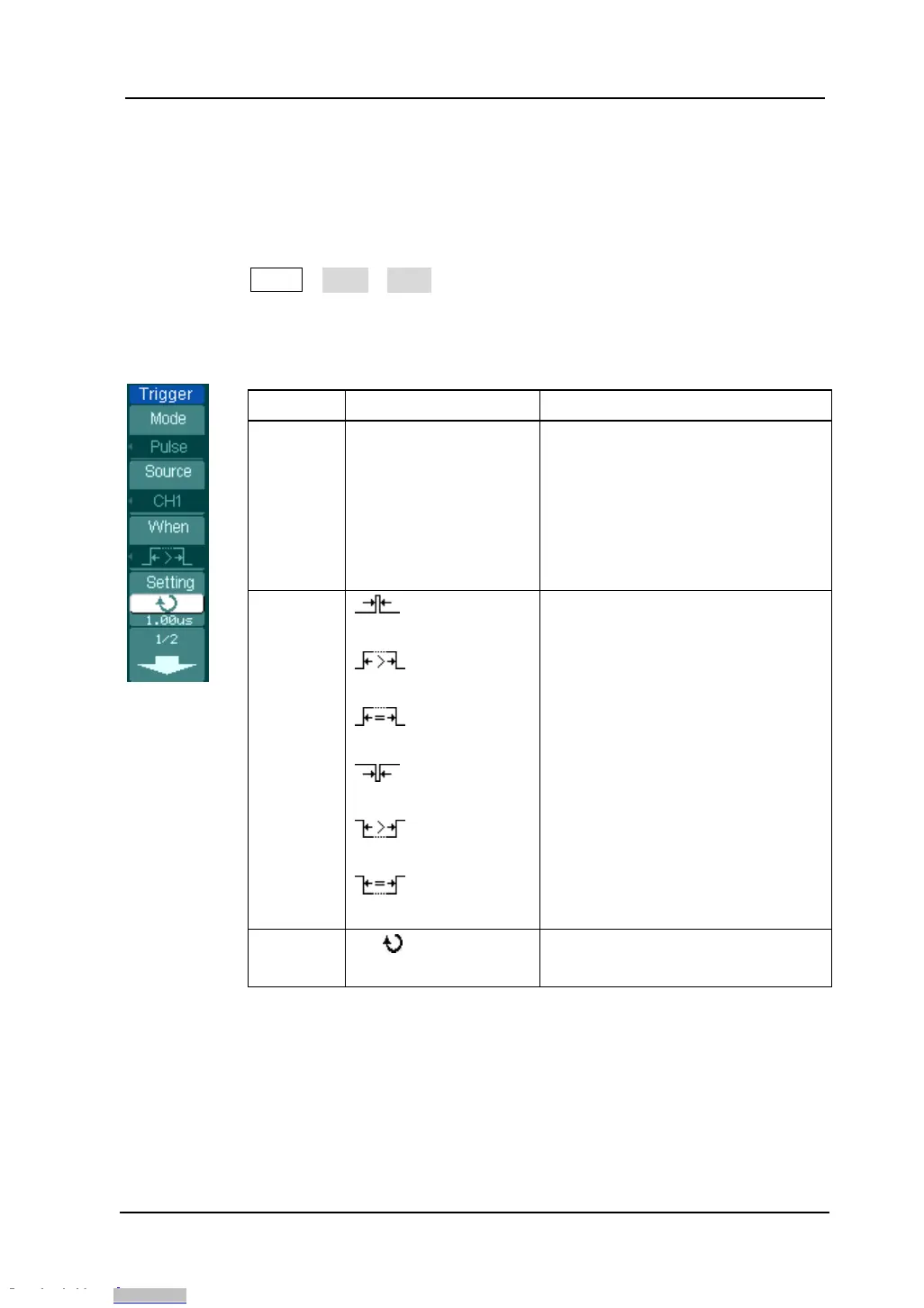

Figure 2- 43 Table 2- 21 The Pulse Width Trigger Menu (page 1/2)
Menu Settings Comments
Source
CH1
CH2
EXT
D15-D0
Selects CH1 as trigger signal
Select CH2 as trigger signal
Select EXT TRIG as trigger signal
Select a
digital channel in
D15-
D0 as trigger source( Only
for DS1000D series)
When
(
+Pulse width
less than)
(+Pulse width
more than)
(+Pulse width
equal to)
(-
Pulse width
less than)
(-
Pulse width
more than)
(-
Pulse width
equal to)
To select pulse condition
Settings
<Width>
Set required pulse width
