Chapter 1 Quick Start RIGOL
MSO1000Z/DS1000Z User’s Guide 1-19
User Interface
MSO1000Z/DS1000Z provides 7.0 inch WVGA (800*480) TFT LCD.

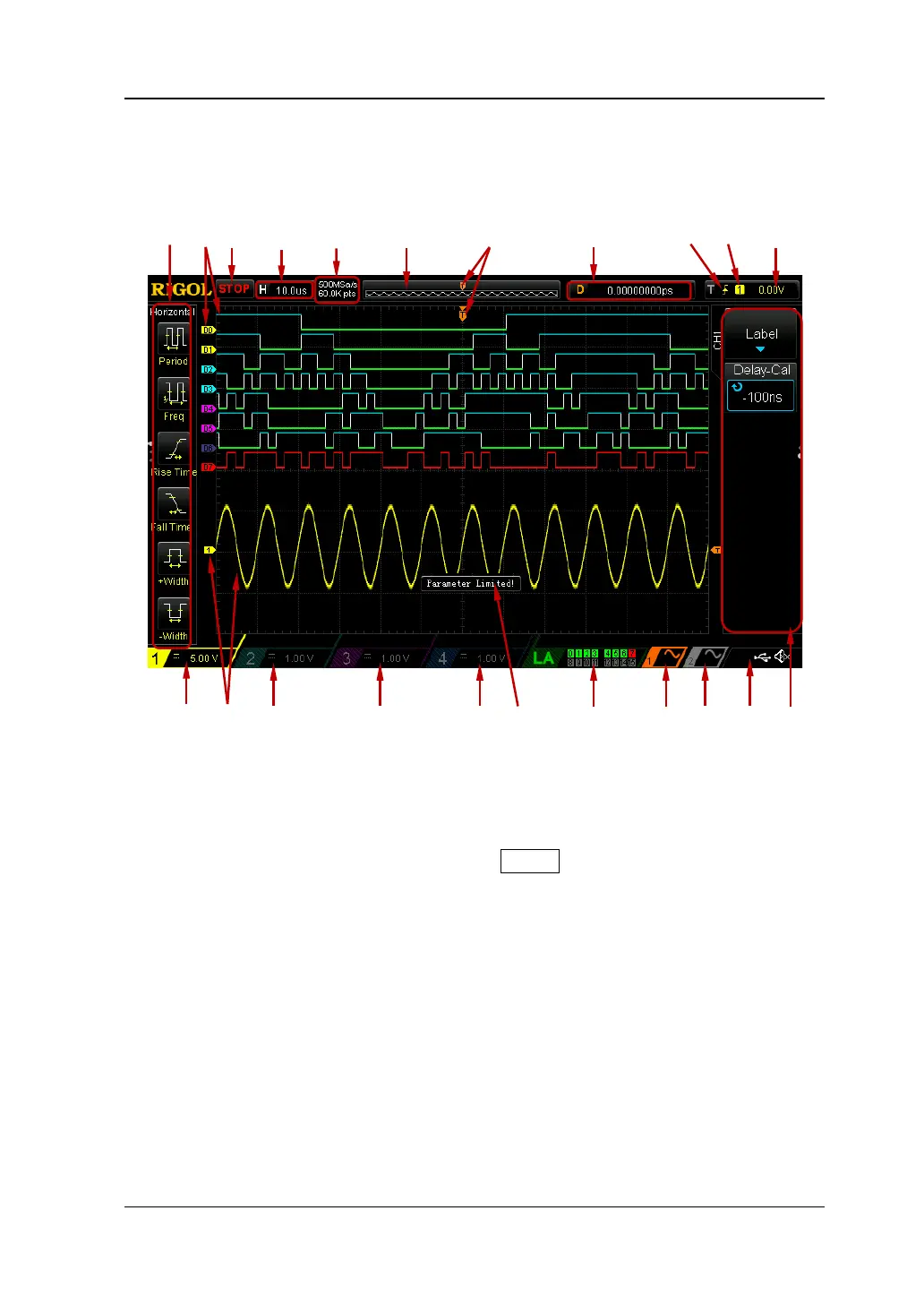

Figure 1-12 User Interface
1. Auto Measurement Items
Provide 20 horizontal (HORIZONTAL) and 17 vertical (VERTICAL) measurement
parameters. Press the softkey at the left of the screen to activate the
corresponding measurement item. Press MENU continuously to switch between
the horizontal and vertical parameters.
2. Digital Channel Label/Waveform
The logic high level of the digital waveform is displayed in blue and the logic low
level in green. Its edge is displayed in white. The waveform of the digital
channel currently selected and the channel label are displayed in red. The digital
channels can be divided into 4 channel groups by the grouping setting function
of the logic analyzer function menu. The channel labels of the same channel
group are displayed in the same color; different channel groups are marked with
different colors.
Note: This function is only applicable to MSO1000Z and DS1000Z Plus with the
MSO upgrade option.
12 13 14 15 16 17 18 19 20 21 22
1 2 3 4 5 6 7 8 9 10 11
