DS6000 Quick Guide
Installation Procedures
Only authorized operators can execute the installation operation. Improper
installation might result in damage of the instrument or incorrect installation of the
instrument on the rack.

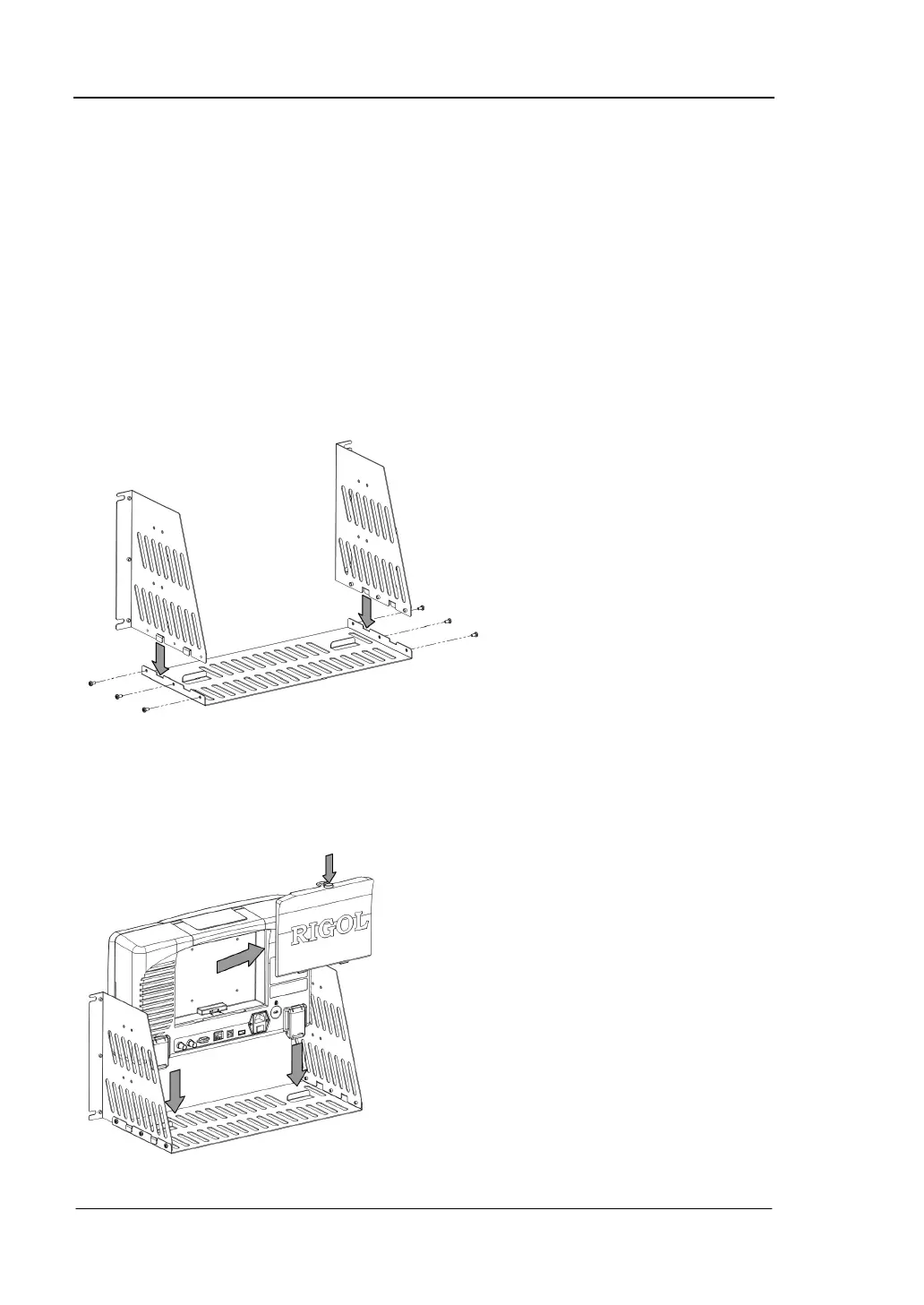

1. Install the right and left plates: align the detents of the right and left plates with
the openings on the support board and insert them into the support board
respectively, then fix them with six M4 screws.
2. Place the Instrument: press the button above the battery on the instrument to
remove the battery. Then align the instrument with the spacing on the support
board and place it on the support board.
To Next Page
