RIGOL
DS6000 Quick Guide
25

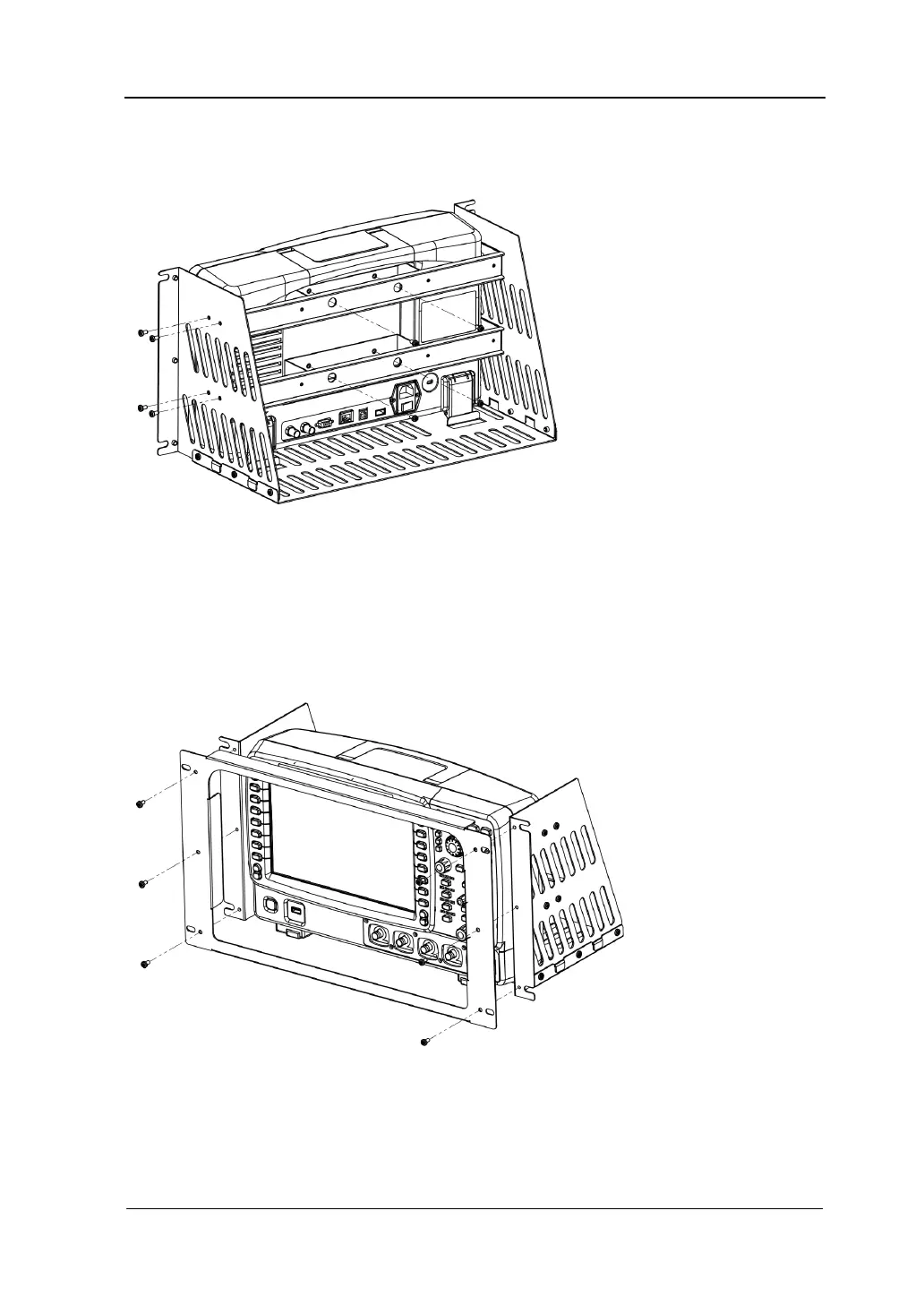

3. Fix the instrument: fix the instrument on the support board with two back
battens and twelve M4 screws.
4. Install the front panel: align the screw holes on the right and left plates with the
screw holes on the front panel of the rack and let the front panel of the
oscilloscope protrude from the opening. Then fix them with six M4 screws.
