DSA1000&DSA1000A Options&Accessories
18
3. Space Requirements for Installation
The following requirements must be fulfilled by the machine cabinet in which the
instrument is mounted.
 Dimension of the machine cabinet must be standard 19-inch.
 At least 6U (266.7mm) space should be provided by the machine cabinet.
 The depth inside the machine cabinet should not be less than 300 mm.

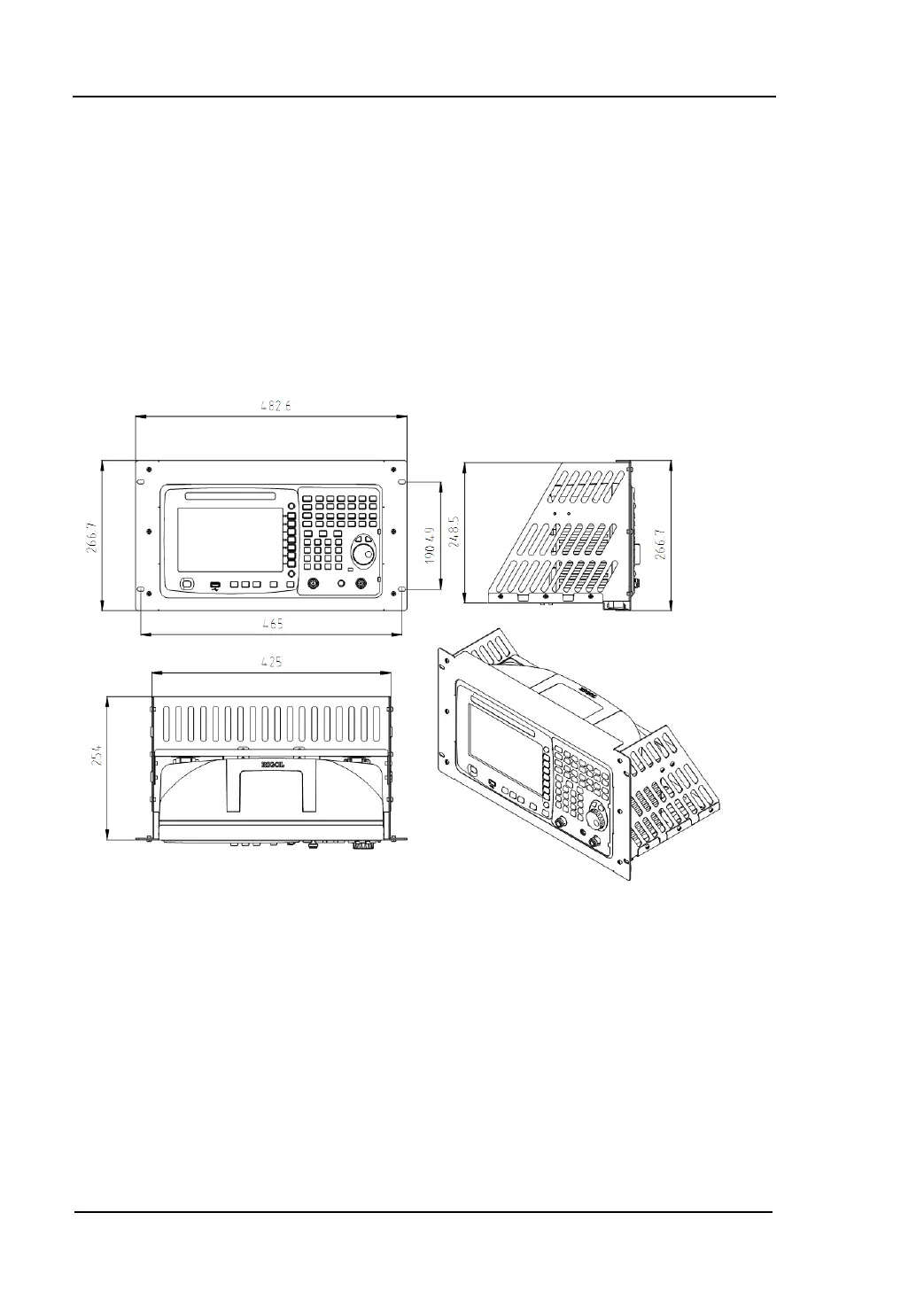

The dimension of the instrument after being installed is shown below.
