DSA1000&DSA1000A Options&Accessories
Advanced Measurement Functions
Option DSA1000-AMK provides plenty of advanced measurement functions including
T-Power (Time domain Power), ACP (Adjacent Channel Power), Chan Pwr (Channel
Power), OBW (Occupied Bandwidth), EBW (Emission Bandwidth), C/N Ratio, Harmo
Dist (Harmonic Distortion), TOI (Third Order Intermodulation) and Pass/Fail. The
measure mode can be Single or Continuous and you can control the measurement
status: Restart, Pause or Resume.
Pressing the front panel key Meas, the corresponding menu will appear on the right
of the screen. Press Meas Fctn and choose a measurement function. The screen will
be divided into two windows. The upper one is for basic measure, displaying sweep
trace, and the lower one shows the measurement results.

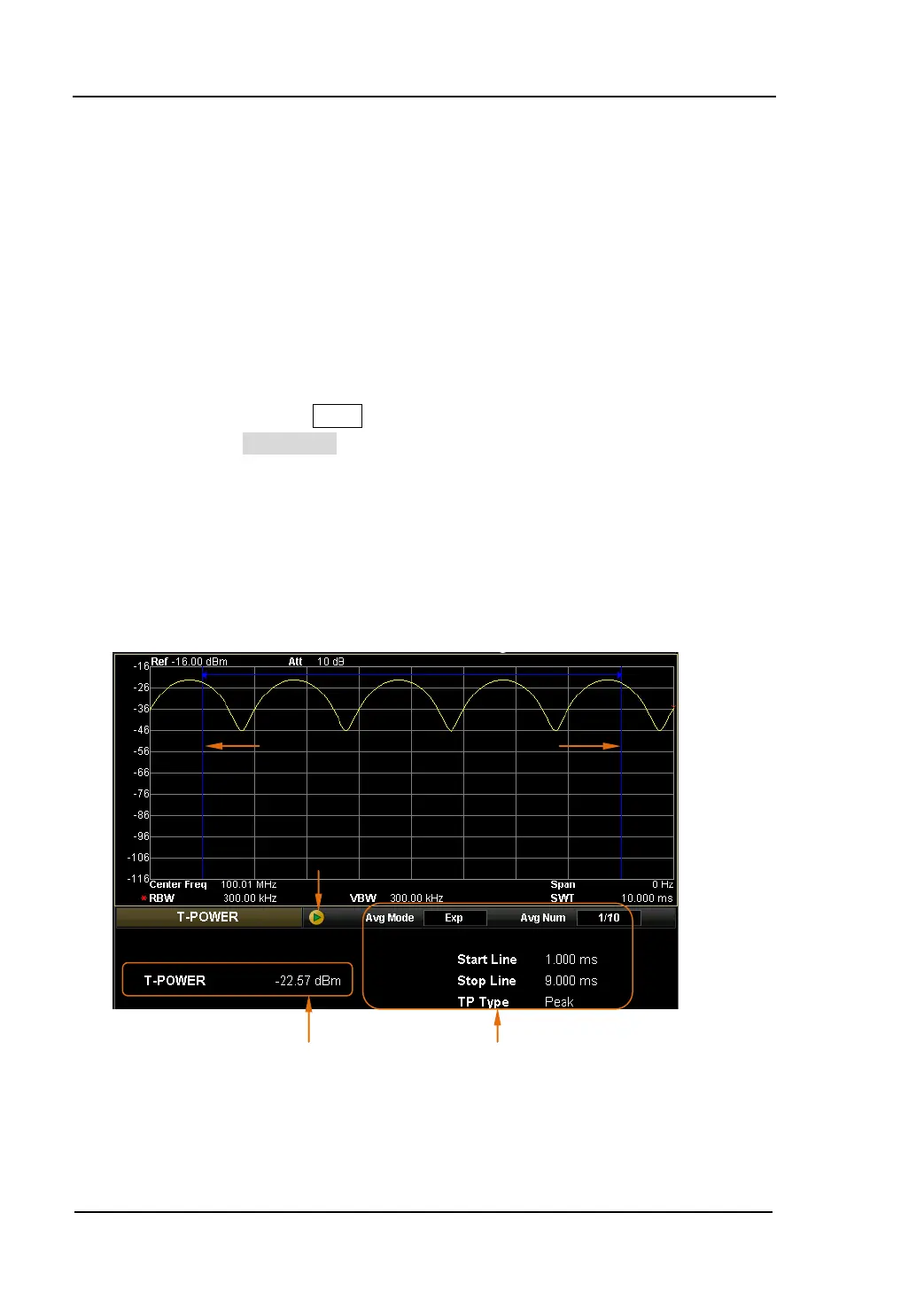

1. T-Power (Time domain Power)
Enables the Zero Span Mode and calculates the power within time domain. The
measurable power types are Peak, Average and RMS.
Measured Result Parameters
