Chapter 2 Front Panel Operation RIGOL
User’s Guide for DSA800/E Series
2-55
T-Power
Measurement Interface:

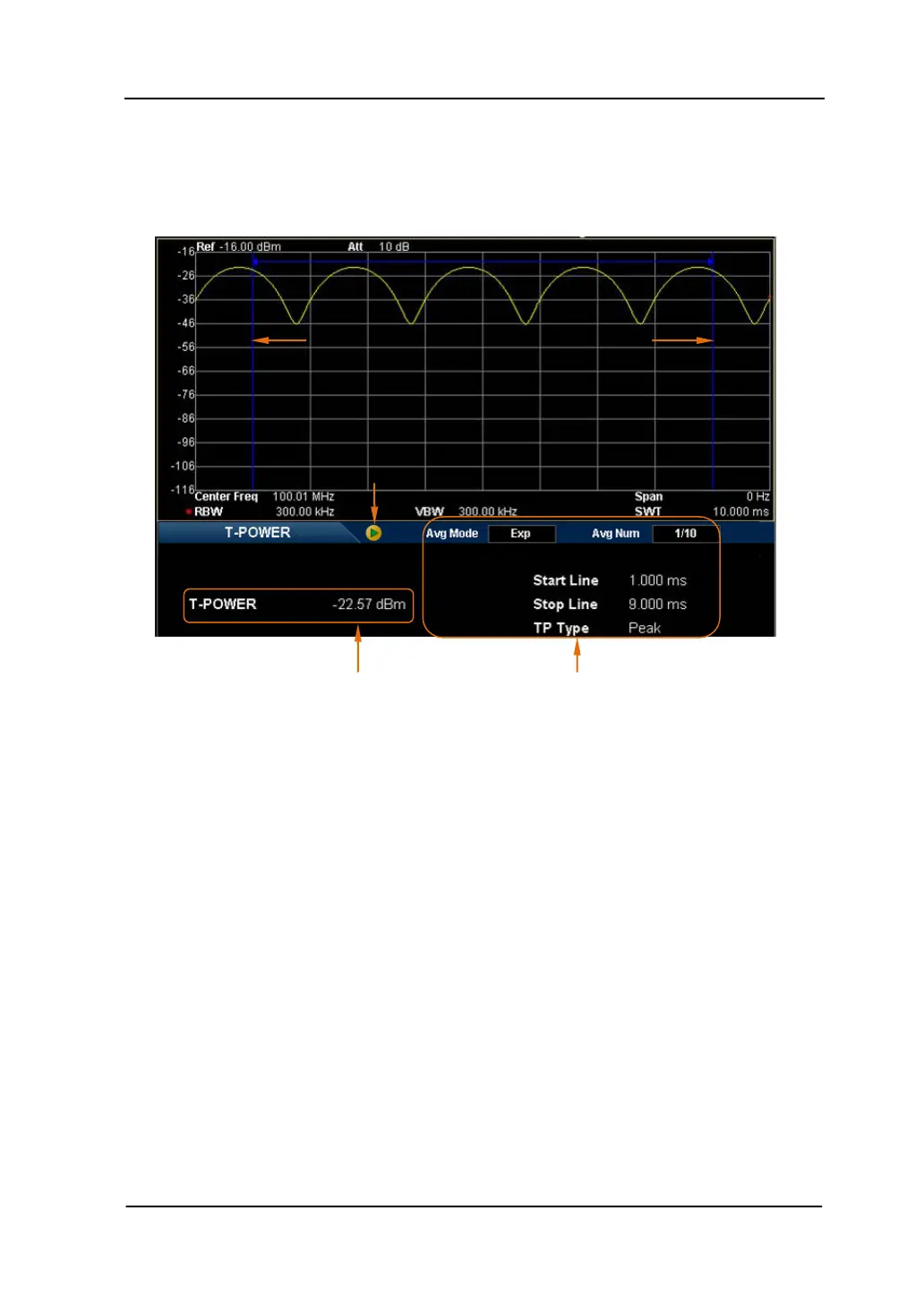

Figure 2-14 T-Power Measurement Interface
Measurement Result: T-power, namely the power of the signal from the start
line to the stop line.
Measurement Parameters: average number, average mode, TP type, start line
and stop line.
1. Avg Num
Specify the number of averages used when calculating the measurement
result. The default is “Off”. You can use the numeric keys, knob or direction
keys to modify this parameter.
Measurement Result Measurement Parameters
Measurement Control
Start Line Stop Line
