Chapter 1 Quick Start RIGOL
User’s Guide for DSA800/E Series
Rear Panel

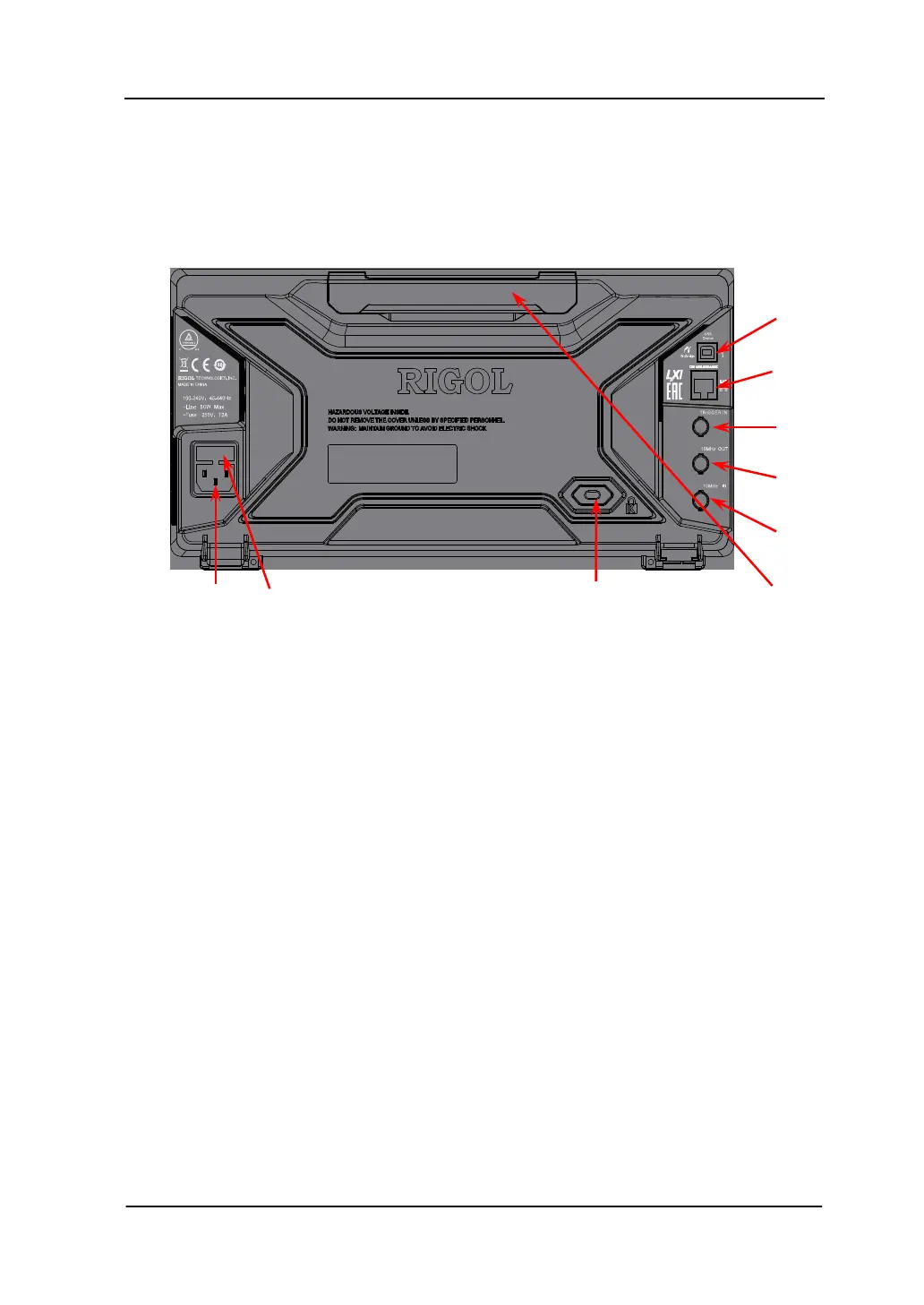

The rear panel of DSA800/E is as shown in the figure below.
Figure 1-9 Rear Panel
1. AC Power Connector
The AC power supply specification of this spectrum analyzer is 100-240 V,
45-440 Hz.
2. Fuse Seat
You can replace the fuse. DSA800/E supports 250V AC, T2A fuse.
3. Security Lock Hole
If needed, you can use a security lock (buy it yourself) to lock the analyzer to
a desired location.
4. Handle
Users can adjust the handle to the vertical position for easier carry of the
analyzer.
5. 10MHz IN
DSA800/E can use internal or external reference source.
When a 10 MHz external clock signal is received through the [10MHz IN]
9
8
7
6
5
4
To Next Page
