Tips:
You can also install the option by controlling the spectrum analyzer remotely.
1. Build the communication between the analyzer and PC using USB, LAN or
GPIB (option) interface. About the connection method, please refer to the
descriptions of “Remote Control”.
2. Send the :SYSTem:LKEY <license key> command, for
example, :SYSTem:LKEY DASXZJWFDAMPGSN7VAW9HTM8YCCA, the
analyzer identifies the received license key and matches it to the
corresponding option automatically. At this point, the option is installed and
activated (Y is displayed in the Active column).
TX1000 (Option)
DSA800/E supports RIGOL TX1000 series spectrum analyzer RF Demo Kit. Press
this key to open the TX1000 control panel as shown in the figure below.

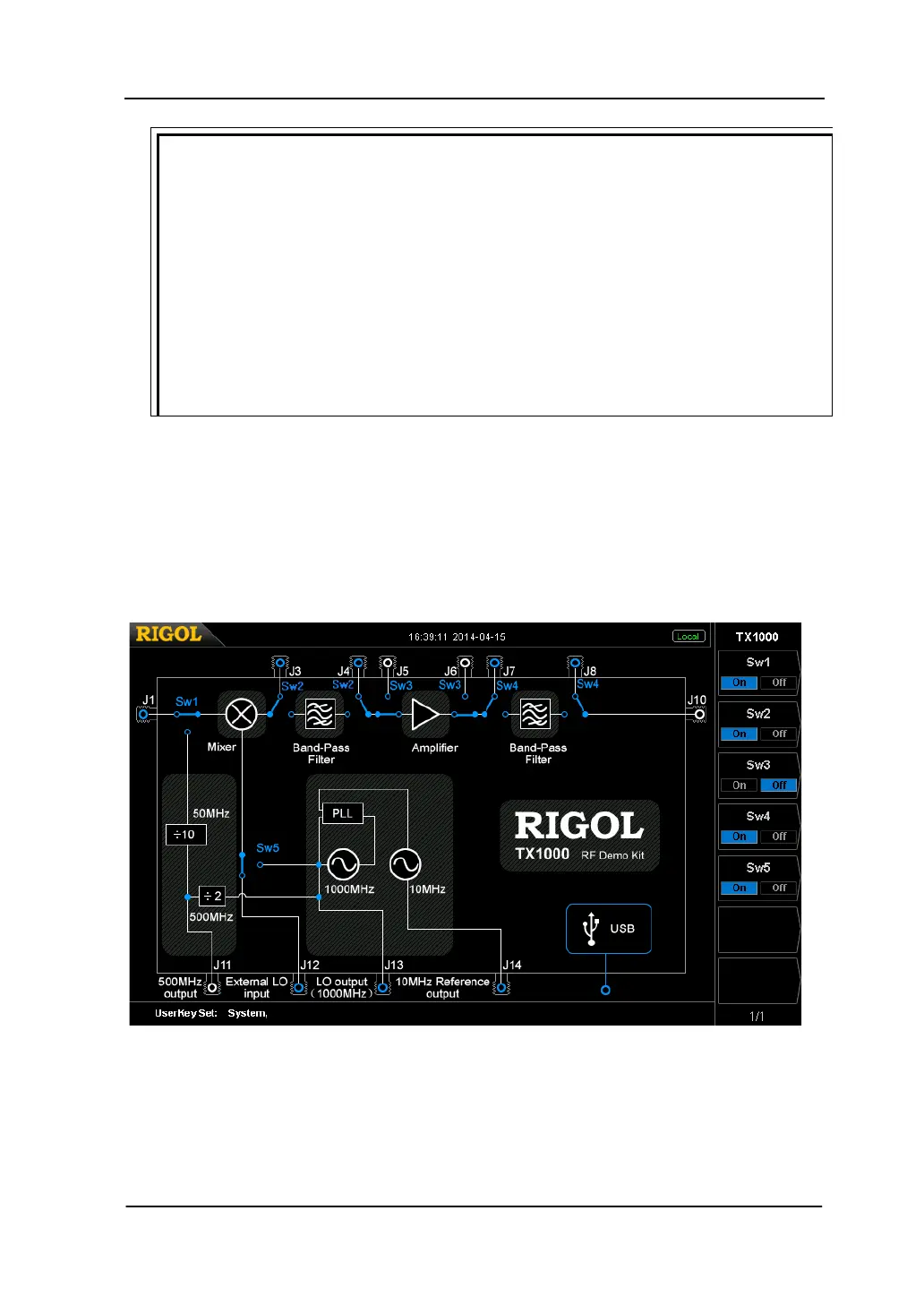

Figure 2-31 TX1000 control panel
Note: This function is available only when the analyzer is connected with the
TX1000 option. For the detailed application of TX1000, please refer to
TX1000_ApplicationNote
.
