Chapter 3 Remote Control RIGOL
User’s Guide for DSA800/E Series
Click “Test” to see if the GPIB communication works normally; if not,
please follow the prompt messages step by step.
5) View the resource
Click
and return back to the main interface of Ultra Sigma.
The resources found are shown under the “RIGOL Online Resource”
catalog.

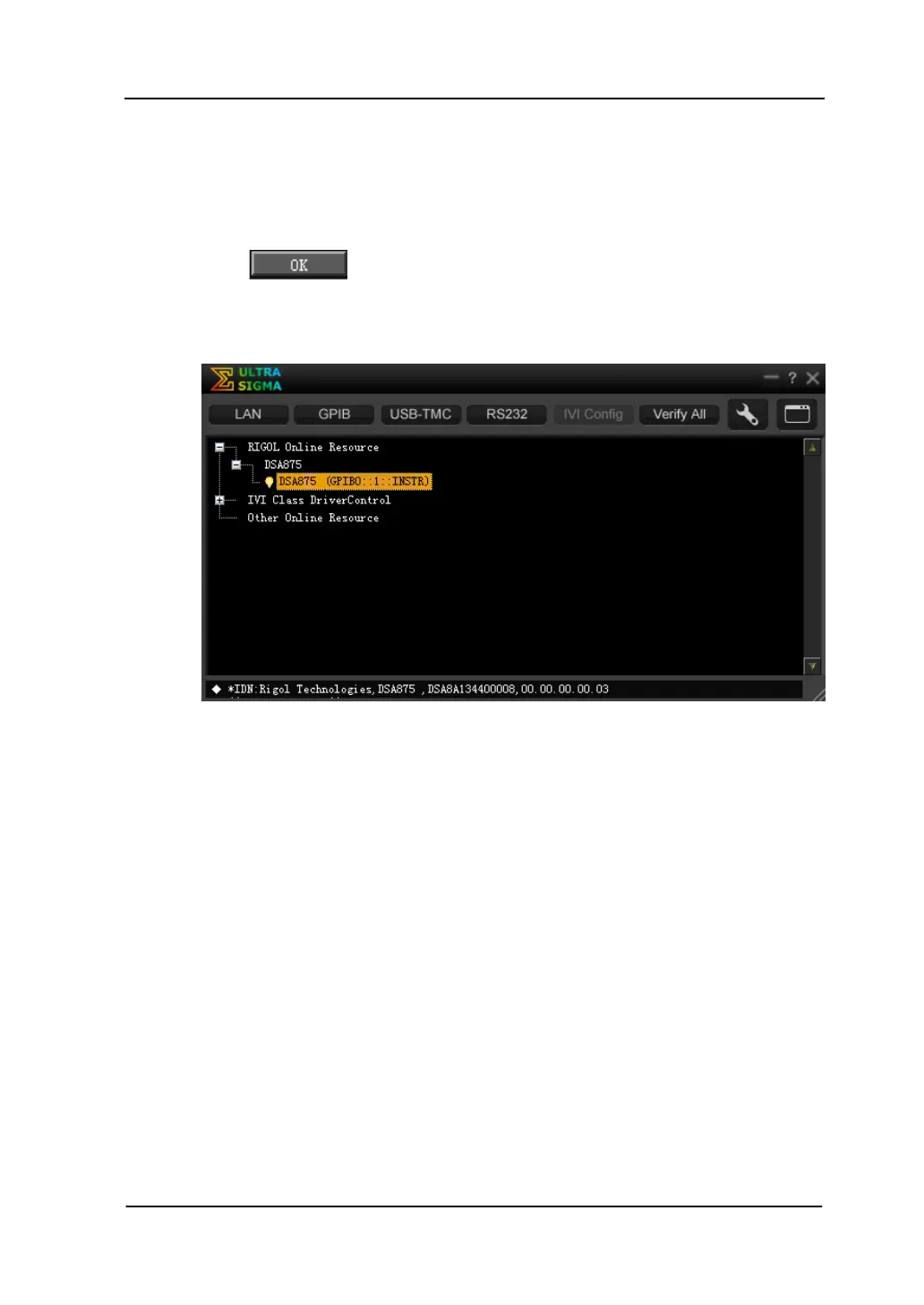

Figure 3-8 View the GPIB Resource
6) Communication test
Right-click the resource name DSA875(GPIB0::1::INSTR) and select
SCPI Panel Control to open the remote control panel (as shown in the
figure below) from which you can write commands and read data.
To Next Page
