Rigol MSO5074 Quick Guide

RIGOL
10 MSO5000 Quick Guide
English

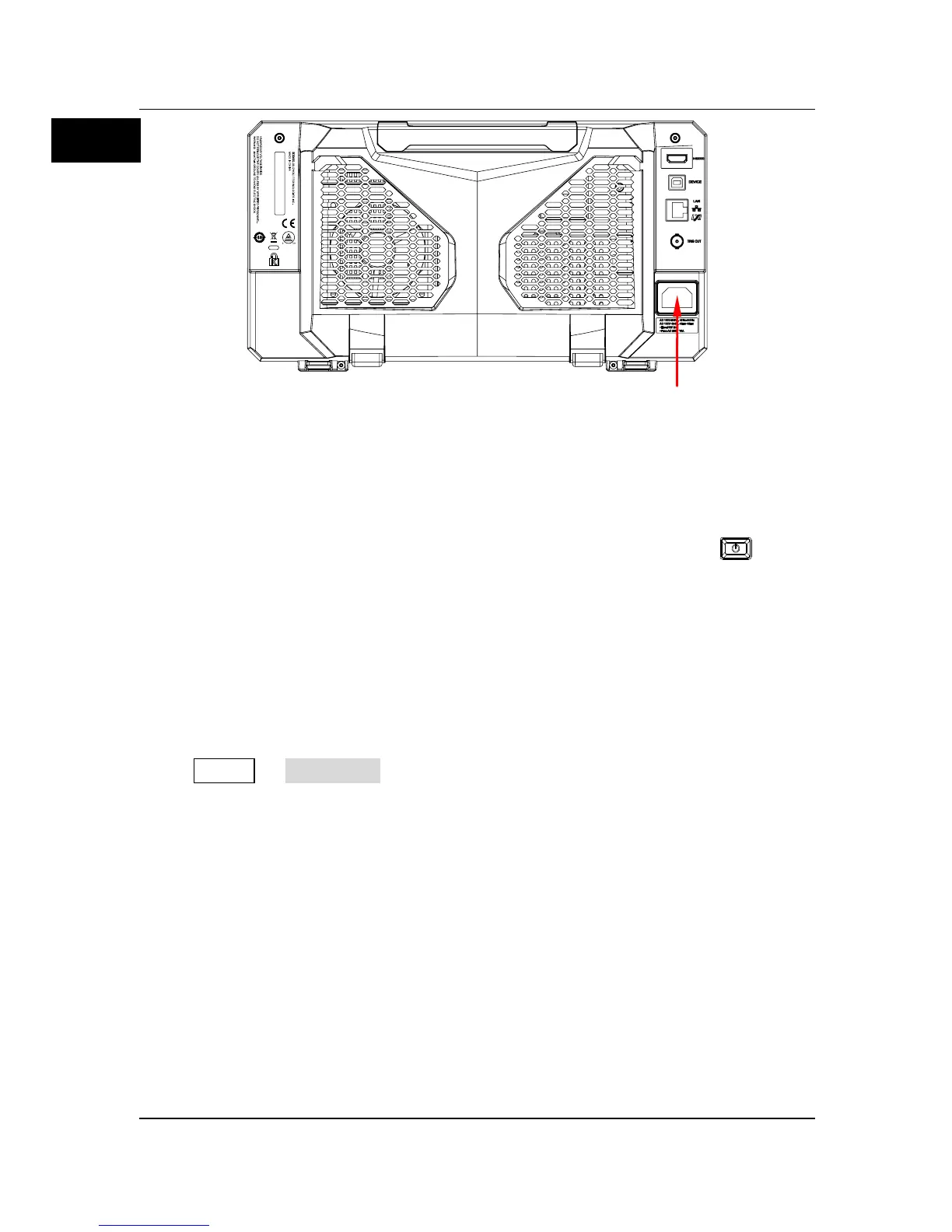

Figure 5 To Connect to AC Power
Turn-on Checkout
When the oscilloscope is connected to power, press the Power key at the
lower-left corner of the front panel to start the oscilloscope. During the start-up
process, the oscilloscope performs a series of self-tests. After the self-test, the
welcome screen is displayed.
To Set the System Language
MSO5000 series oscilloscope supports multiple system languages. You can
press Utility  Language to set the system language. You can also enable
the touch screen to perform the above menu operation.
To Connect the Probe
RIGOL provides the passive probe and the logic probe for MSO5000 series. For
specific probe models, please refer to
MSO5000 Series Datasheet . For detailed
technical information of the probes, please refer to the specified Probe User’s
Guide.
Connect the passive probe:
1. Connect the BNC terminal of the probe to an analog channel input
terminal of the oscilloscope on the front panel, as shown in Figure 6.
Power Cord Connector

Rigol MSO5074 Specifications

General

Bandwidth	70 MHz
Channels	4
Timebase Accuracy	± 2 ppm
Operating Temperature	0 °C to +40 °C
Display	800x480
Waveform Capture Rate	500, 000 wfms/s
Vertical Resolution	8 bits
Interfaces	USB Host, USB Device, LAN, HDMI
Input Impedance	1 MΩ
Trigger Types	Edge, Slope, Pulse, Video, Pattern, Duration, Timeout, Window, Runt
Sample Rate	8 GSa/s
