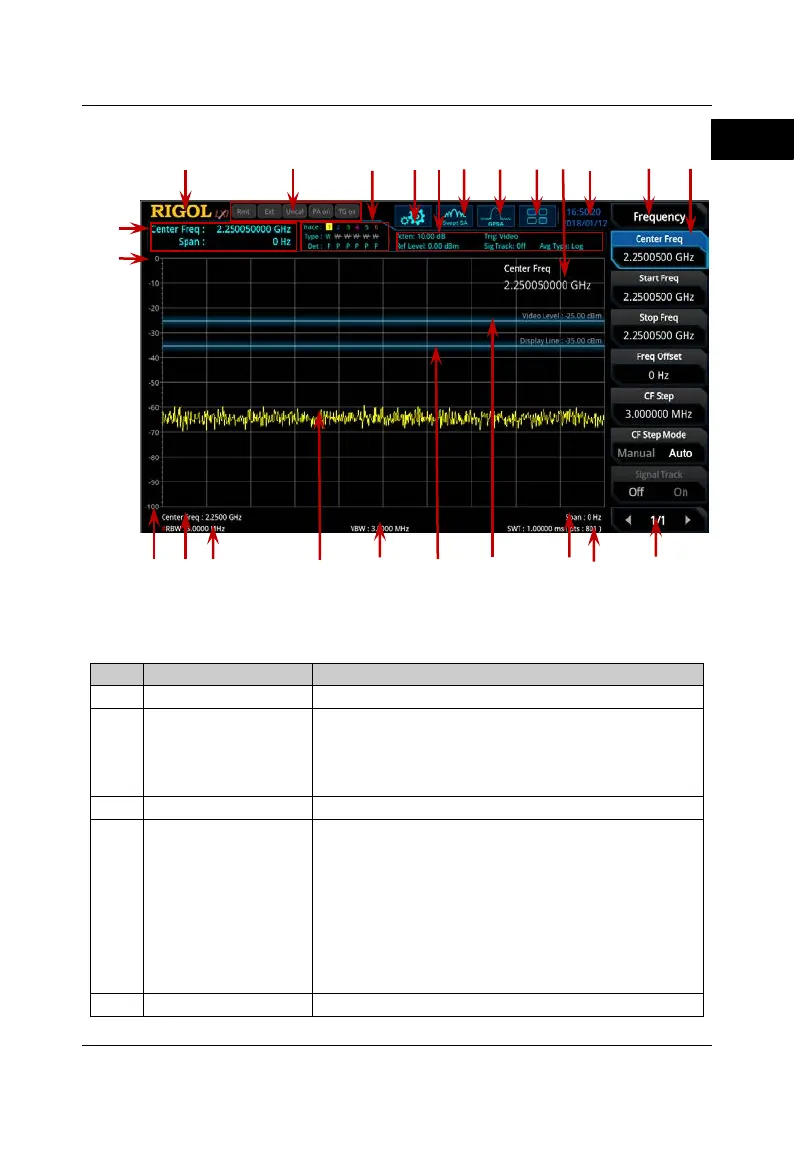

Figure 3 User Interface
Table 3 User Interface
[1]
Icons
No.
Name
Description
1
Reference level
Displays the reference level value.
2
Measurement
result
Displays the current measurement results for
the marker (when no marker exists, the
measurement results display frequency/span
value).
3
RIGOL
Indicates the company logo.
4
System status
Rmt: indicates remote operation.
Ext: indicates the external reference.
Uncal: indicates that the measurement has not
be calibrated.
PA on: indicates that the preamp has been
enabled.
TG on: indicates that the tracking generator
has been enabled.
5
Trace indicator
[1]
Displays information about the trace and the
3 4
5
6 7
8 9
10 11 12 13 14
24 23 22 21 20 19 18 17 16 15
2
1
