To Prepare for Use
To Adjust the Supporting Legs
You can unfold the supporting legs to use them as stands to tilt the instrument
upwards for easier operation and observation. You can also fold the supporting
legs for easier storage or shipment when the instrument is not in use.

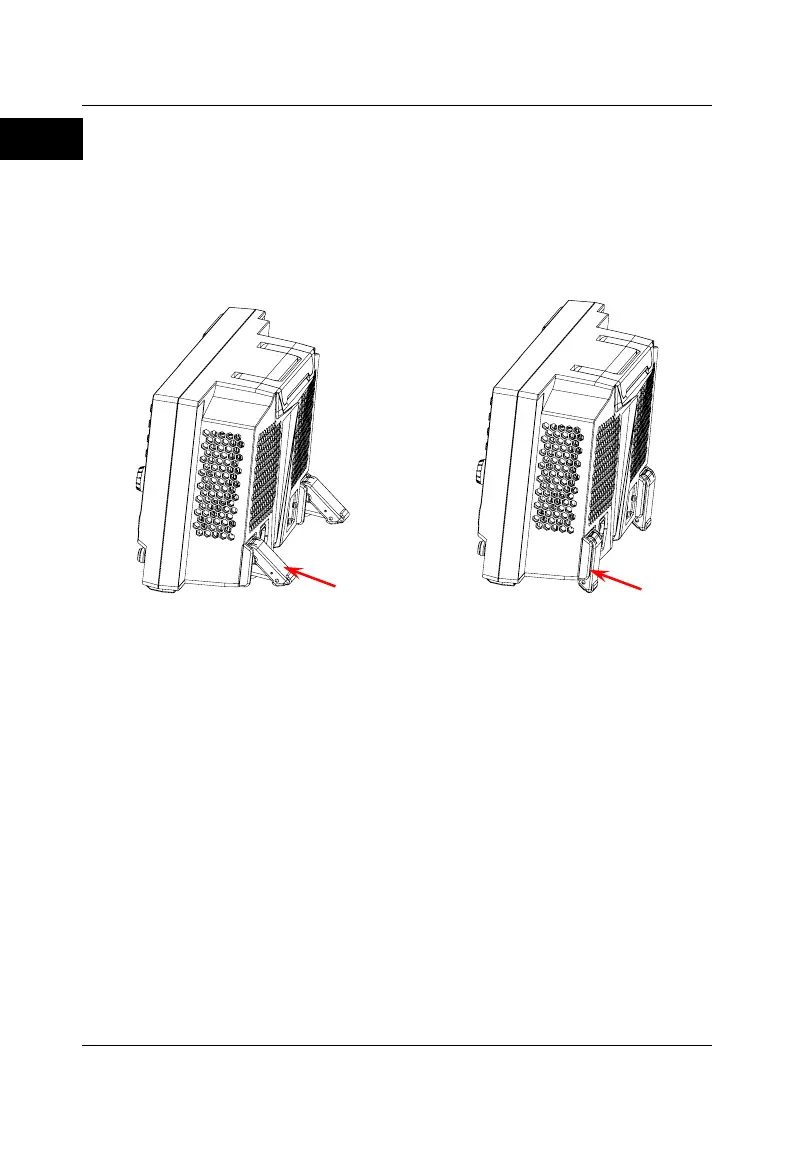

Figure 4 To Adjust the Supporting Legs
To Connect to AC Power
Please use the power cord provided in the accessories to connect the spectrum
analyzer to the AC power source. The AC power supply specification of this
spectrum analyzer is 100-240 V, 45-440 Hz. The power consumption of the
instrument cannot exceed 95 W. When the spectrum analyzer is connected to
the AC power source via the power cord, the instrument automatically adapts
to the voltage range, and you do not need to select the voltage range manually.
To unfold the
supporting legs
To fold the
supporting legs

Rigol RSA3015N Specifications

General

Brand	Rigol
Model	RSA3015N
Category	Measuring Instruments
Language	English
