Parameter Setting
You can enter the desired parameter values by using the numeric keys, the
knob, or arrow keys on the front panel. Also, you can set the parameters by
using the touch screen, the keyboard or the mouse. This section takes an
example (set the center frequency to 800 MHz) to describe six methods of
parameter setting.
1. Use the numeric keys
1) Press FREQ  Center Freq;
2) Input 800 using the numeric keys;
3) Select the desired unit (MHz) from the pop-up menu.
2. Use the knob
When the parameter is editable, turn the knob clockwise to increase or
counterclockwise to decrease the parameter value at the specified step.
1) Press FREQ  Center Freq;
2) Rotate the knob until the parameter is set to the desired value (800
MHz).

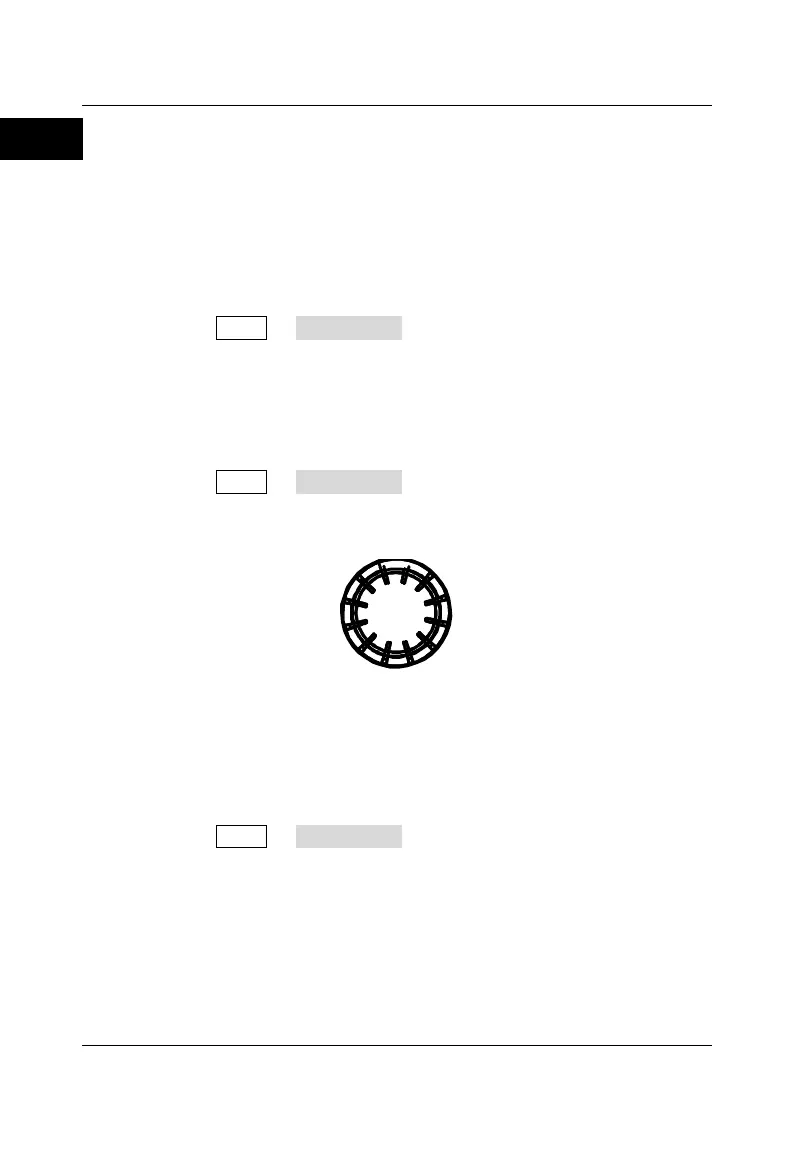

Figure 5 Knob
3. Use the arrow keys
When the parameter is editable, use the arrow keys to increase or
decrease the parameter value at the specific step. Note that the step sizes
for the Up/Down arrow key and the Left/Right arrow key are different.
1) Press FREQ  Center Freq;
2) Press the Up/Down arrow key or the Left/Right arrow key until the
parameter is set to the desired value (800 MHz).
