RSA3000 Quick Guide 17

English

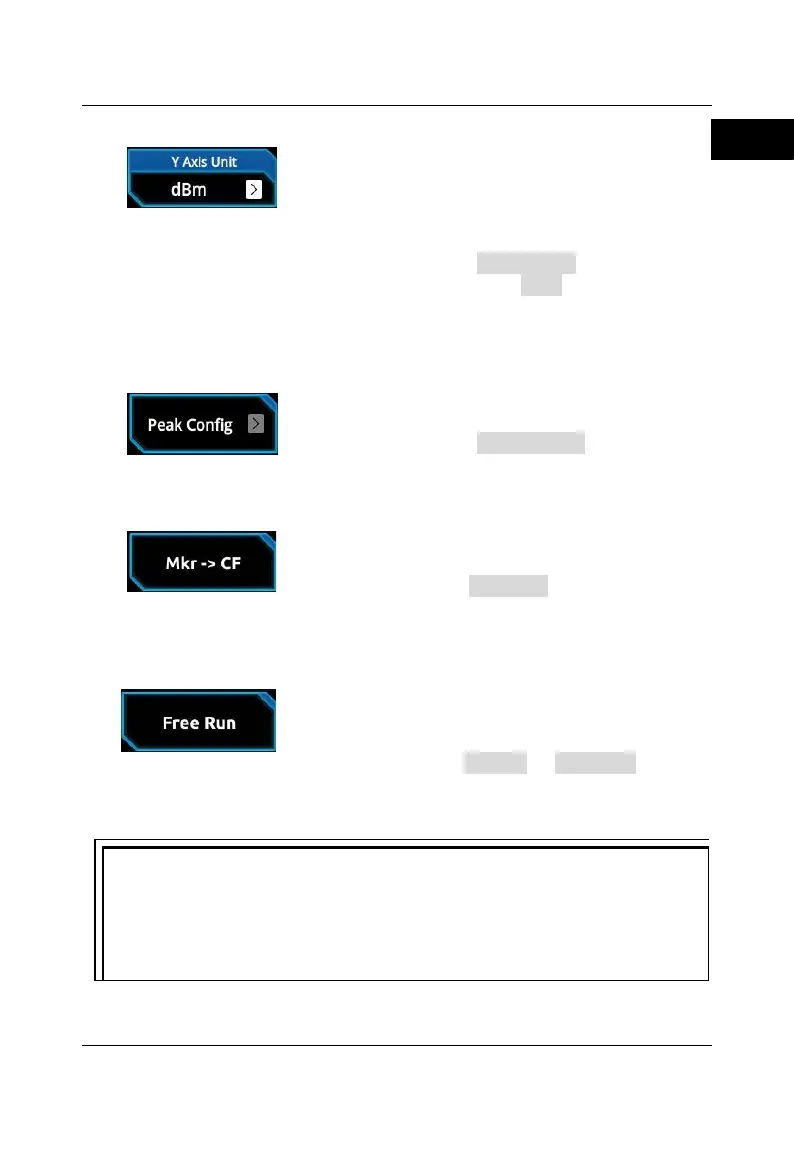

3. Enter Lower-level Menu (with parameter)

4. Enter Lower-level Menu (without parameter)

5. Direct Execution

6. State Selection

Tip:

The above menu operations can be executed by touch gestures or clicking

with the externally connected mouse. Also, you can connect to the

keyboard and use the shortcut keys to perform the above menu

operations. For the matching relations between the front panel keys and

the keyboard shortcut keys, refer to Table 4.

Press the corresponding menu key to enter the

lower-level menu and change the currently

selected option. The parameter type in the

upper-level menu will be changed when you

return to the upper-level menu again.

For example, press Y Axis Unit to enter the

lower-level menu. Select dBm and then

automatically return to the previous menu. Then,

the unit of Y axis will be changed to dBm.

Press the corresponding menu key to enter the

lower-level menu.

For example, press Peak Config to enter the

lower-level menu directly.

Press the key to execute the corresponding

function.

For example, press Mkr->CF to set the center

frequency of the analyzer to the frequency of

the current marker.

Press the corresponding menu key and modify

the parameters, and then go back to the

previous menu.

For example, press Source  Free Run to

select free trigger. The analyzer is in Free Run

state at present.
