Touch Screen Operation Rule
RSA3000 has a 10.1-inch capacitive multi-touch screen that supports touch
gestures.
1. When operating on the menus other than the Marker menu:
Tap the trace window, then slide left and right to modify the center
frequency; slide up and down to modify the reference level.
Stretch two fingers horizontally in the trace window to decrease the
span, and pinch the fingers horizontally to increase the span. Stretch
two fingers in the vertical direction to decrease the Y-axis scale, and
pinch the fingers vertically to increase the Y-axis scale.
2. When operating on the Marker menu:
In the empty space of the screen trace region, press and hold the
region to add one new marker.
Tap and hold one marker to drag the marker.

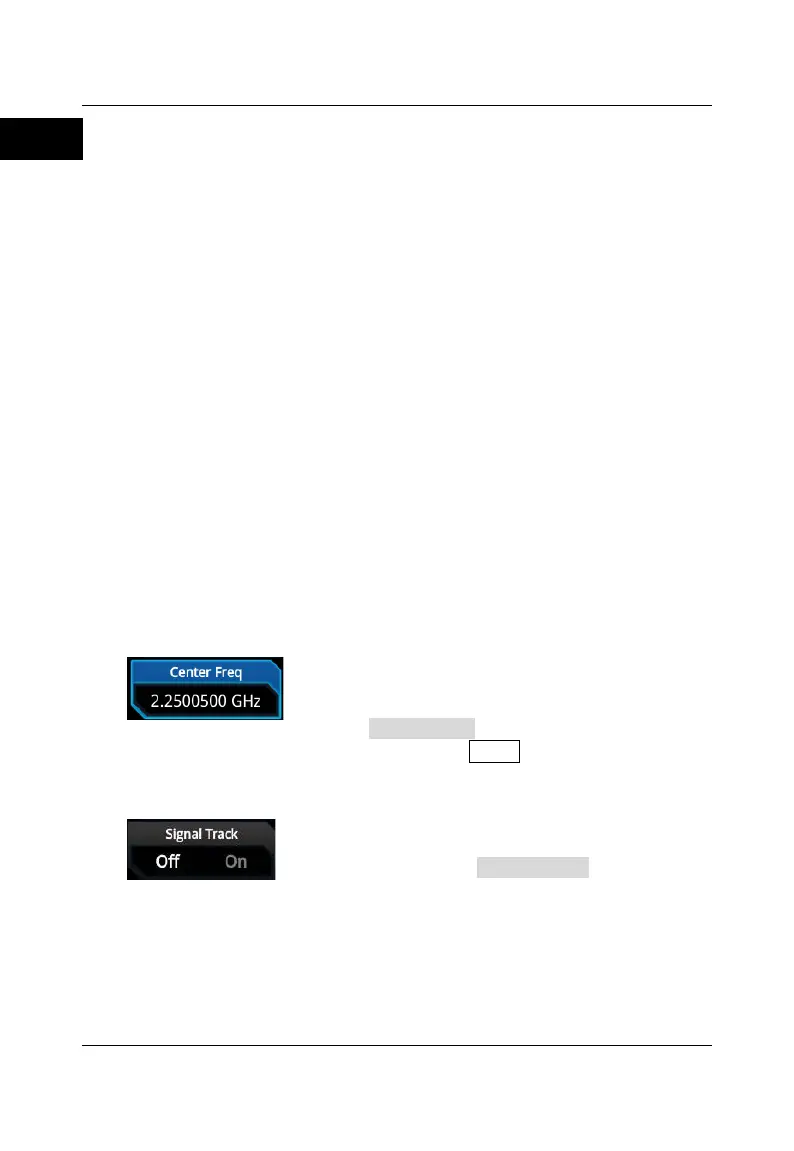

Menu Operation
There are 6 types of menus according to their operation modes. Each type of
menu and its operation method are introduced below.
1. Parameter Input
2. State Switching
Select the menu and use the numeric keys to
modify the value directly.
For example, to modify center frequency, first
select Center Freq, and then input the desired
value. Then, press Enter to complete parameter
Press the corresponding menu key to switch
between the sub-options.
For example, press Signal Track, and then you
can switch between "On" and "Off" to enable or
disable the signal tracking function.
To Next Page
